Electrical Components Location: Location

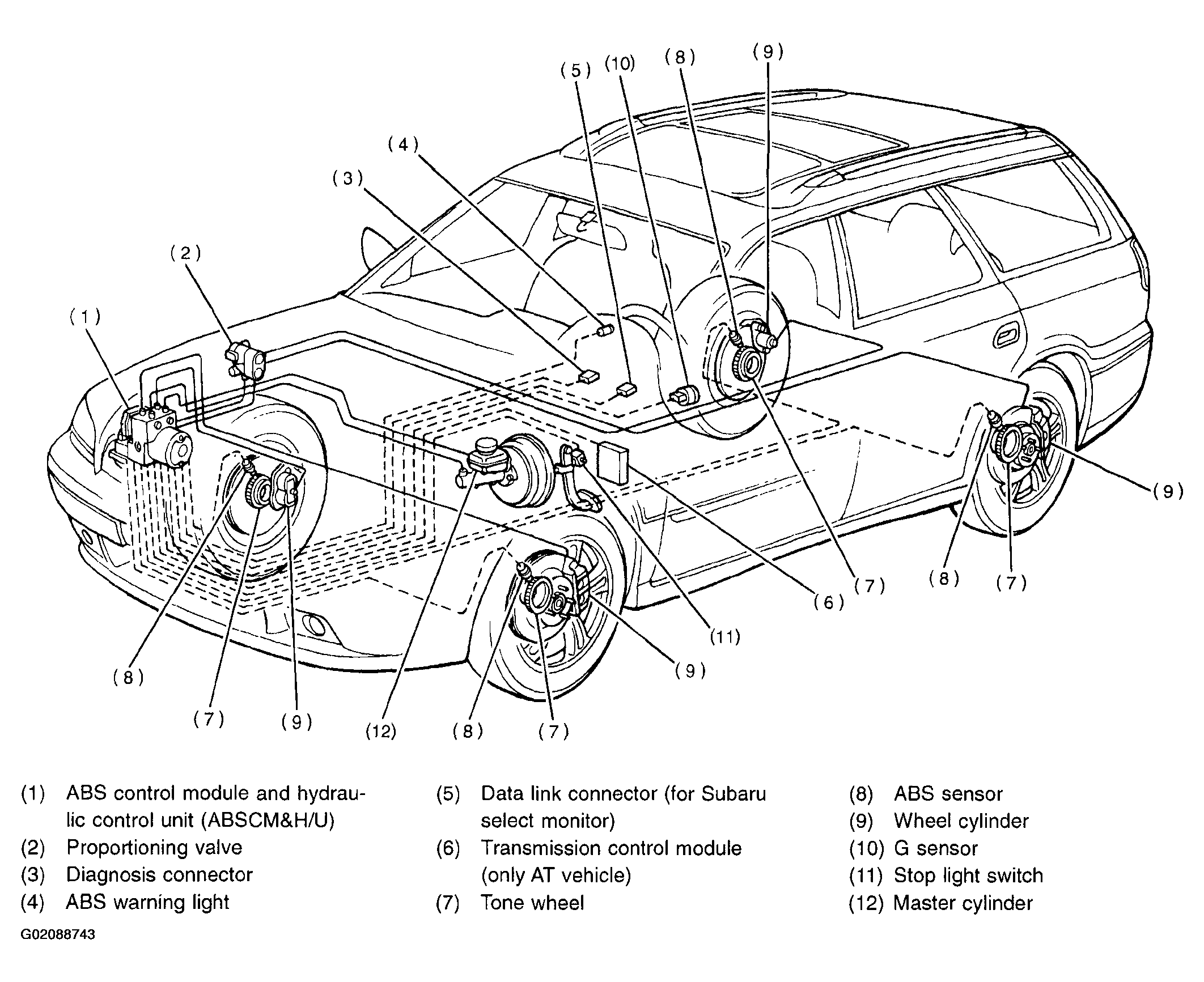

Fig 1: Electrical Components Location Chart (1 Of 2)
G02088743

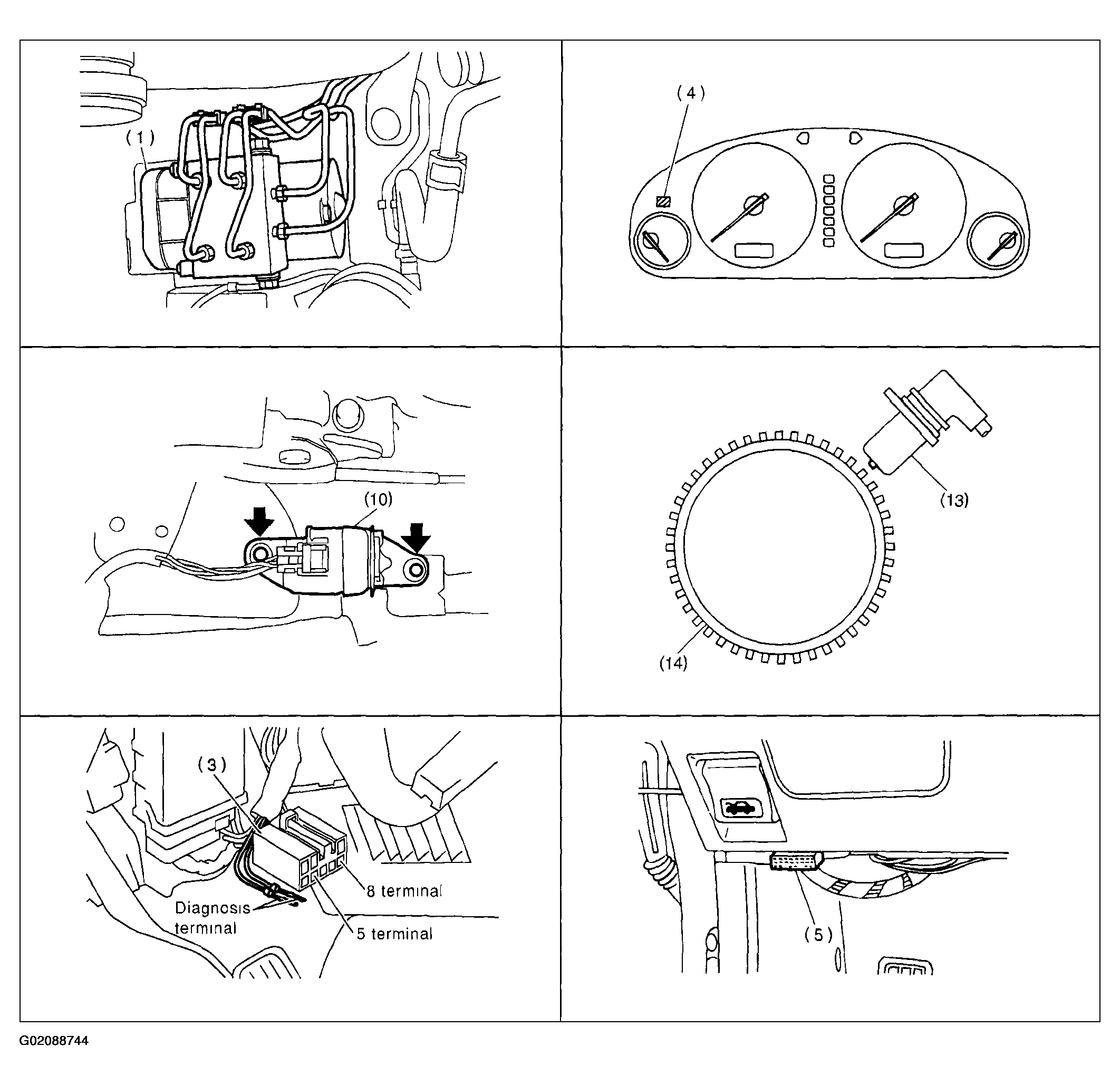

Fig 2: Electrical Components Location Chart (2 Of 2)
G02088744
