Trouble Code 74 Pressure Sensor 2 Offset Is Too Big (Secondary Pressure Sensor)
>>
Diagnostic Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Chart

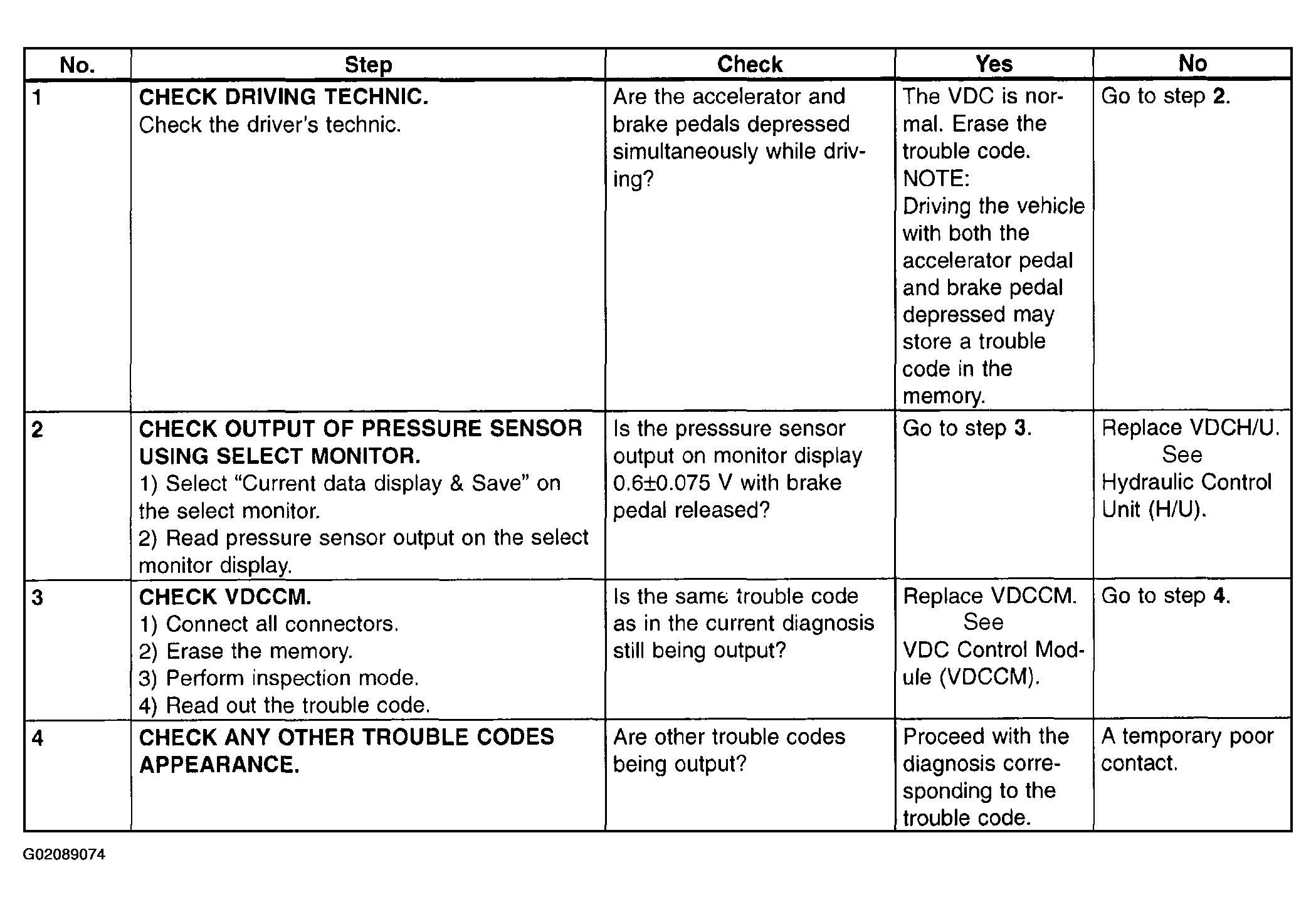

Fig 1: Diagnostic Chart - Trouble Code 74 - With Select Monitor (Pressure Sensor 1 or 2 Offset Is Too Big)
