Lateral G Sensor Signal

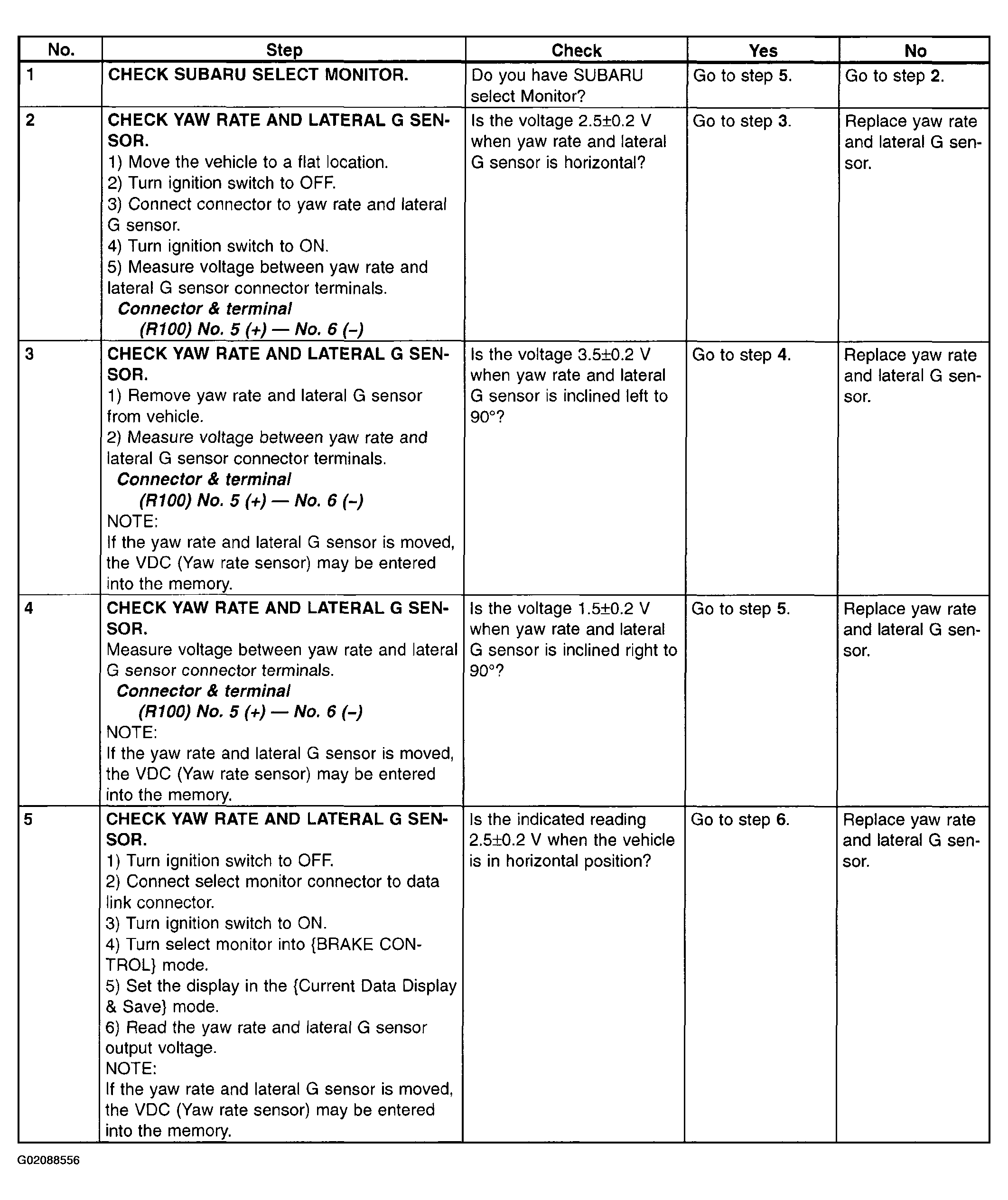

Fig 1: Lateral G Sensor Signal Test Chart (1 Of 2)
G02088556

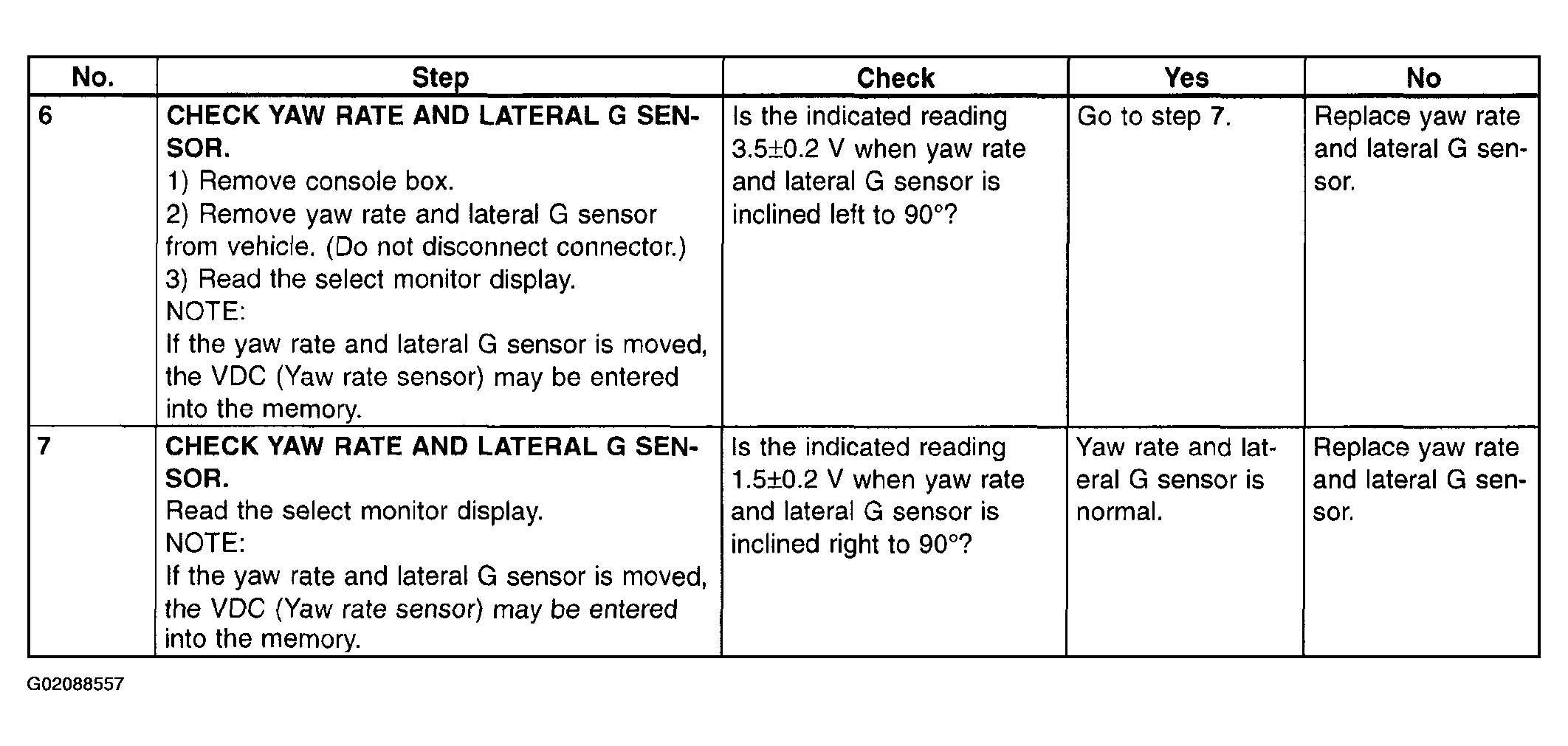

Fig 2: Lateral G Sensor Signal Test Chart (2 Of 2)
G02088557
