Intake Manifold: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Release fuel pressure, see RELEASING OF FUEL PRESSURE , Fuel.
Open the fuel flap lid, and remove the fuel filler cap.
Disconnect the ground cable from battery.

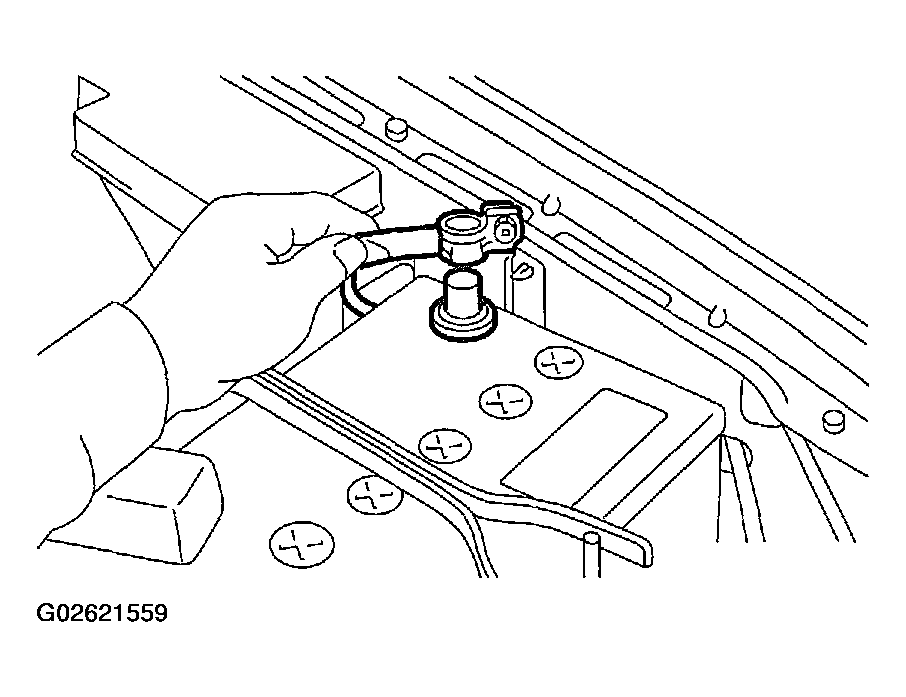

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake duct and air cleaner case. See REMOVAL , Air Intake Duct and REMOVAL , Air Cleaner Case.

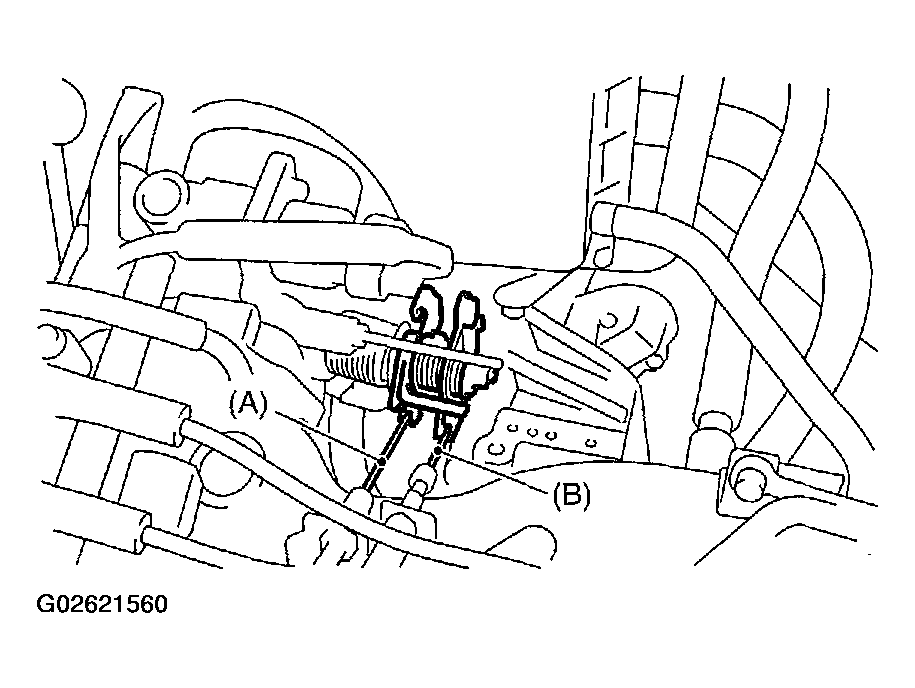

Disconnect the accelerator cable (A).
Disconnect the cruise control cable (B), (vehicles with cruise control).

Fig 2: Disconnect Accelerator Cable & Cruise Control Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the power steering pump and reservoir tank from bracket.
1. Remove the resonator chamber, see REMOVAL , Resonator Chamber.
2. Remove the front side V-belt. See REMOVAL , V-belt.

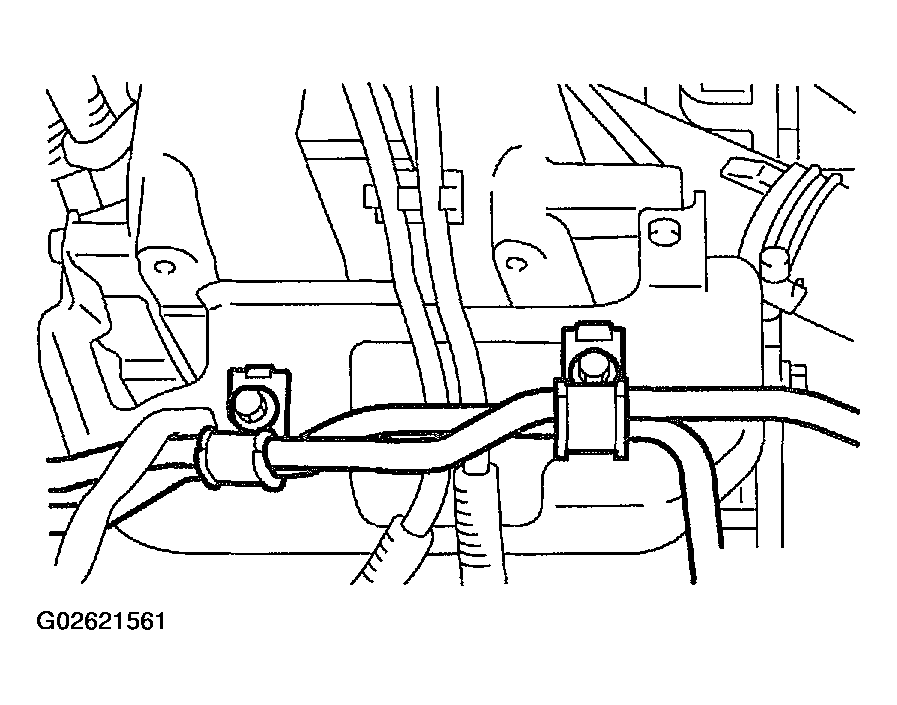

3. Remove the bolts which hold power steering pipes onto the intake manifold protector.
  NOTE: Do not disconnect the power steering hose.

  Fig 3: Removing Bolts From Power Steering Pipes At Intake Manifold Protector
  Courtesy of SUBARU OF AMERICA, INC.

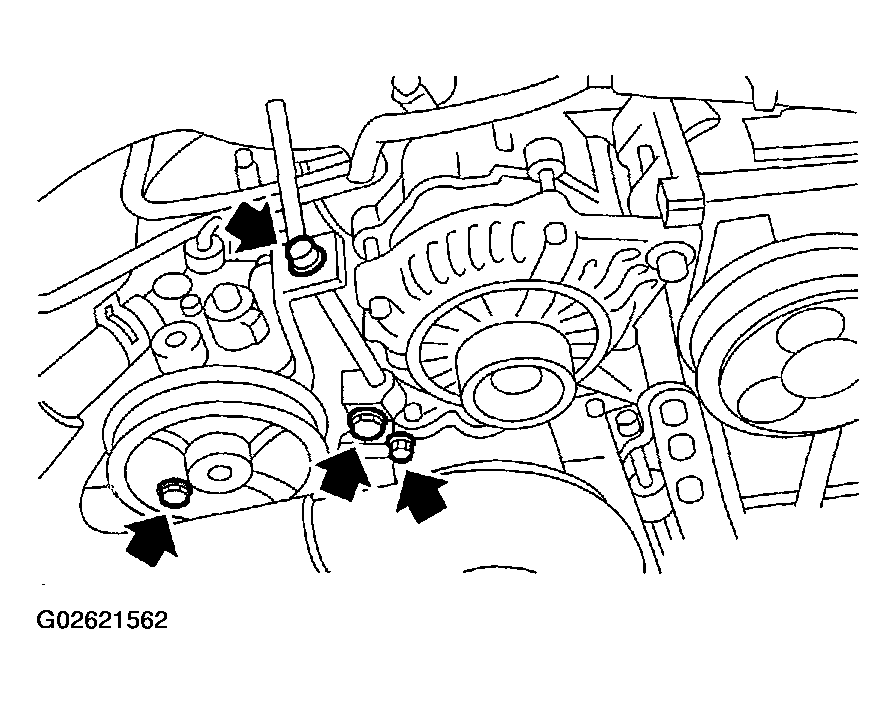

4. Remove the bolts which install power steering pump bracket.

  Fig 4: Removing Bolts From Power Steering Pump Bracket
  Courtesy of SUBARU OF AMERICA, INC.

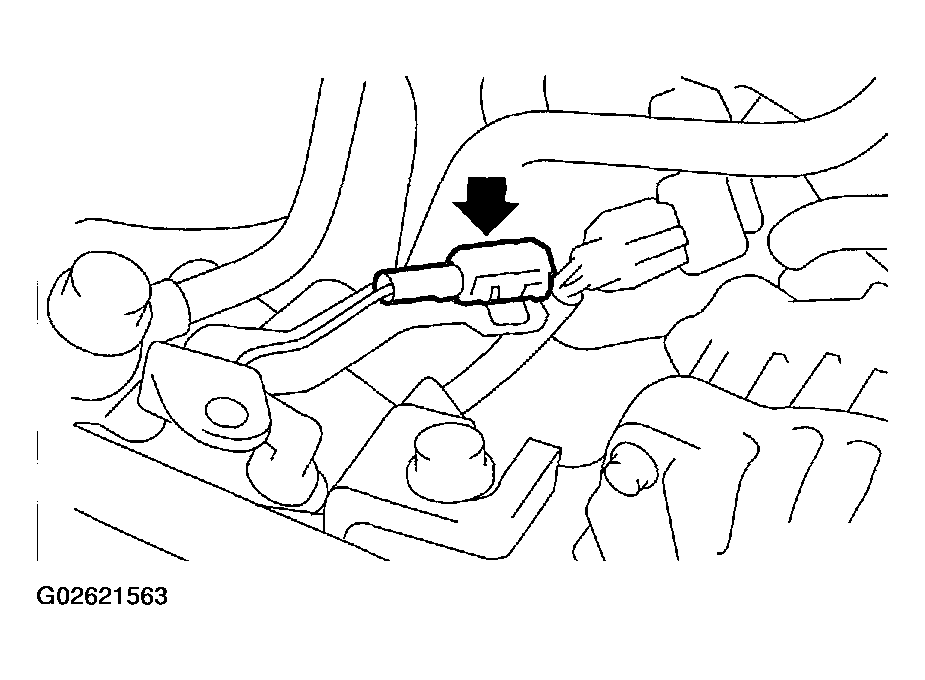

5. Disconnect the connector from the power steering pump switch.

  Fig 5: Disconnecting Connector From Power Steering Pump Switch
  Courtesy of SUBARU OF AMERICA, INC.

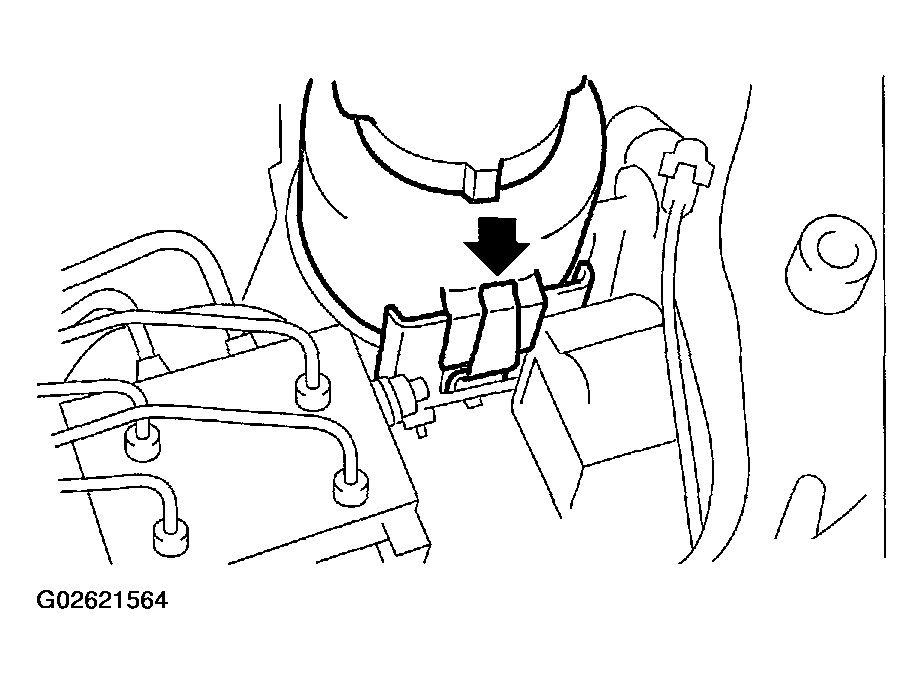

6. Remove the reservoir tank from the bracket by pulling it upwards.

  Fig 6: Removing Reservoir Tank From Bracket By Pulling It Upwards
  Courtesy of SUBARU OF AMERICA, INC.

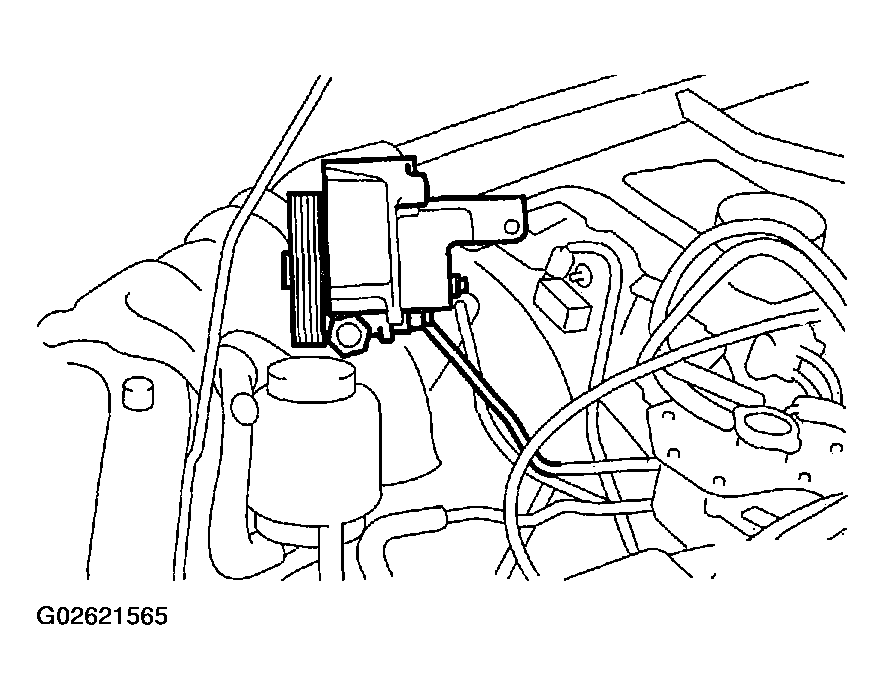

7. Place the power steering pump on the right side wheel apron.

  Fig 7: Placing Power Steering Pump On Right Side Wheel Apron
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect the spark plug cords from the spark plugs.

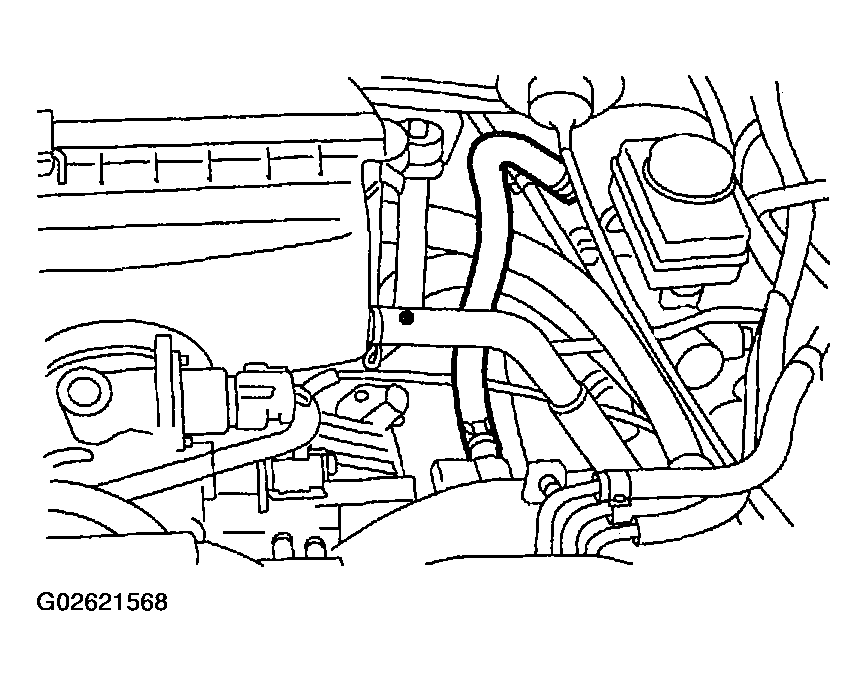

Disconnect the PCV hose from the intake manifold.

Fig 8: Disconnecting PCV Hose From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.

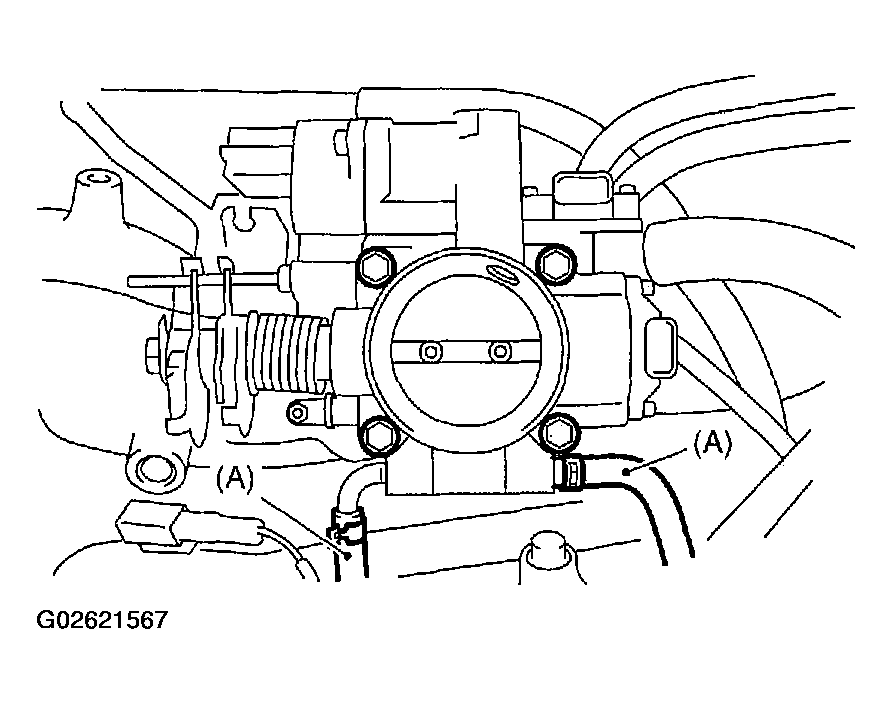

Disconnect the engine coolant hoses (A) from the throttle body.

Fig 9: Disconnecting Engine Coolant Hoses From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.

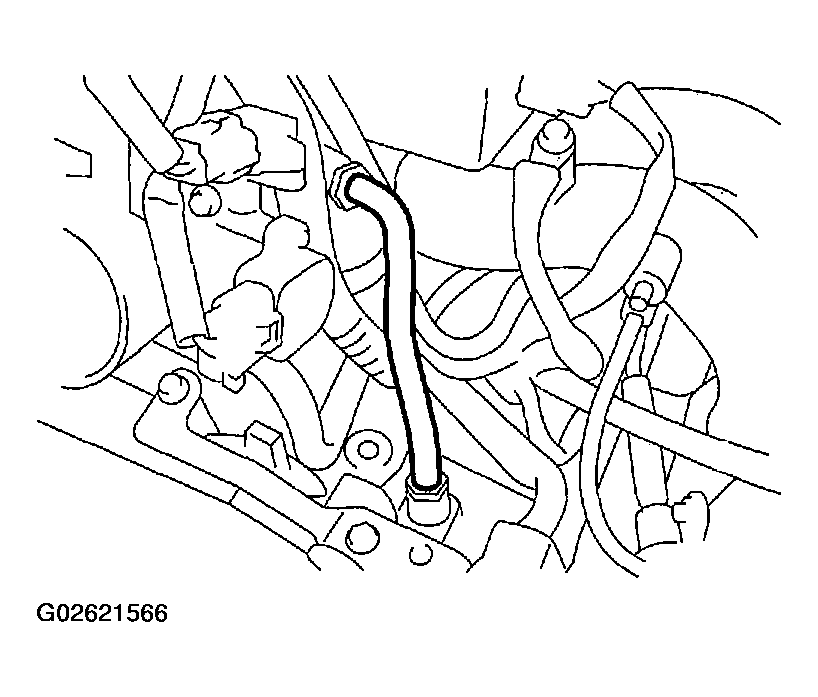

Disconnect the brake booster hose.

Fig 10: Disconnecting Brake Booster Hose
Courtesy of SUBARU OF AMERICA, INC.

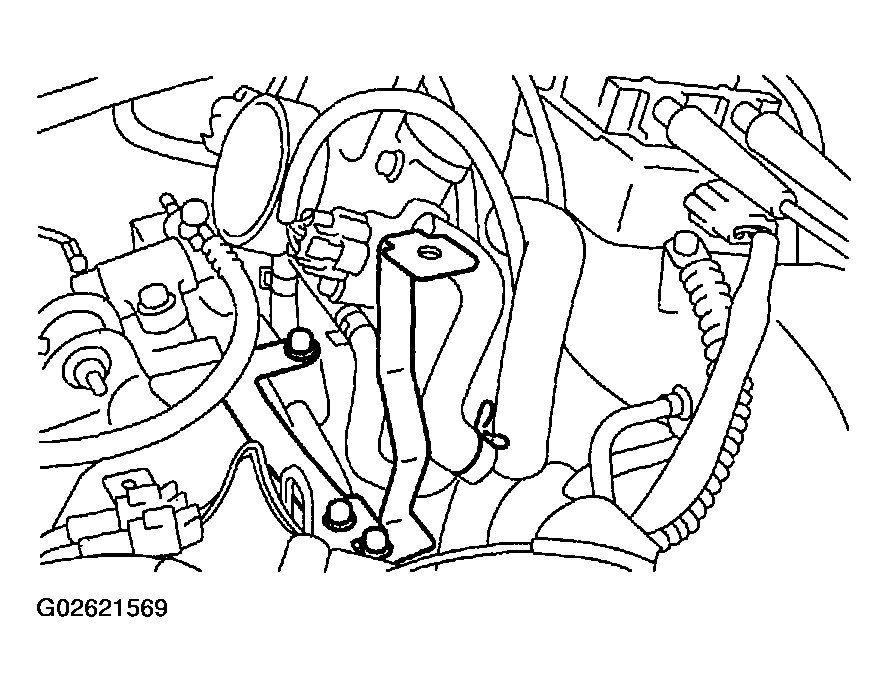

Remove the air cleaner case stay RH and engine harness bracket, and disconnect the engine harness connectors from the bulkhead harness connectors.

Fig 11: Removing Air Cleaner Case RH Side Stay & Engine Harness Bracket
Courtesy of SUBARU OF AMERICA, INC.

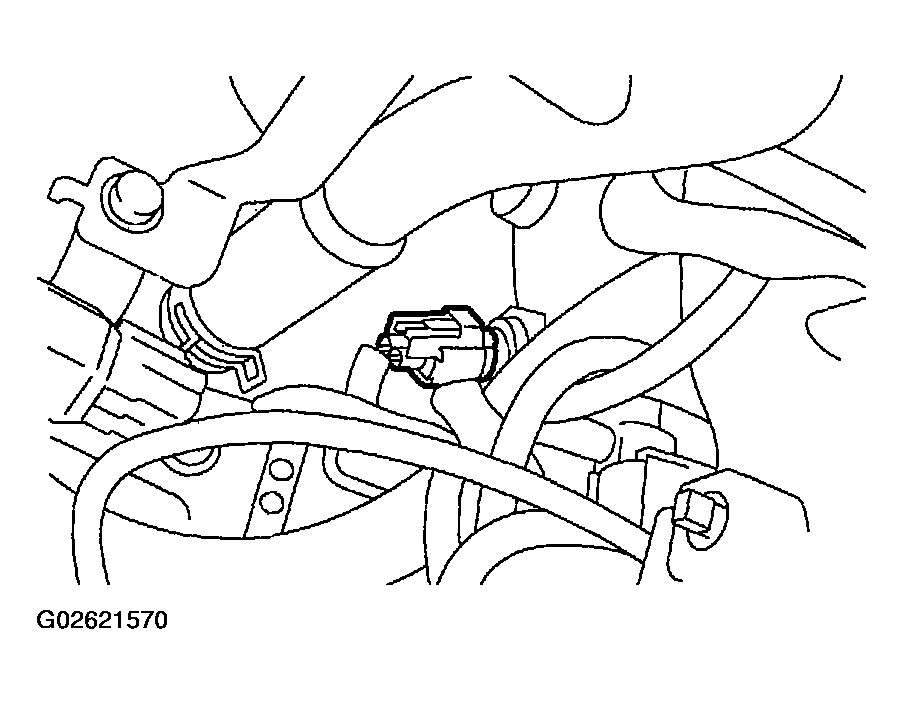

Disconnect the connector from engine coolant temperature sensor.

Fig 12: Disconnecting Connector From Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.

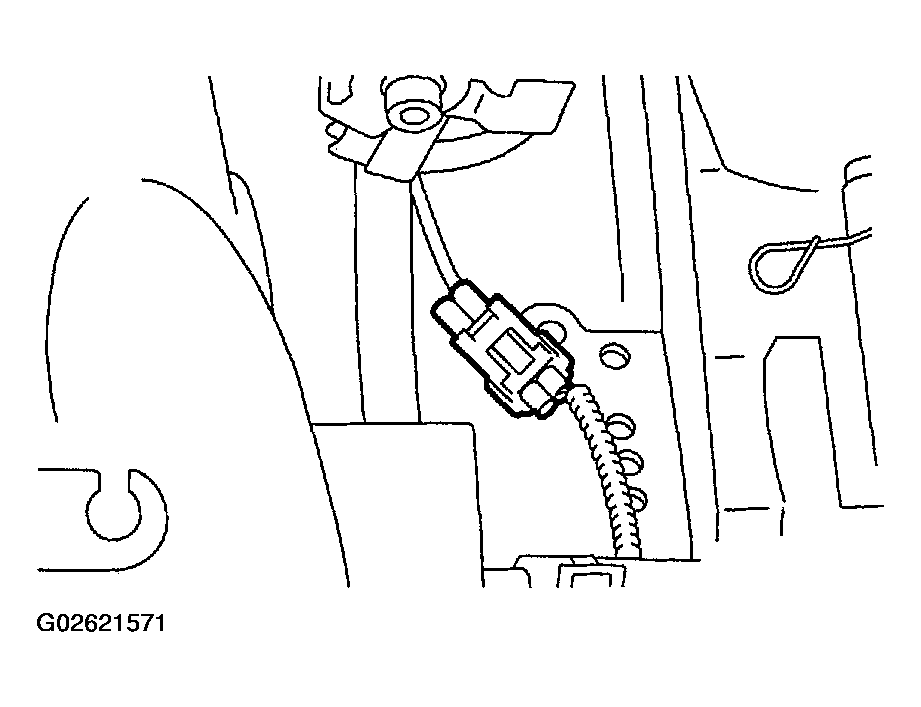

Disconnect the knock sensor connector.

Fig 13: Disconnecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.

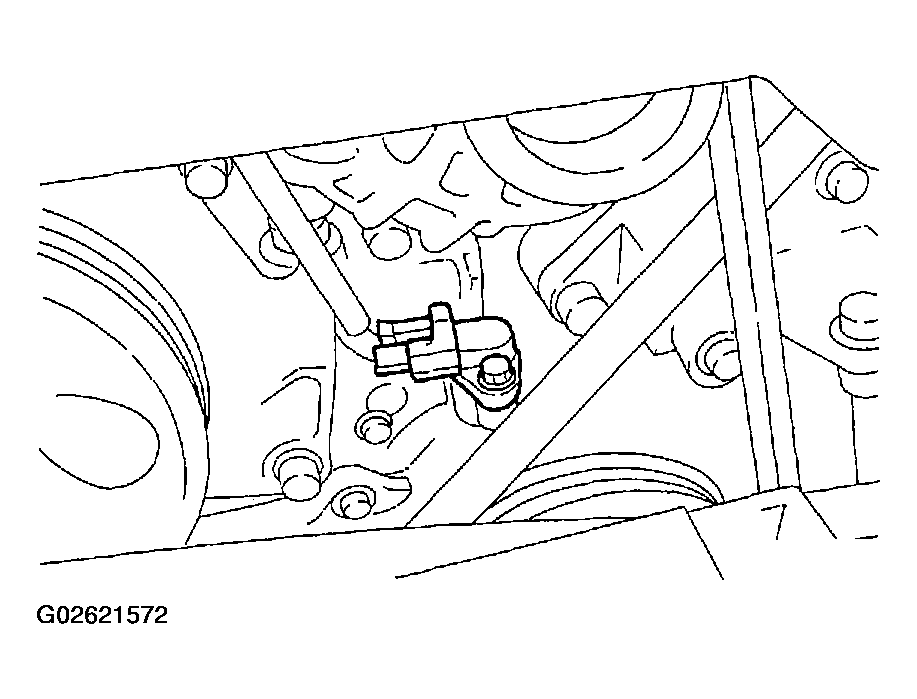

Disconnect the connector from crankshaft position sensor.

Fig 14: Disconnecting Connector From Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

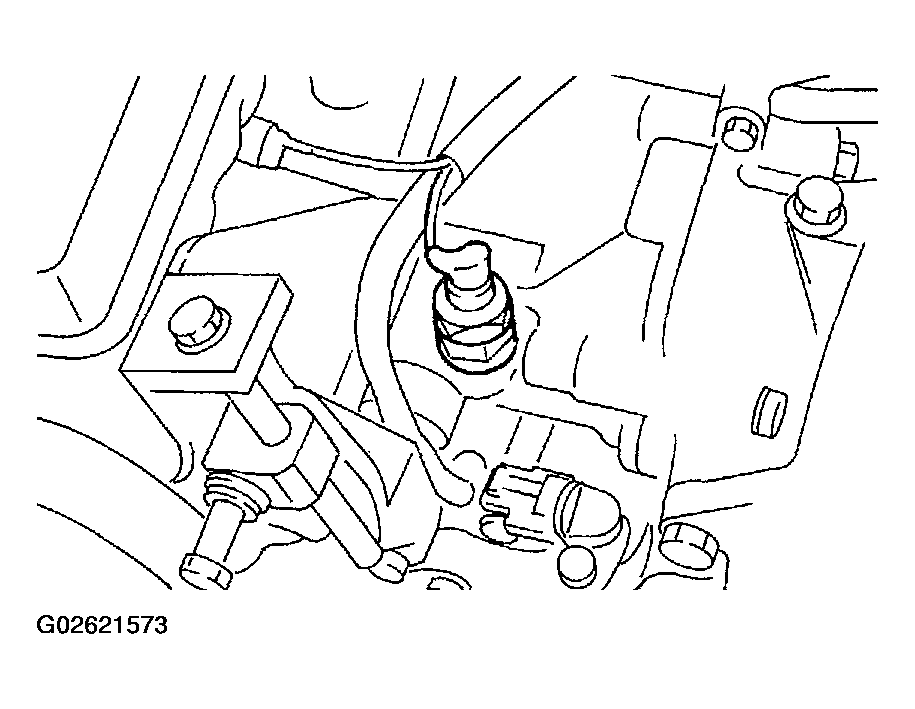

Disconnect the connector from oil pressure switch.

Fig 15: Disconnecting Connector From Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.

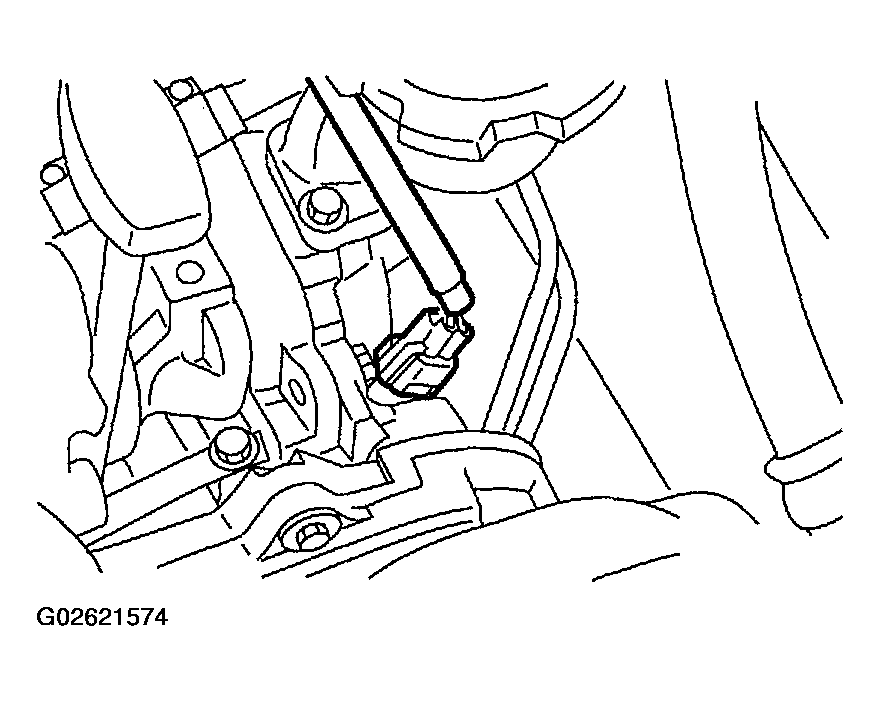

Disconnect connector from camshaft position sensor.

Fig 16: Disconnecting Connector From Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

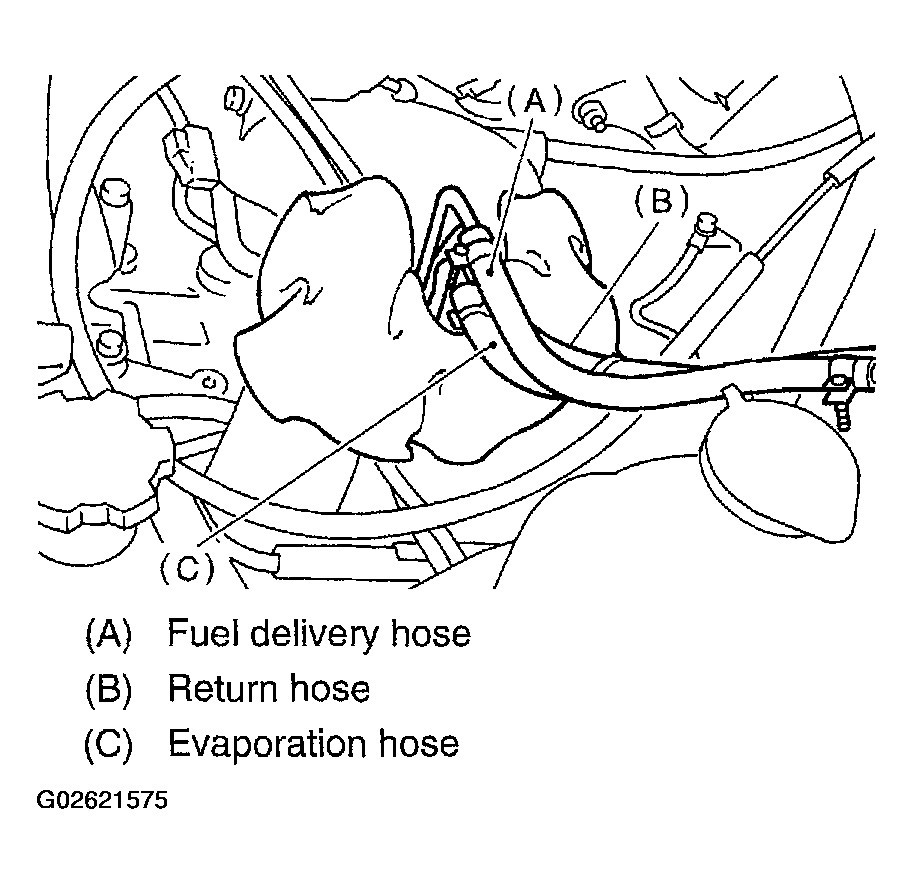

Disconnect the fuel hoses from the fuel pipes.
WARNING:
- Do not spill fuel.
- Catch fuel from hoses in a container or cloth.
Fig 17: Disconnecting Fuel Hoses From Fuel Pipes
Courtesy of SUBARU OF AMERICA, INC.

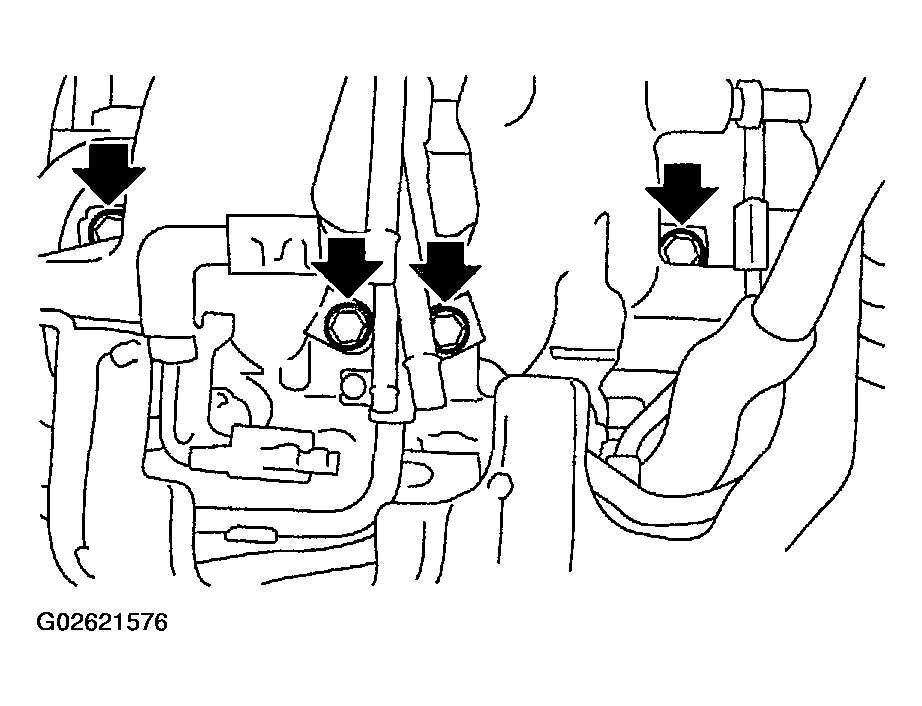

Remove the bolts which hold intake manifold onto the cylinder heads.

Fig 18: Removing Bolts From Intake Manifold At Cylinder Heads
Courtesy of SUBARU OF AMERICA, INC.
Remove the intake manifold.
