Combination Switch (Light): Removal

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Remove instrument panel lower cover. Refer to REMOVAL , Instrument Panel Assembly.
  3. Remove screws which secure upper column cover to lower column cover.
    Fig 1: Removing Screws Securing Upper Column Cover To Lower Column Cover
    G02961932Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect connector from combination switch.
  5. Remove screws which secure switch and remove switch.

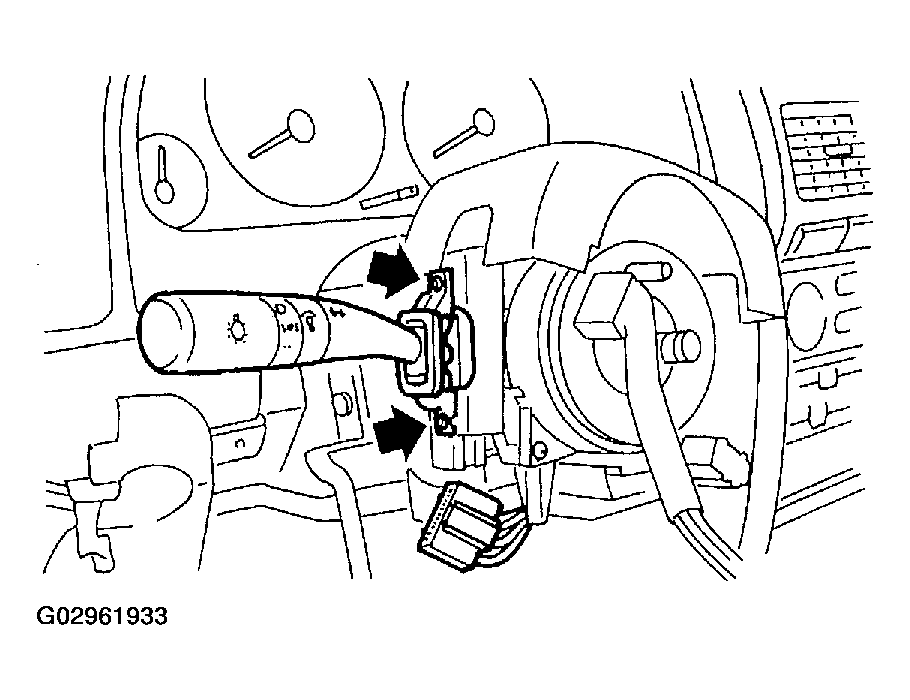

    Fig 2: Removing Screws Securing Switch & Switch
    G02961933Courtesy of SUBARU OF AMERICA, INC.
