Headlight Assembly: Removal

WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect ground cable from battery.
Remove duct (A) (when right side headlight is removed).

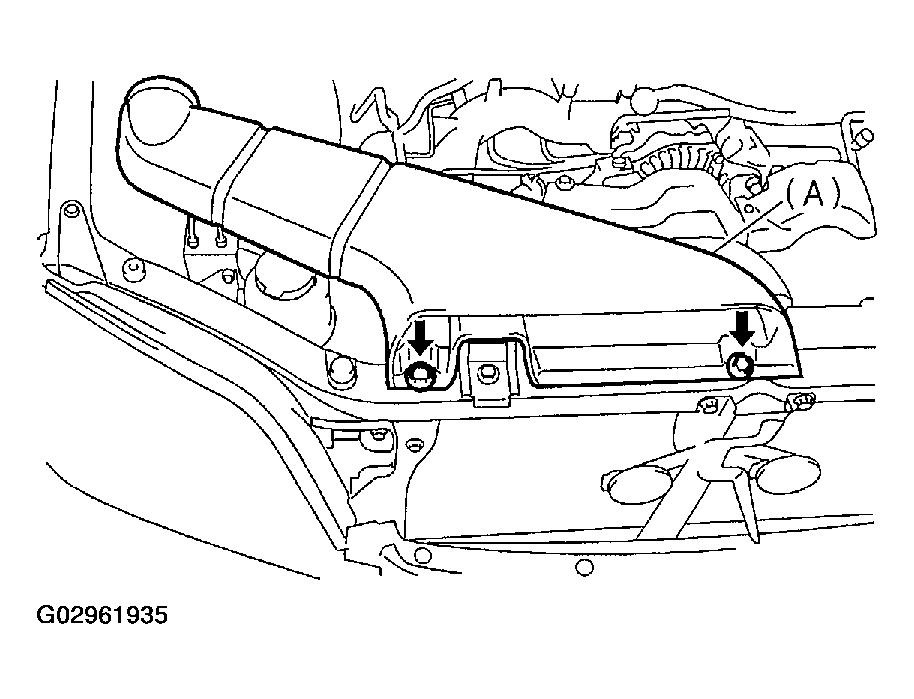

Fig 1: Removing Duct (A)
Courtesy of SUBARU OF AMERICA, INC.
Disconnect headlight bulb connector.

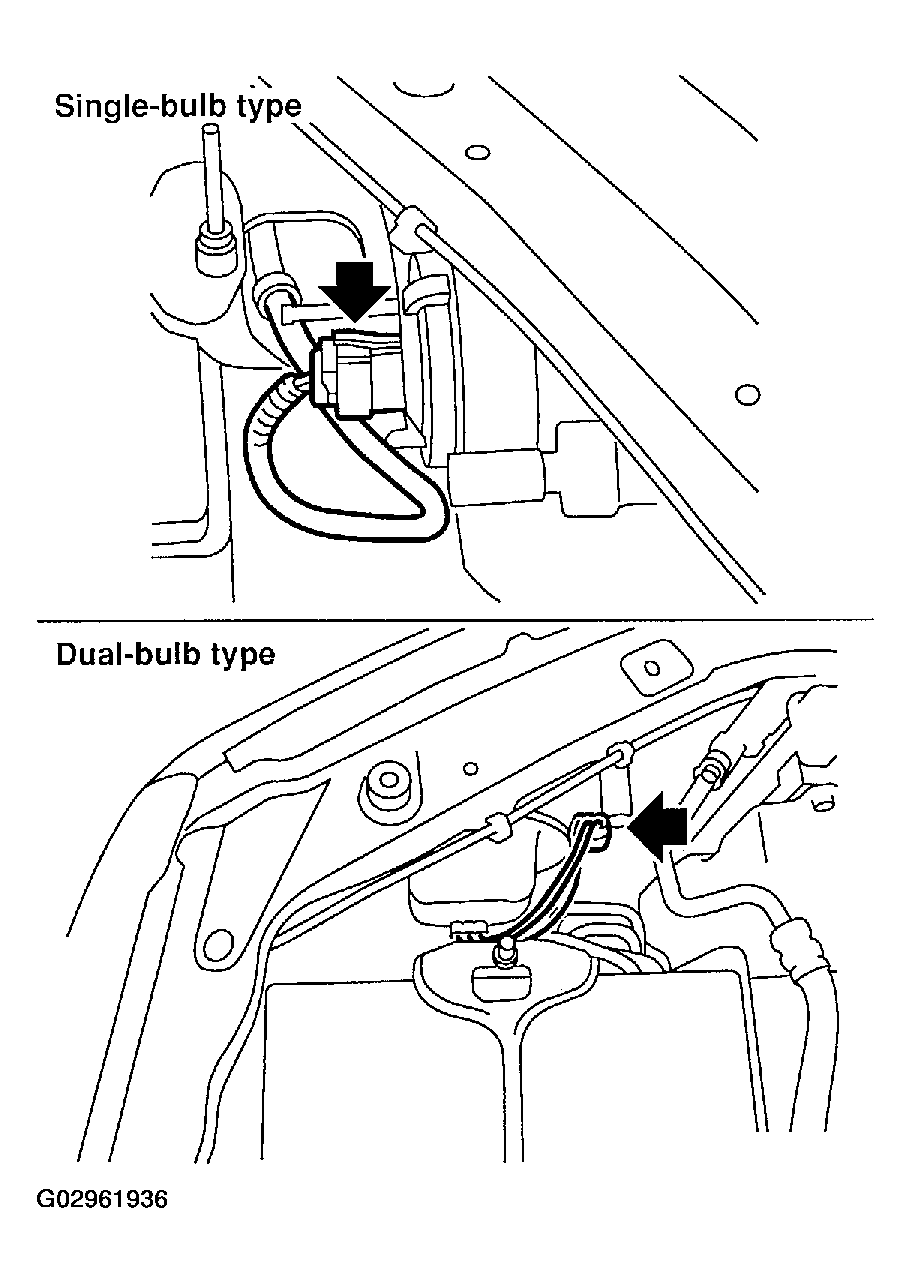

Fig 2: Disconnecting Headlight Bulb Connector
Courtesy of SUBARU OF AMERICA, INC.
Remove three bolts and disconnect connectors, and then detach headlight assembly.

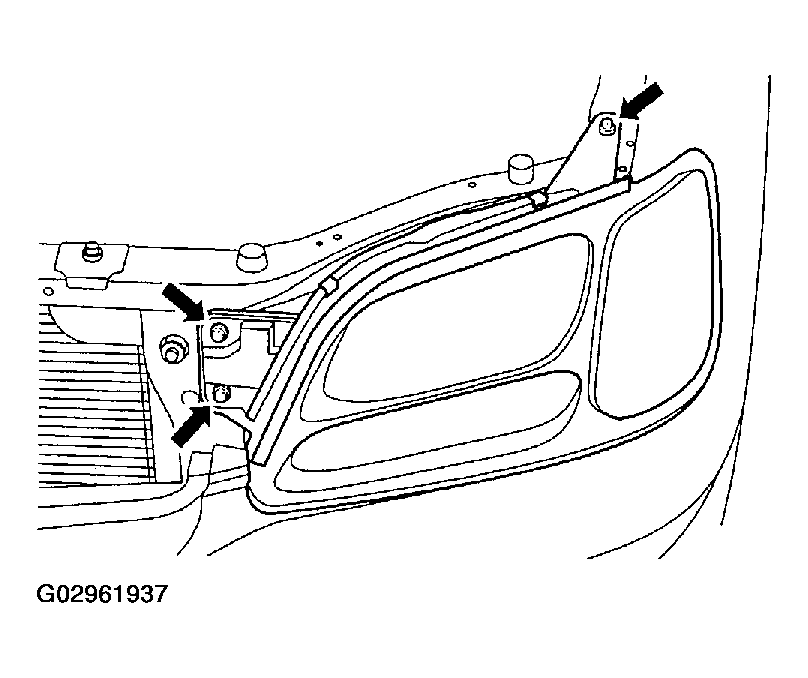

Fig 3: Removing Three Bolts & Disconnecting Connectors

Courtesy of SUBARU OF AMERICA, INC.
