Combination Switch (Light): Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect ground cable from battery.
  2. Remove instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Assembly.>
  3. Remove screws which secure upper column cover to lower column cover.
    Fig 1: Removing Screws Securing Upper Column Cover
    G02872790Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect connector from combination switch.
  5. Remove screws which secure switch and remove switch.

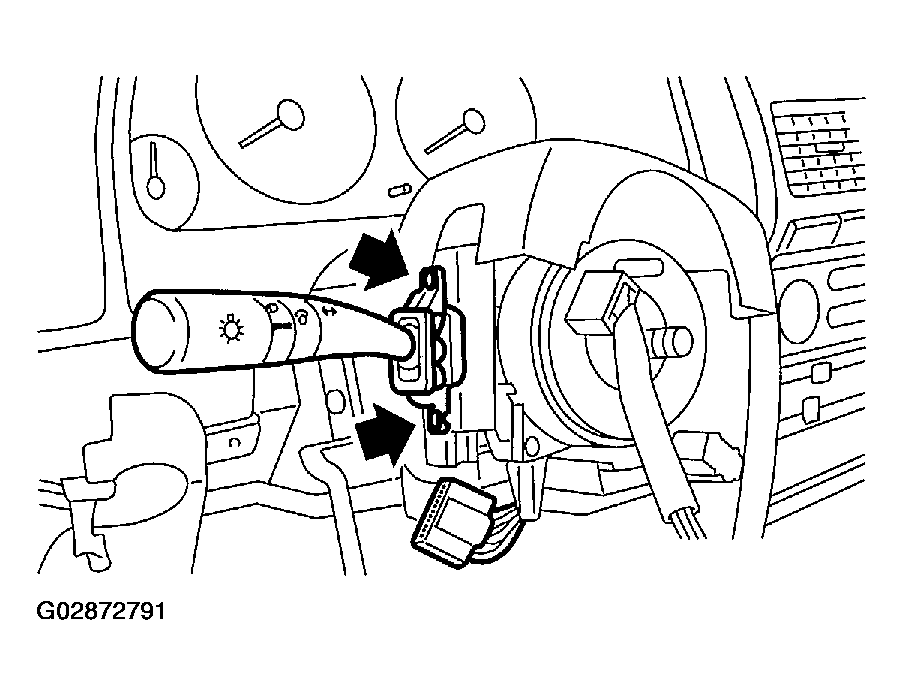

    Fig 2: Removing Screws Securing Switch
    G02872791Courtesy of SUBARU OF AMERICA, INC.
