Headlight Assembly: Removal

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect ground cable from battery.
Remove duct (A) (when right side headlight is removed).

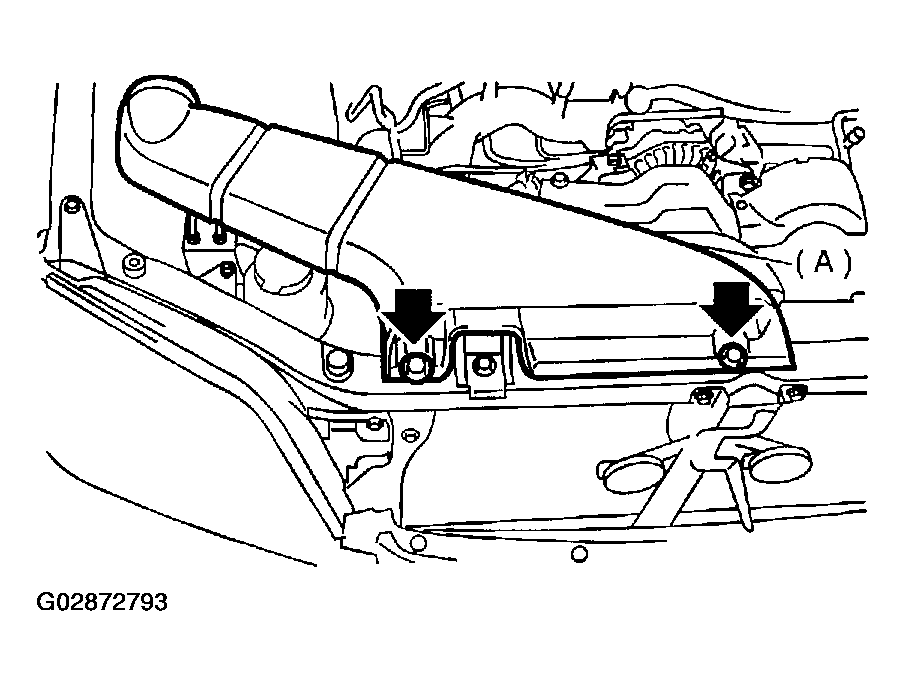

Fig 1: Removing Duct
Courtesy of SUBARU OF AMERICA, INC.
Disconnect headlight bulb connector.

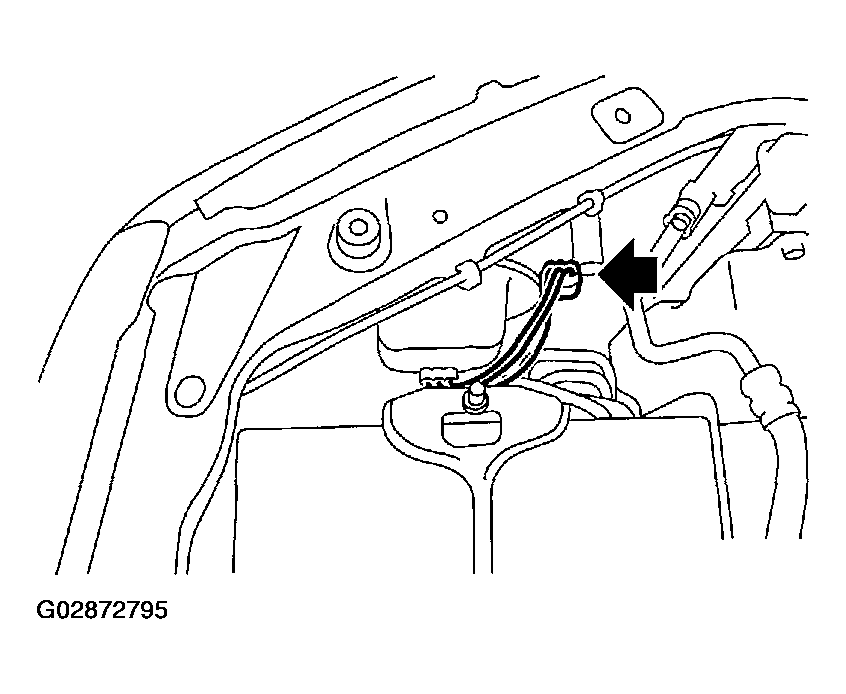

Fig 2: Disconnecting Headlight Bulb Connector (Single-Bulb Type)
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Disconnecting Headlight Bulb Connector (Dual-Bulb Type)
Courtesy of SUBARU OF AMERICA, INC.
Remove three bolts and disconnect connectors, and then detach headlight assembly.

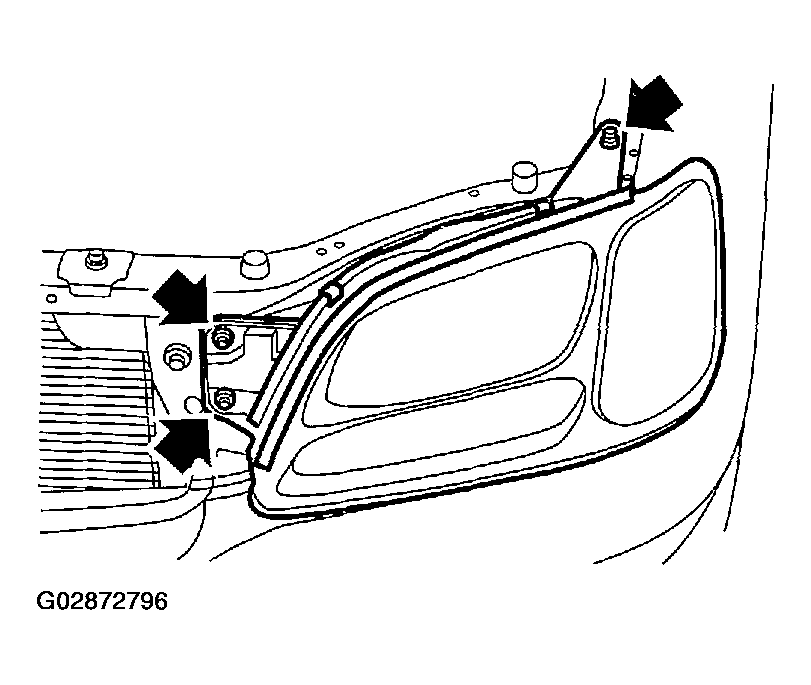

Fig 4: Removing Three Bolts & Disconnecting Connectors
Courtesy of SUBARU OF AMERICA, INC.
