Room Light Switch

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Measure room light switch resistance.

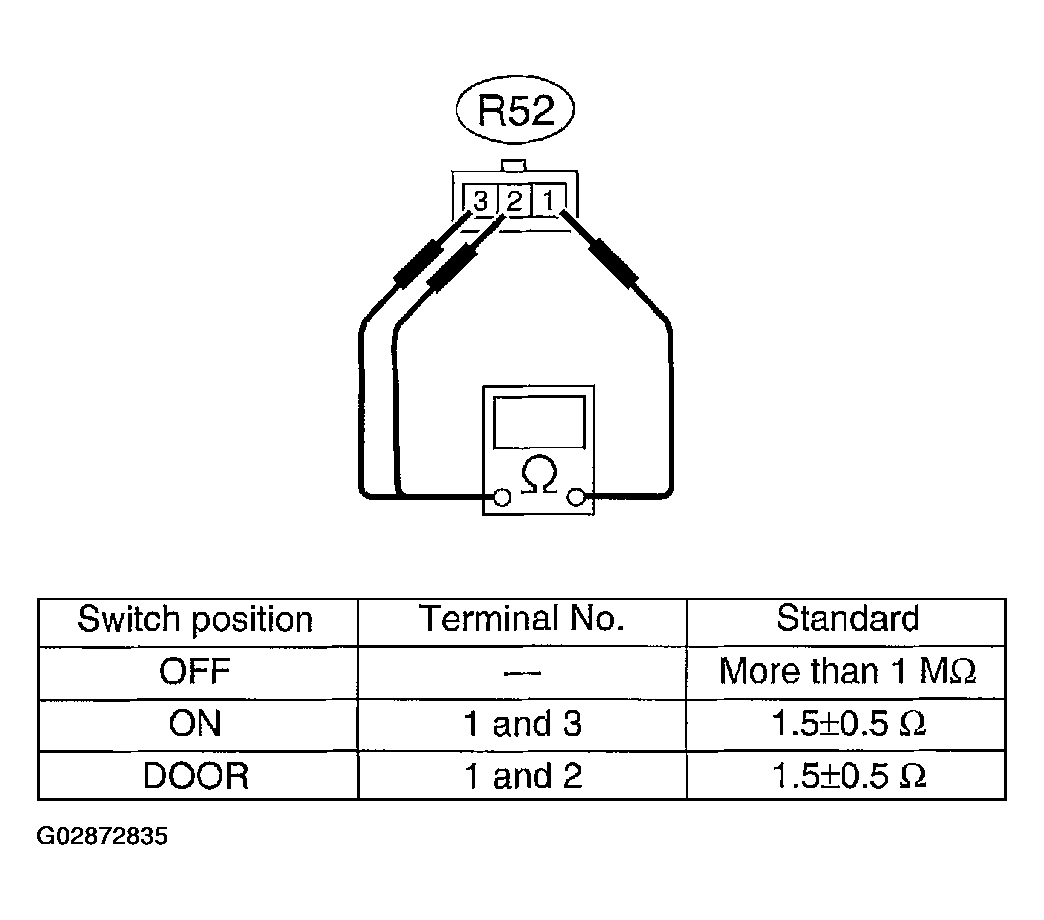

Fig 1: Measuring Room Light Switch Resistance
G02872835Courtesy of SUBARU OF AMERICA, INC.
