Blower Motor Assembly: Inspection

WARNING: This page is about a different car, the 2003 Subaru Outback, 2003 Subaru Legacy, and 2003 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

Connect motor connector terminal 1 from the battery to the positive (+) lead and terminal 2 to the negative (-) lead. Make sure the motor runs smoothly.

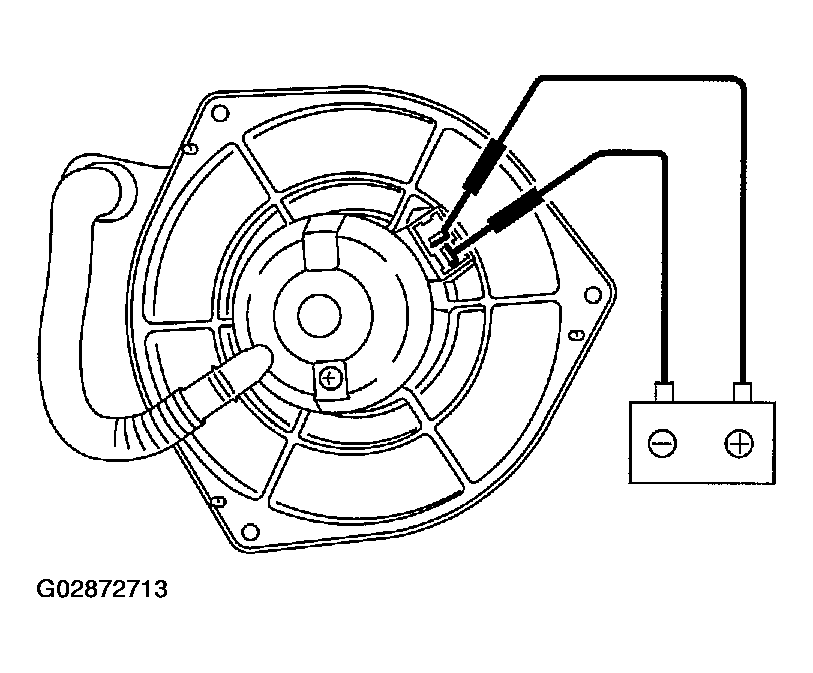

Fig 1: Connecting Motor Connector Terminal From Battery
G02872713Courtesy of SUBARU OF AMERICA, INC.
