Radiator Main Fan System: Inspection

WARNING: This page is about a different car, the 2004 Subaru Outback, 2004 Subaru Legacy, and 2004 Subaru Baja. However, it is still accessible from the selected car via links, so may be relevant.

DETECTING CONDITION:
1. Condition:
  - Engine coolant temperature is above 95°C (203°F).
  - Vehicle speed is below 19 km/h (12 MPH).
TROUBLE SYMPTOM:
- Radiator main fan does not rotate under the above conditions.

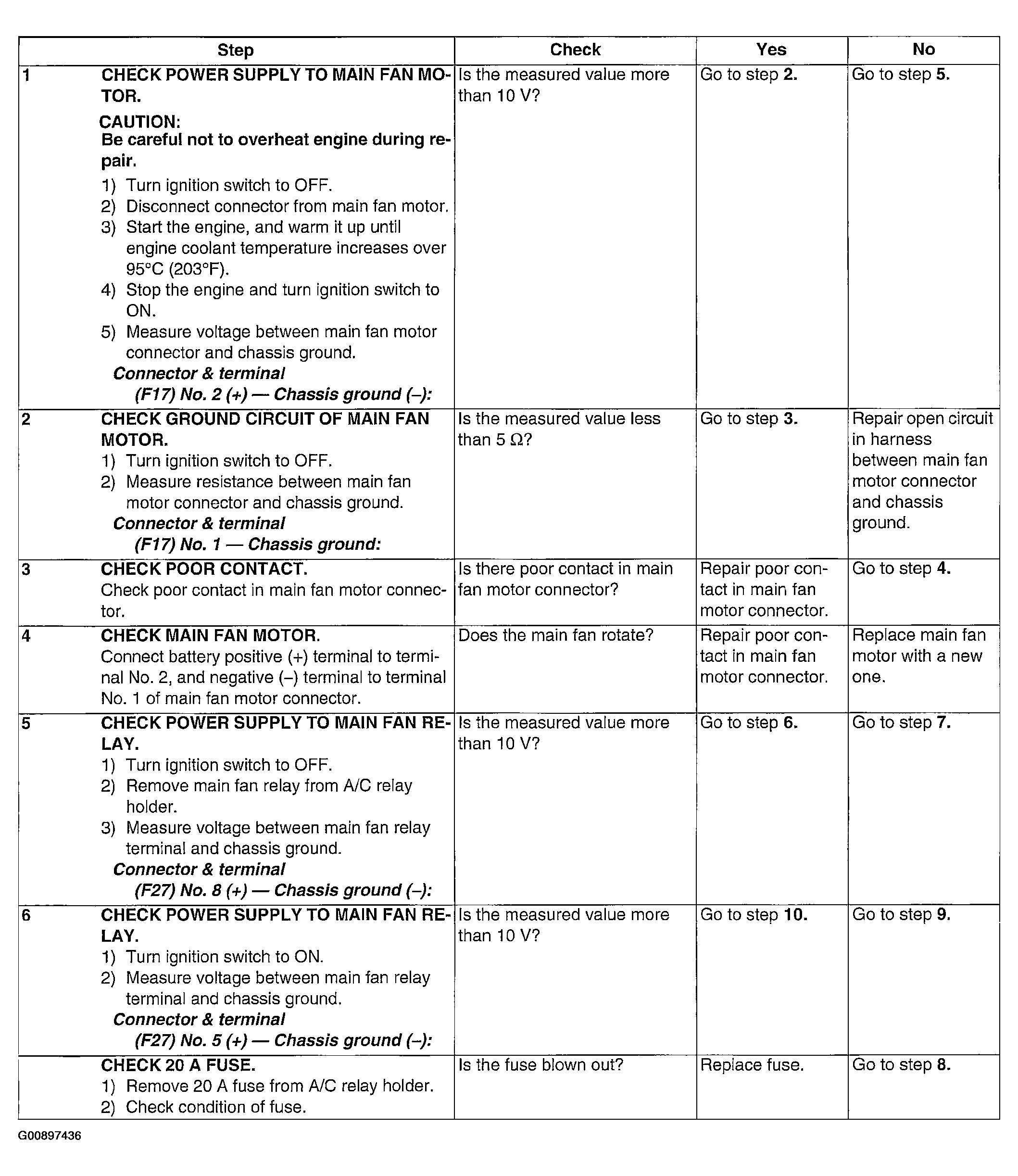

Fig 1: Trouble Symptom Chart (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

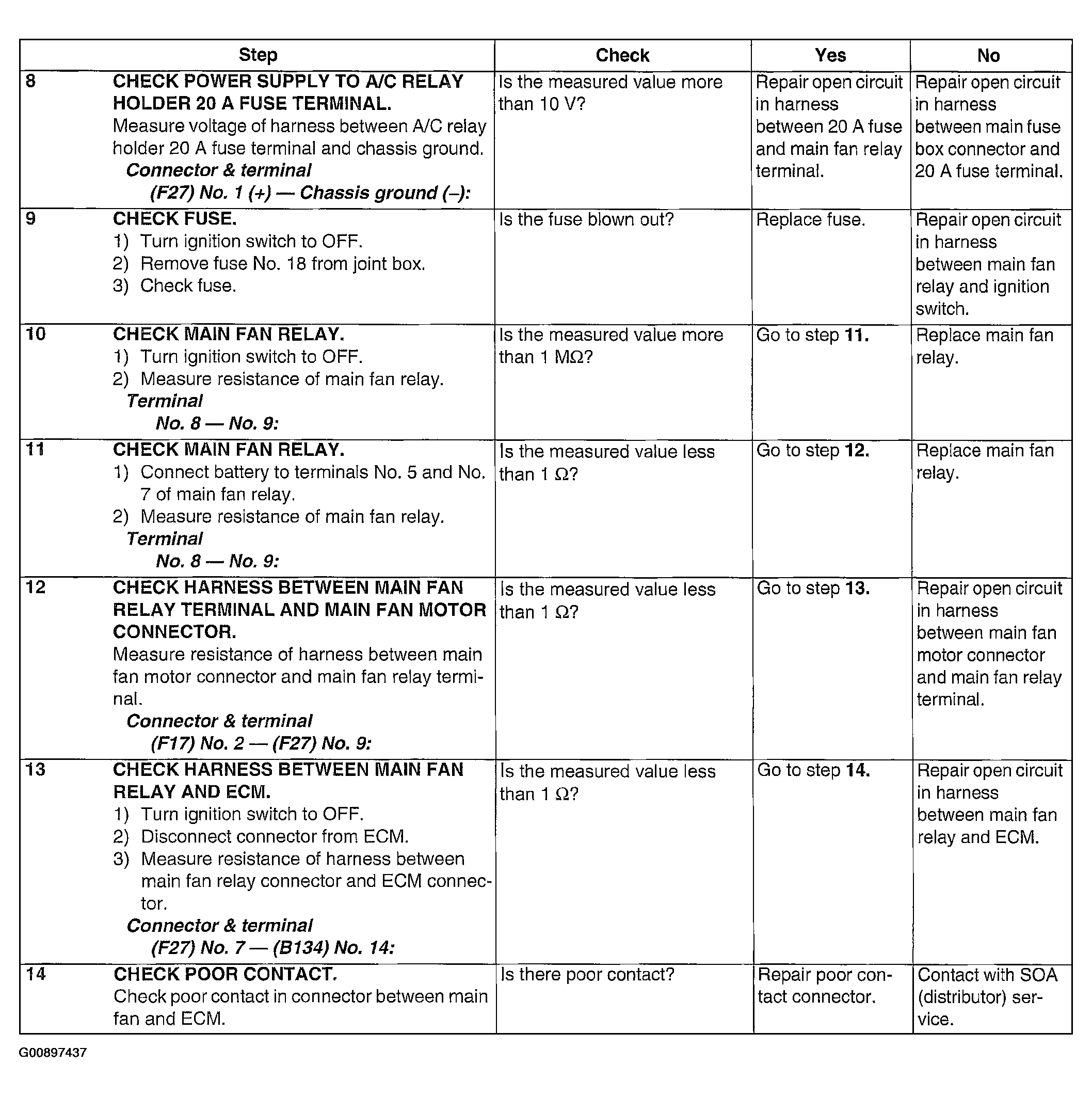

Fig 2: Trouble Symptom Chart (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
