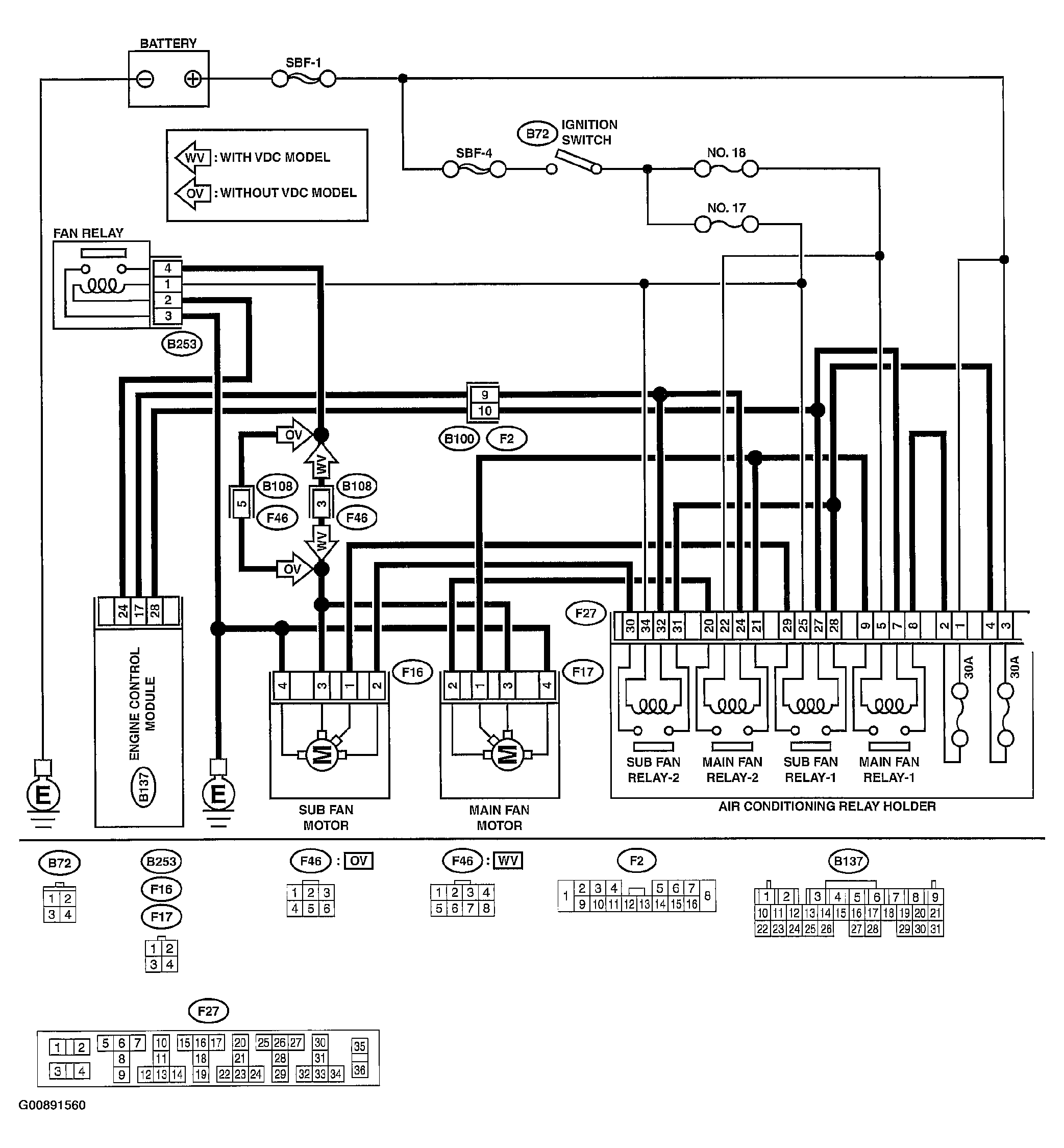

Radiator Main Fan System: Schematic
WARNING: This page is about a different car, the 2004 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.
