Section 230 (Clutch System): Flywheel: Inspection

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Since this bearing is grease sealed and is of a non-lubrication type, do not wash with gasoline or any solvent.

Damage of facing and ring gear
If defective, replace the flywheel.

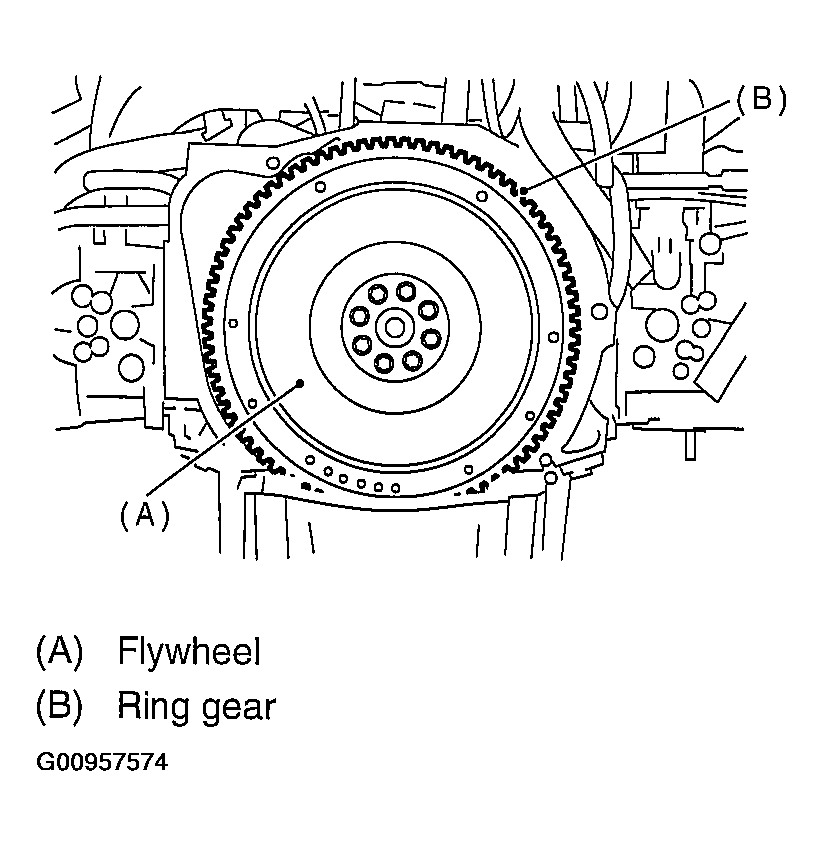

Fig 1: Inspecting Flywheel For Damage
Courtesy of SUBARU OF AMERICA, INC.
Smoothness of rotation
Rotate the ball bearing applying pressure in thrust direction.
If noise or excessive play is noted, replace the flywheel.
