Front Turn Signal Light Bulb: Removal
WARNING:
This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

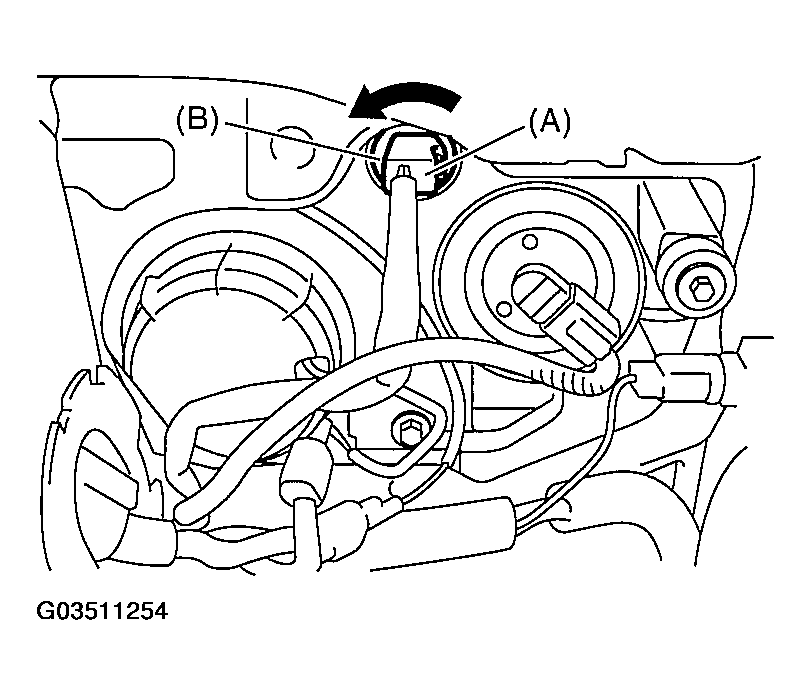

Disconnect the harness connector (A), and then turn the socket (B) and remove the bulb.
Fig 1: Removing Front Turn Signal Light Bulb
Courtesy of SUBARU OF AMERICA, INC.
