Rear Combination Light Assembly: Removal: Sedan

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the clips, and the detach the trunk rear trim.
    Fig 1: Removing Clips
    G03511260Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the trunk side trim of rear portion.
  4. Remove the four nuts, and then detach the rear combination light while disconnecting connector.

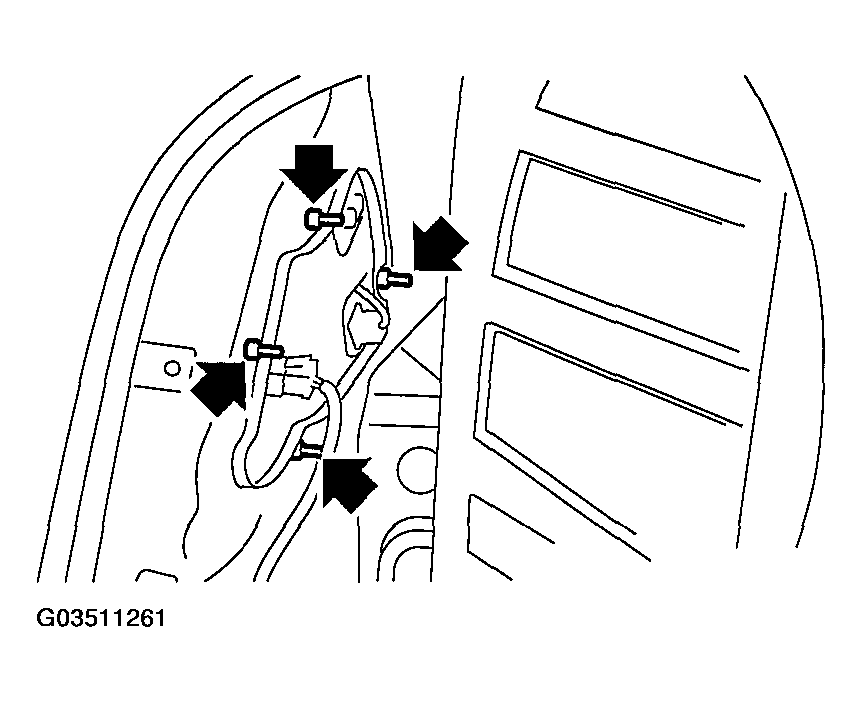

    Fig 2: Removing Rear Combination Light (Sedan)
    G03511261Courtesy of SUBARU OF AMERICA, INC.
