Console Box: Removal

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the console cover.

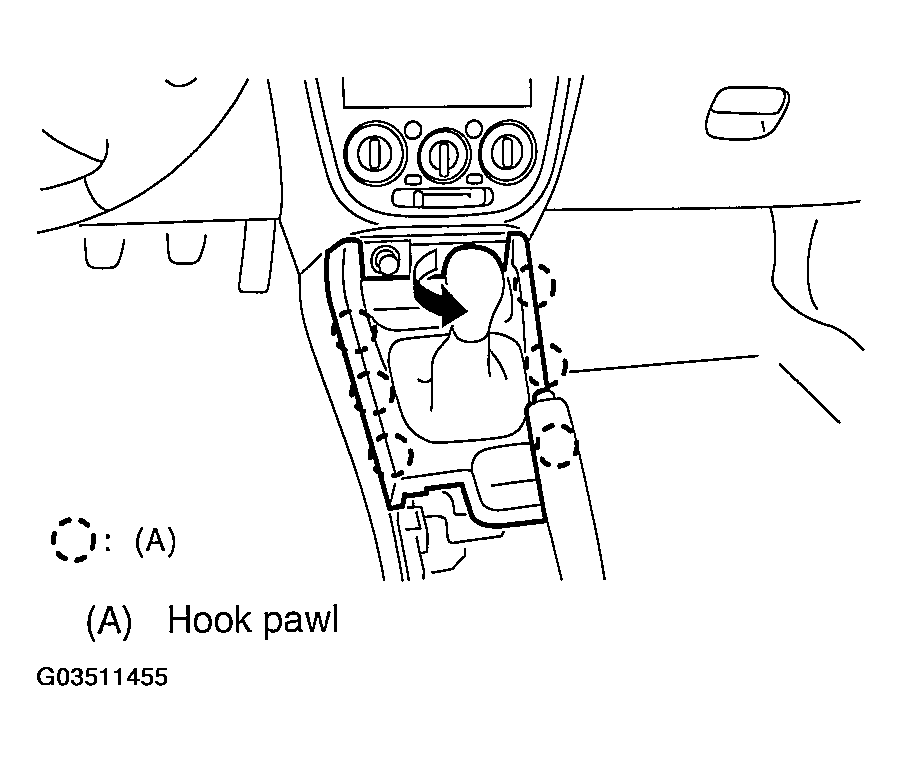

Fig 1: Removing Console Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the shift knob (MT model) and front cover.

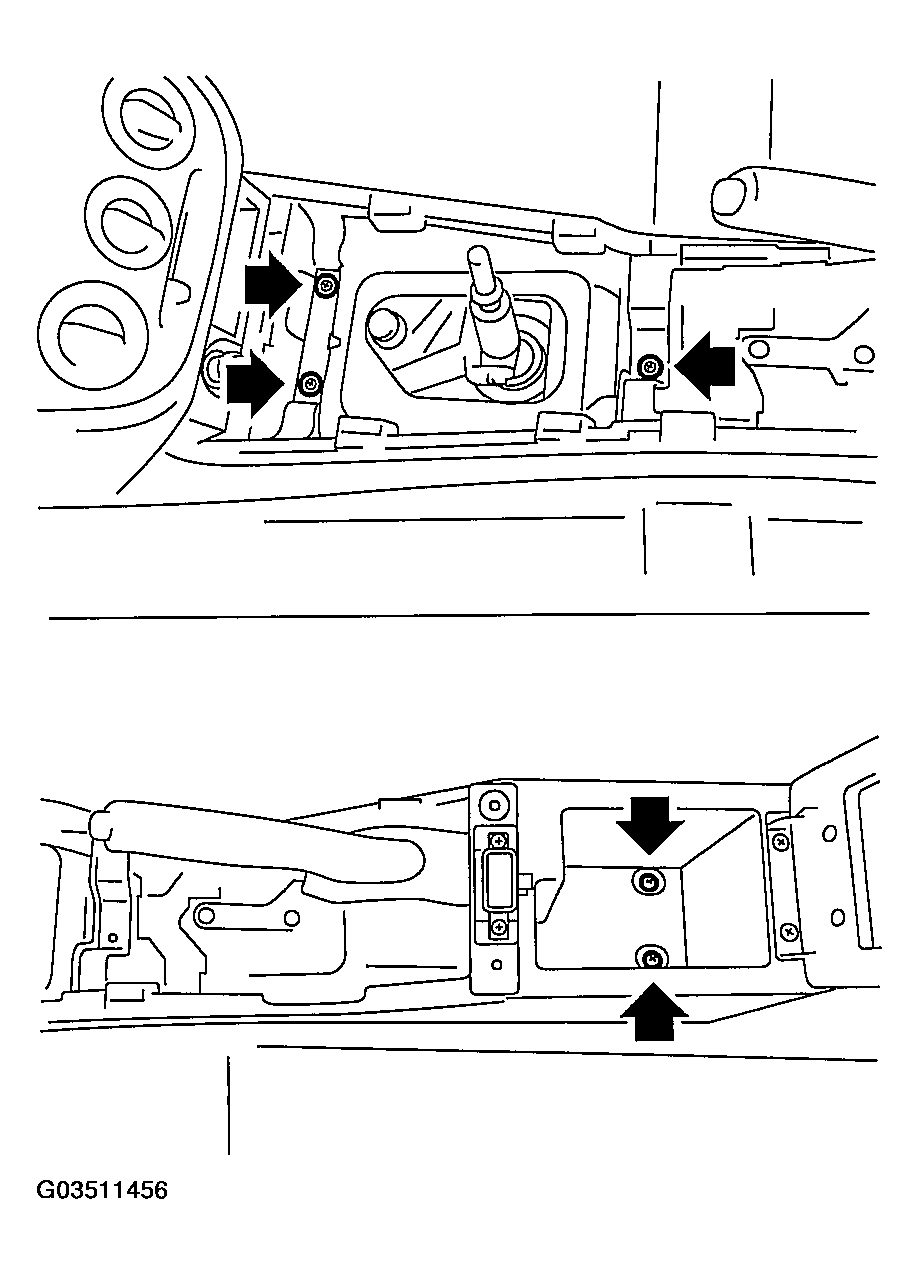

Fig 2: Removing Shift Knob (MT Model) & Front Cover
Courtesy of SUBARU OF AMERICA, INC.
Loosen the screws to remove the console box.

Fig 3: Removing Console Box
Courtesy of SUBARU OF AMERICA, INC.
