Instrument Panel Assembly: Installation

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Be careful not to snag the harness.
Carry out installation checking that the harness is connected correctly.
When setting the instrument panel into vehicle, do not damage trim panels.

Install in the reverse order of removal.

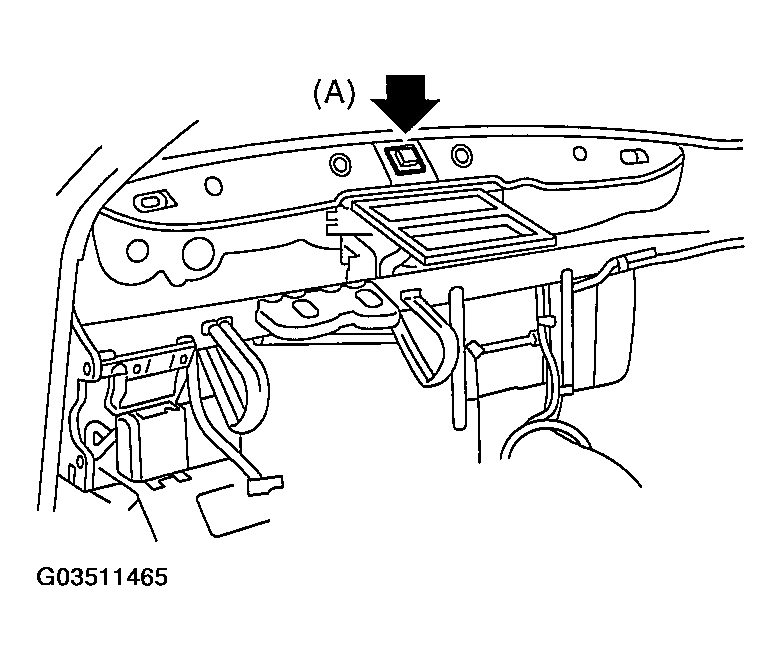

NOTE: When installing the instrument panel into position, push the hook into grommet (A) on the body panel. After tightening the bolts, recheck the installation.

Fig 1: Locating Hook
Courtesy of SUBARU OF AMERICA, INC.
