Extension Case: Removal

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Remove the transmission assembly. See REMOVAL , Automatic Transmission Assembly.
Remove the rear wheel speed sensor.

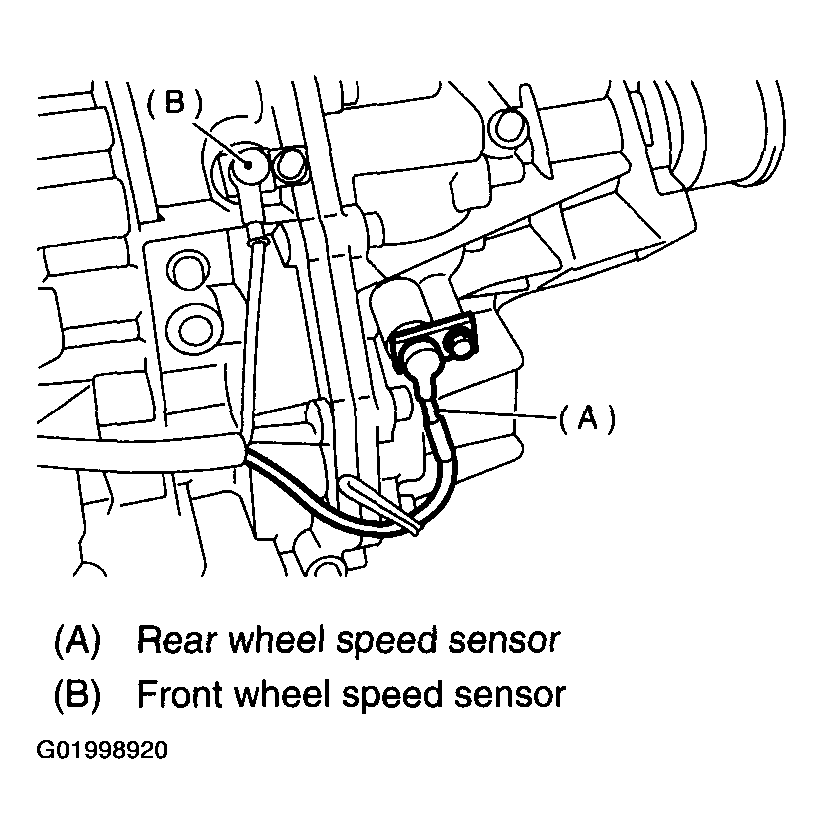

Fig 1: Removing Rear Wheel Speed Sensor (MPT Model)
Courtesy of SUBARU OF AMERICA, INC.

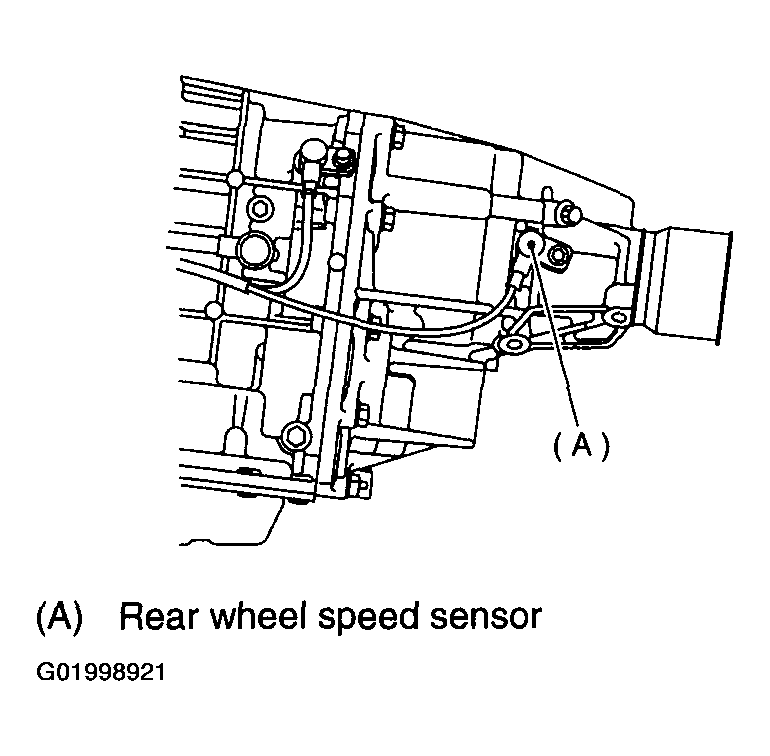

Fig 2: Removing Rear Wheel Speed Sensor (VTD Model)
Courtesy of SUBARU OF AMERICA, INC.
Separate transmission case and extension case sections.

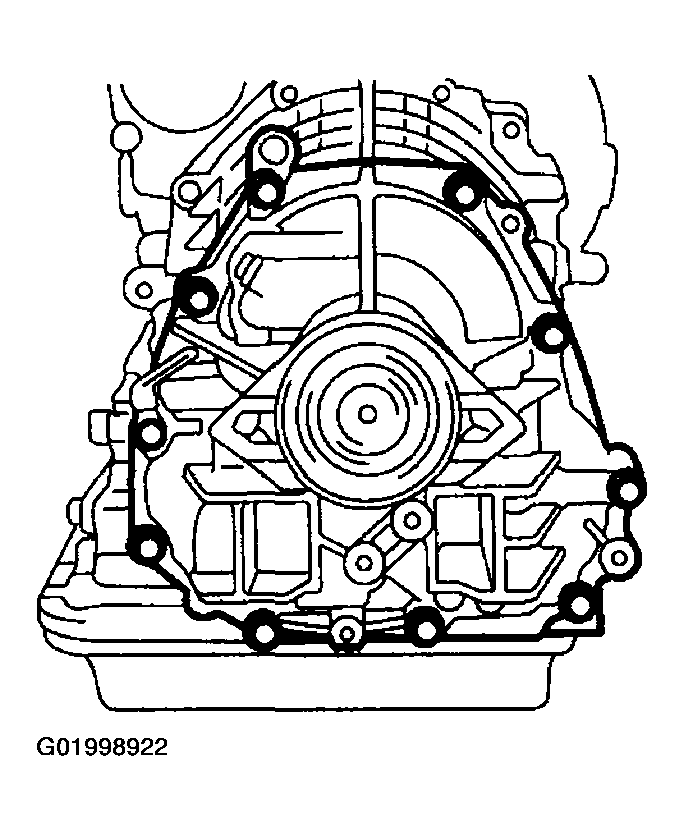

Fig 3: Separating Transmission Case & Extension Case Sections
Courtesy of SUBARU OF AMERICA, INC.
