Control Valve And Harness Routing

WARNING: This page is about a different car, the 2003 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

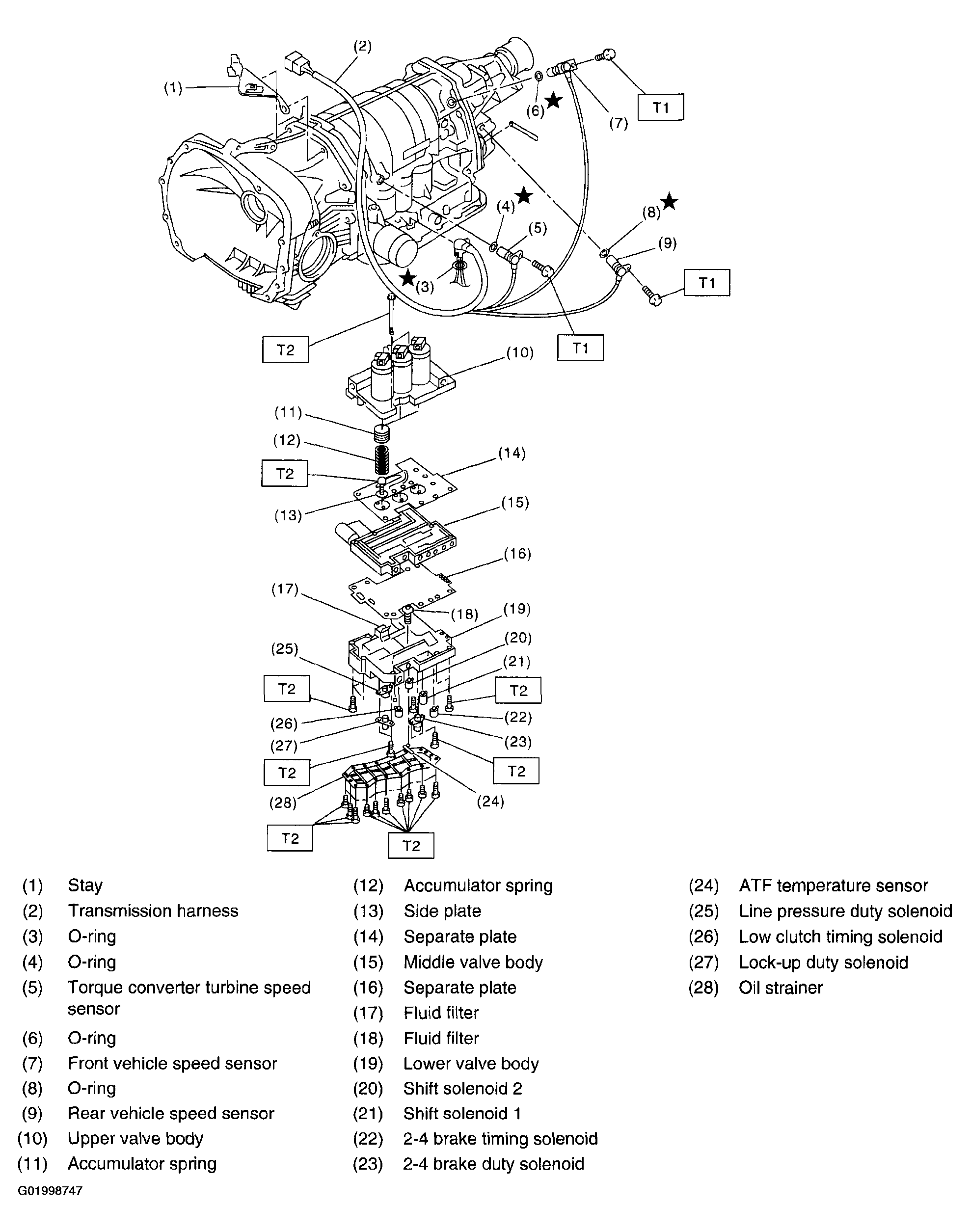

Fig 1: Identifying Control Valve & Harness Routing Components

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torques: N.m (kgf-m, ft-lb)

T1: 7 (0.7, 5.1)
T2: 8 (0.8, 5.8)
