Oil Pressure System: Inspection

WARNING: This page is about a different variant/trim than selected.

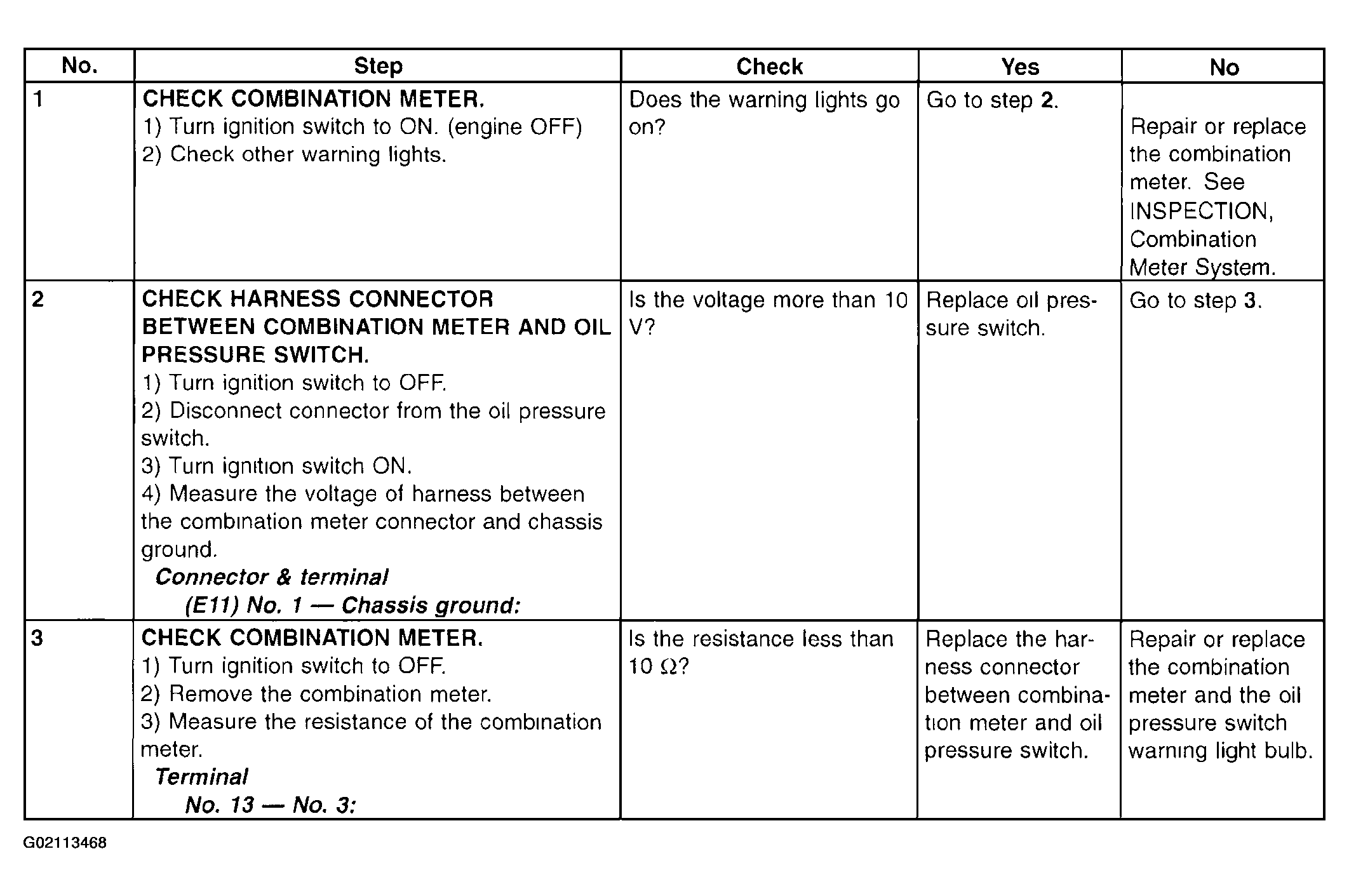

Fig 1: Oil Pressure Warning Light Trouble Shooting Chart
G02113468
