General Diagnostic Table: Inspection: Clutch

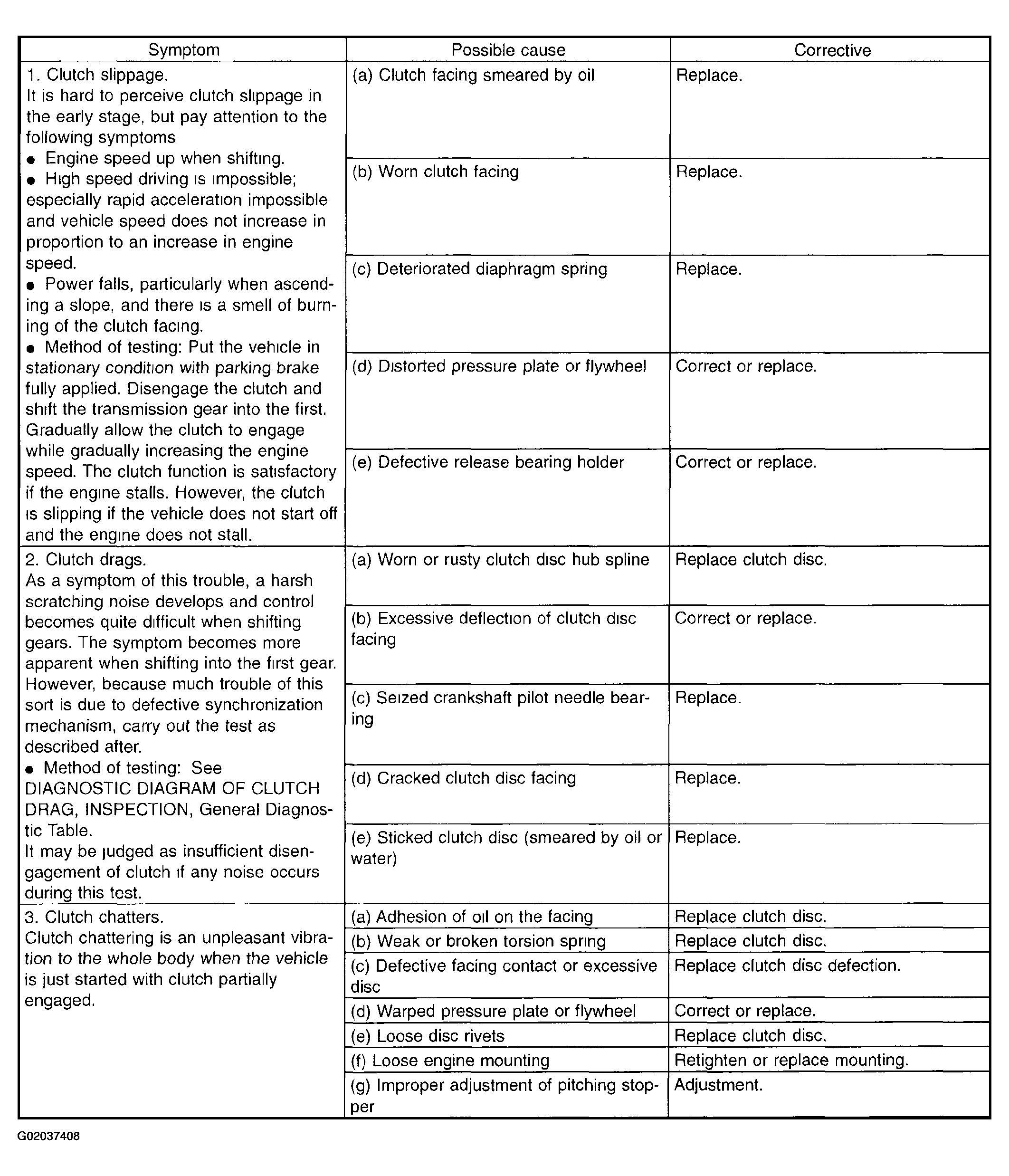

Fig 1: General Diagnostic Chart

G02037408

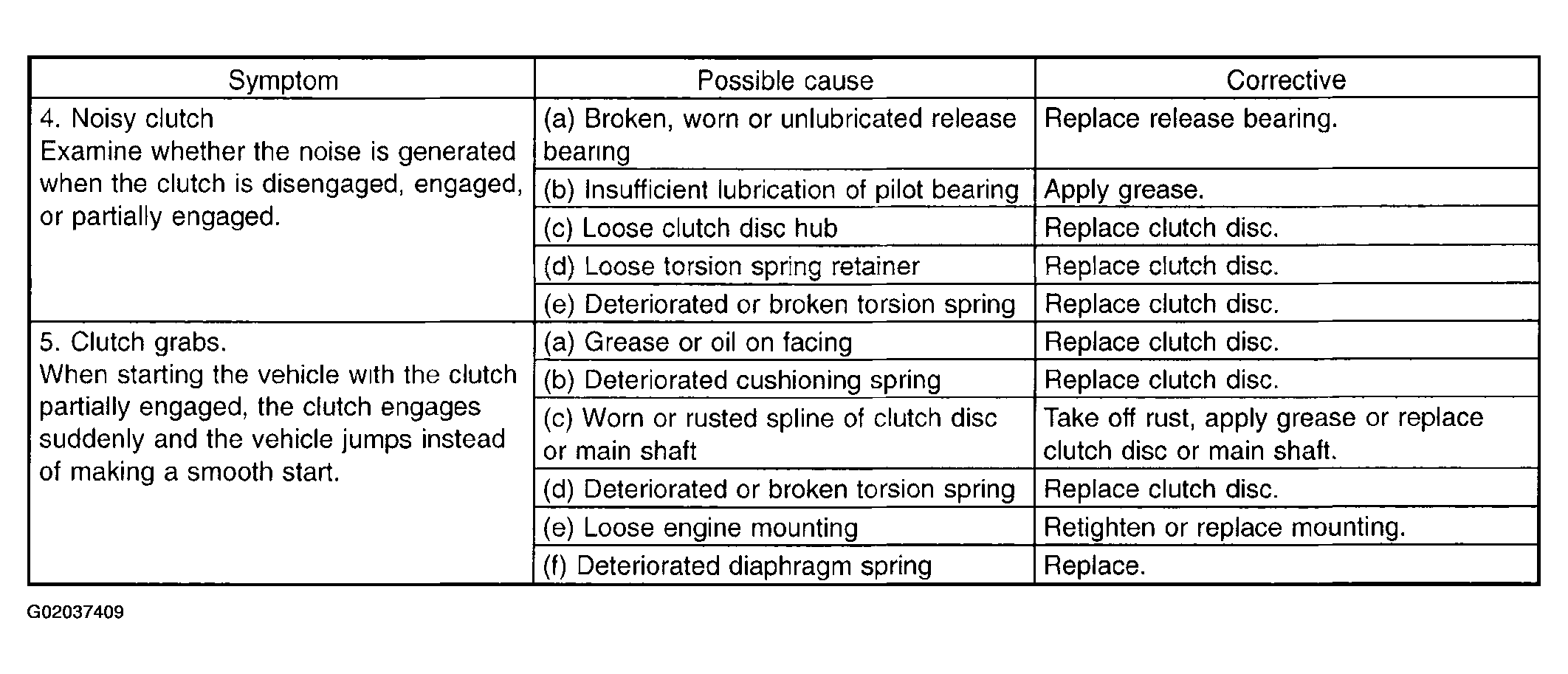

Fig 2: General Diagnostic Chart

G02037409
