Main Shaft Assembly

Tightening torque: N.m (kgf-m, ft-lb)

  1. T:  118 (12, 86.8)

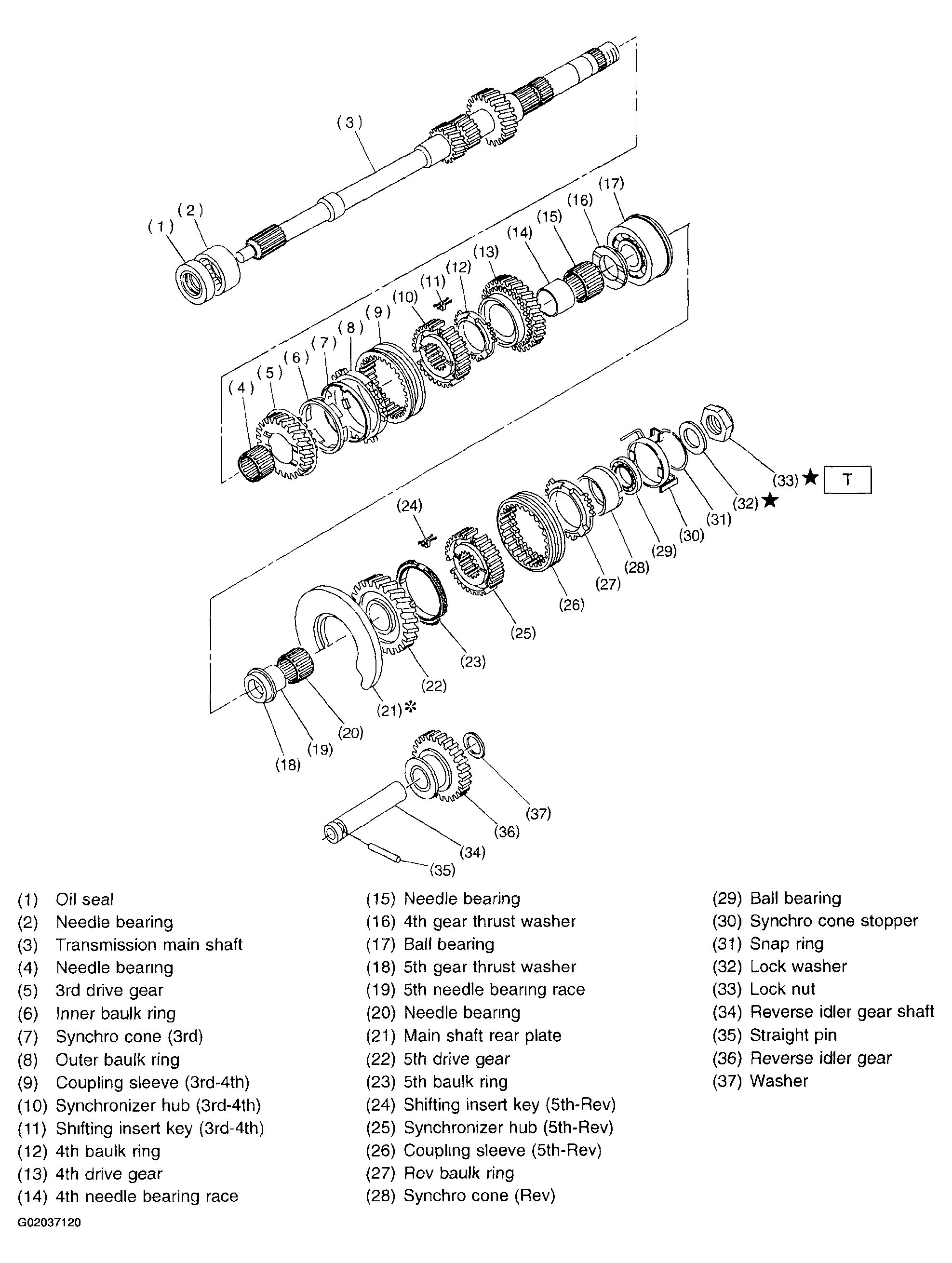

Fig 1: Main Shaft Assembly Overview
G02037120
