Shifter Fork And Shifter Rod

Tightening torque: N.m (kgf-m, ft-lb)

  1. T:  19.6 (2, 14.5)

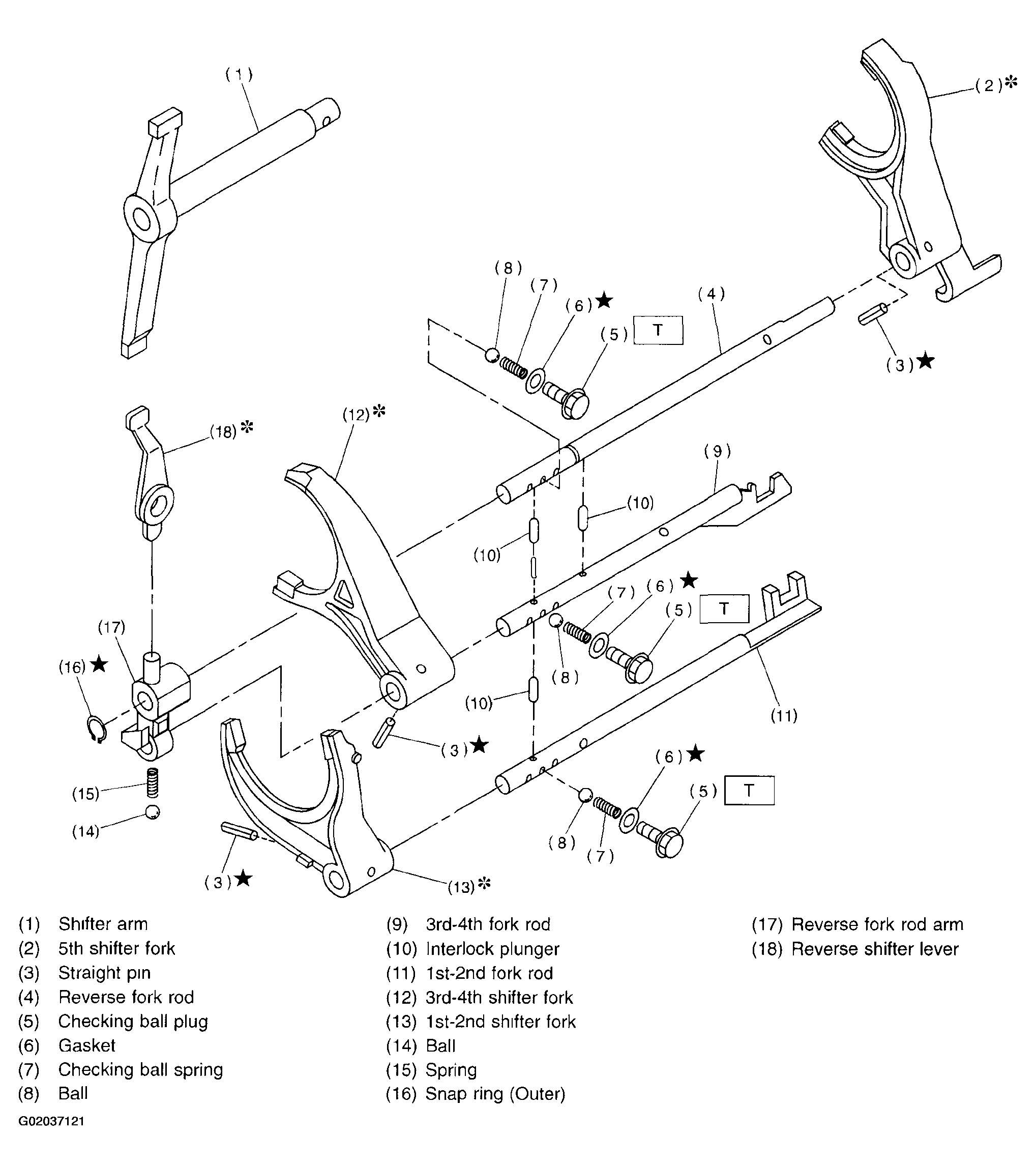

Fig 1: Shifter Fork & Shifter Rod Assembly Overview
G02037121
