Shifter Fork And Rod

Select suitable shifter forks so that both coupling sleeve and reverse driven gear are positioned in the center of their synchromesh mechanisms. Rod end clearance

1. A: 1st-2nd - 3rd-4th

   0.4 - 1.4 mm (0.016 - 0.055 in)

2. B: 3rd-4th - 5th

   0.5 - 1.3 mm (0.020 - 0.051 in)

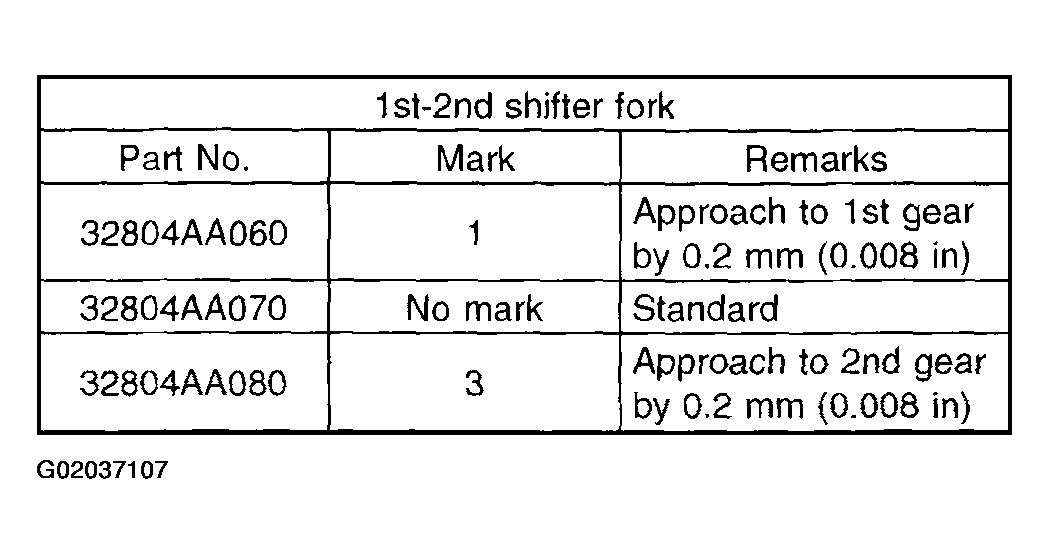

   Fig 1: Shift Fork Selection Chart (1st & 2nd Shift Fork)

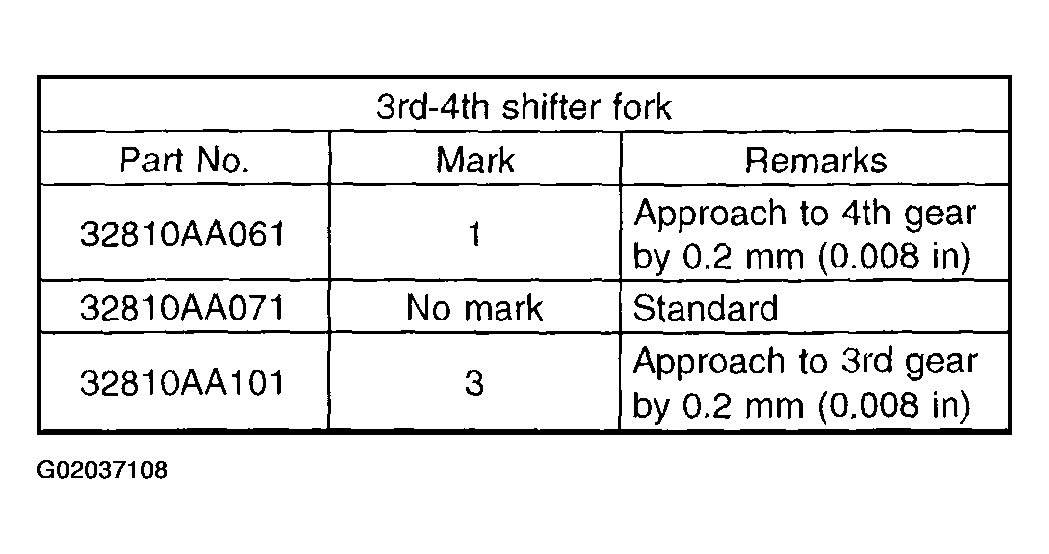

   Fig 2: Shift Fork Selection Chart (3rd & 4th Shift Fork)

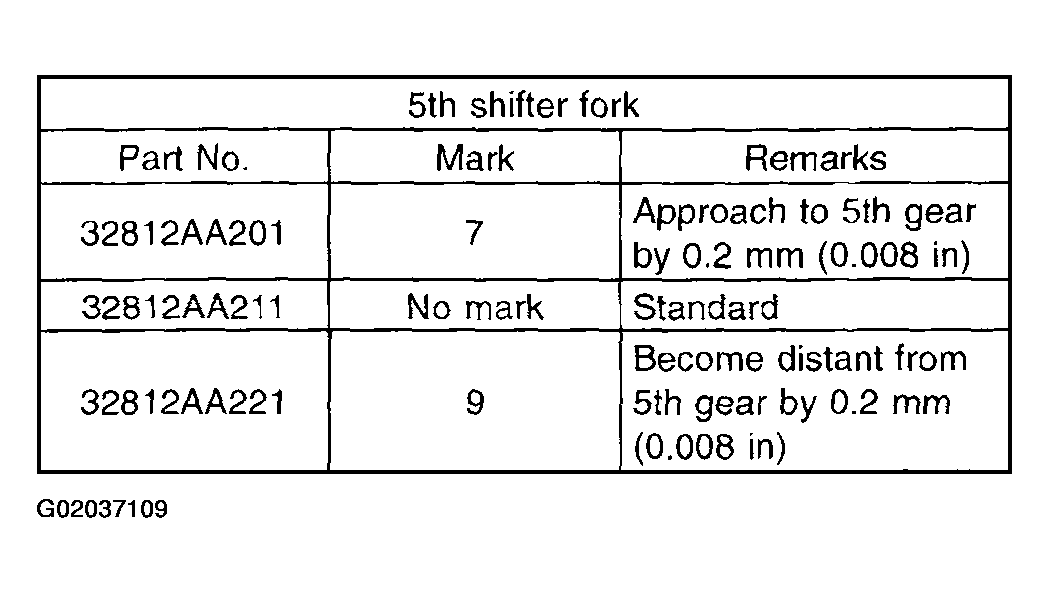

   Fig 3: Shift Fork Selection Chart (5th Shift Fork)
