Reverse Check Sleeve: Disassembly

Using a standard screwdriver, remove snap ring.
NOTE: Replace snap ring with a new one if deformed or weakened.

Fig 1: Removing Snap Ring
Remove reverse check plate, reverse check spring, reverse check cam, return spring (5th-Rev), reverse accent shaft, return spring cap and return spring (1st-2nd).

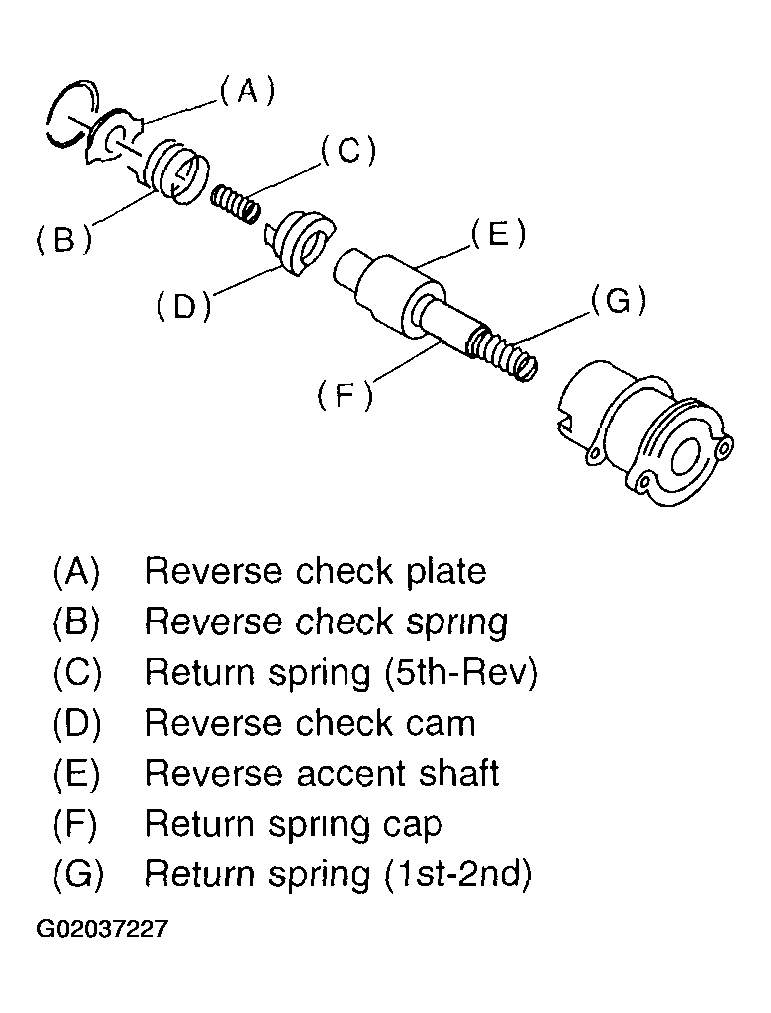

Fig 2: Disassembling Reverse Check Sleeve Assembly
Remove O-ring.
NOTE:
- Reverse check sleeve assembly uses an O-ring which should not be scratched.
- Be careful not to break adjustment shim placed between reverse check sleeve assembly and case.
