Switches and Harness: Installation

  1. Install back-up light switch and neutral position switch with harness.

    Tightening torque:

    1. 24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

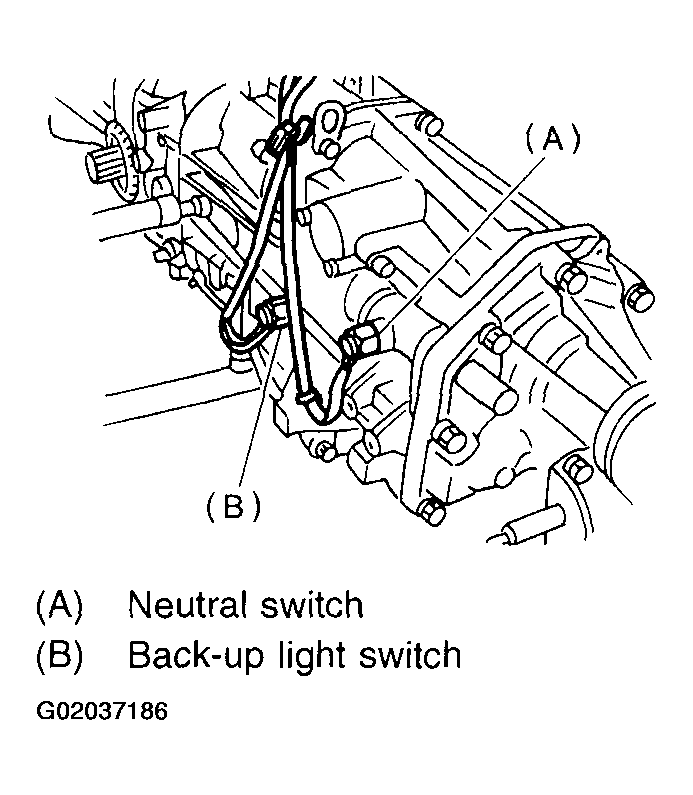

      Fig 1: Installing Back-Up Light Switch And Neutral Position Switch With Harness
      G02037186
  2. Disconnect connector of back-up light switch and neutral position switch.
  3. Connect battery ground terminal.
