Extension Case

  1. Remove transfer drive gear assembly. See Transfer Drive Gear  .
  2. Remove shift bracket.

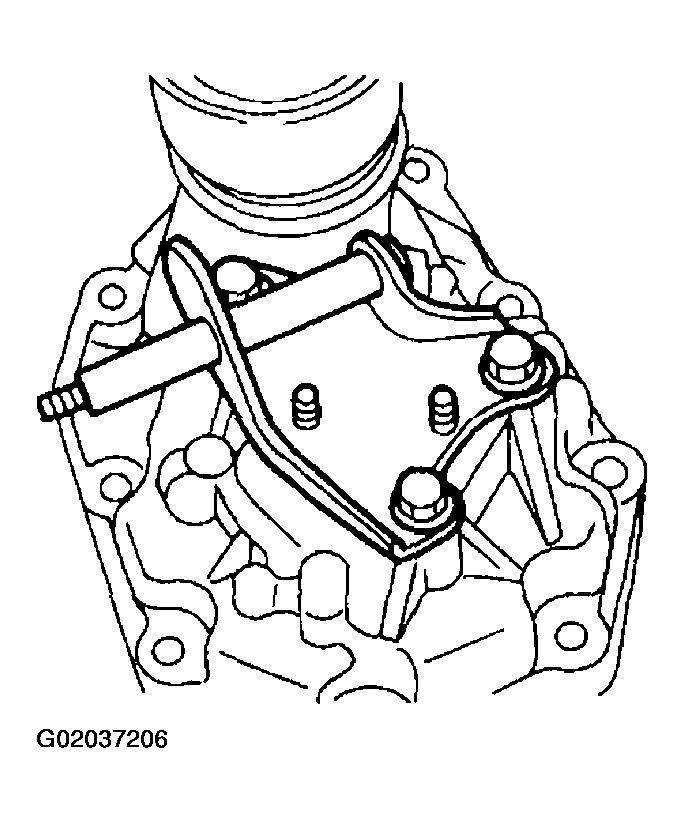

    Fig 1: Removing Shift Bracket
    G02037206
  3. Remove oil seal from extension case. See Oil Seal  .
