Transfer Drive Gear: Installation

Install transfer drive gear.
Tightening torque:
1. 8.8 N.m (0.9 kgf-m, 6.5 ft-lb)

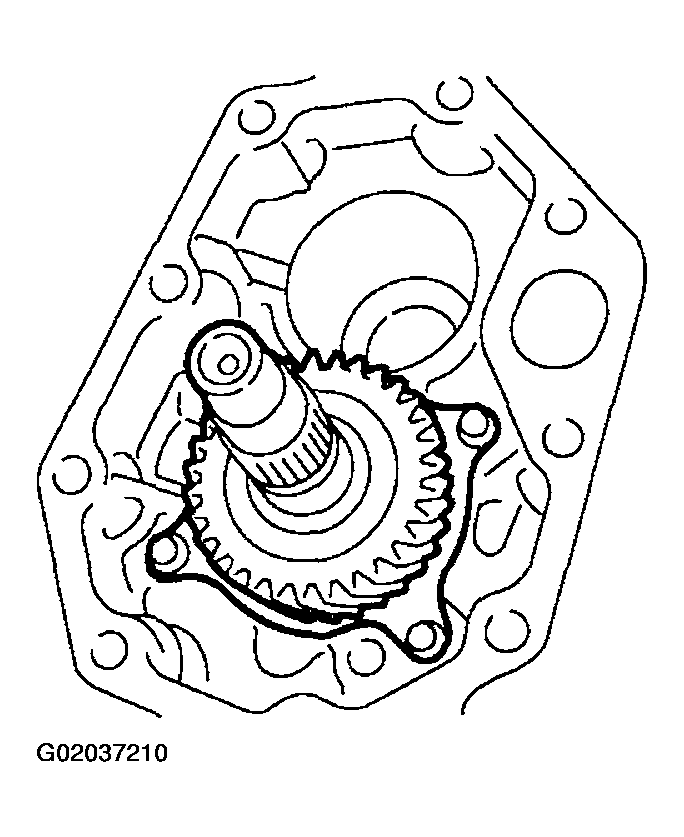

  Fig 1: Installing Transfer Drive Gear
Install transfer driven gear.
Install transfer case and extension case assembly. See Transfer Case and Extension Case Assembly .
Install back-up light switch and neutral position switch. See Switches and Harness .
Install the manual transmission assembly from vehicle. See Manual Transmission Assembly .
