CROSSMEMBER And Cushion Rubber

Install the rear cushion rubber.
Tightening torque:
1. 34 N.m (3.5 kgf-m, 25.3 ft-lb)
Install the crossmember.
Tightening torque:
1. T1: 70 N.m (7.1 kgf-m, 51 ft-lb)
2. T2: 140 N.m (14.3 kgf-m, 103 ft-lb)

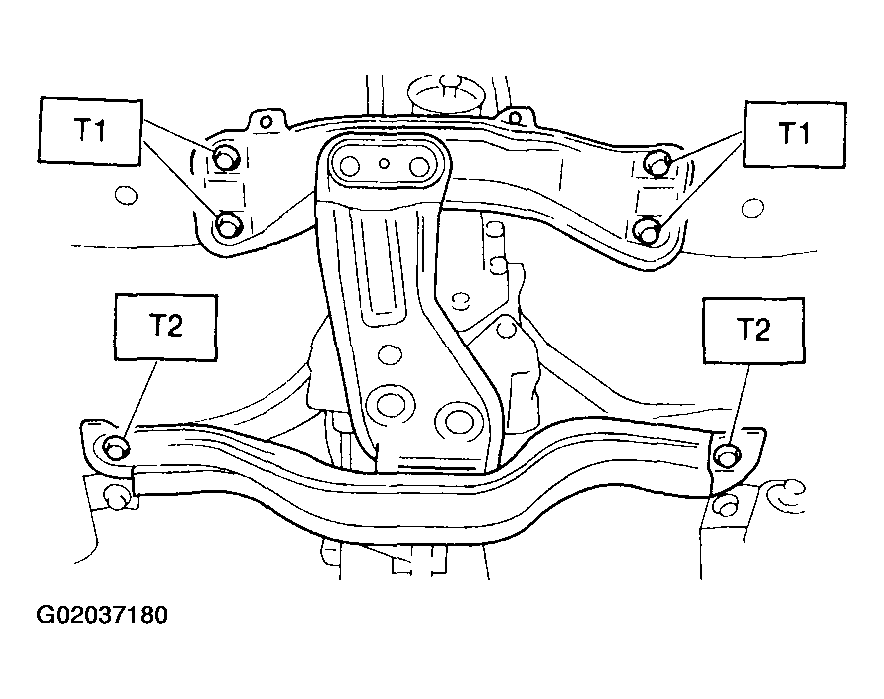

  Fig 1: Installing The Crossmember
Remove the transmission jack.
Install the heat shield cover.
Install the center, rear exhaust pipes and the muffler.
