Identification & Specifications - 3.0L: Specifications: Electrical

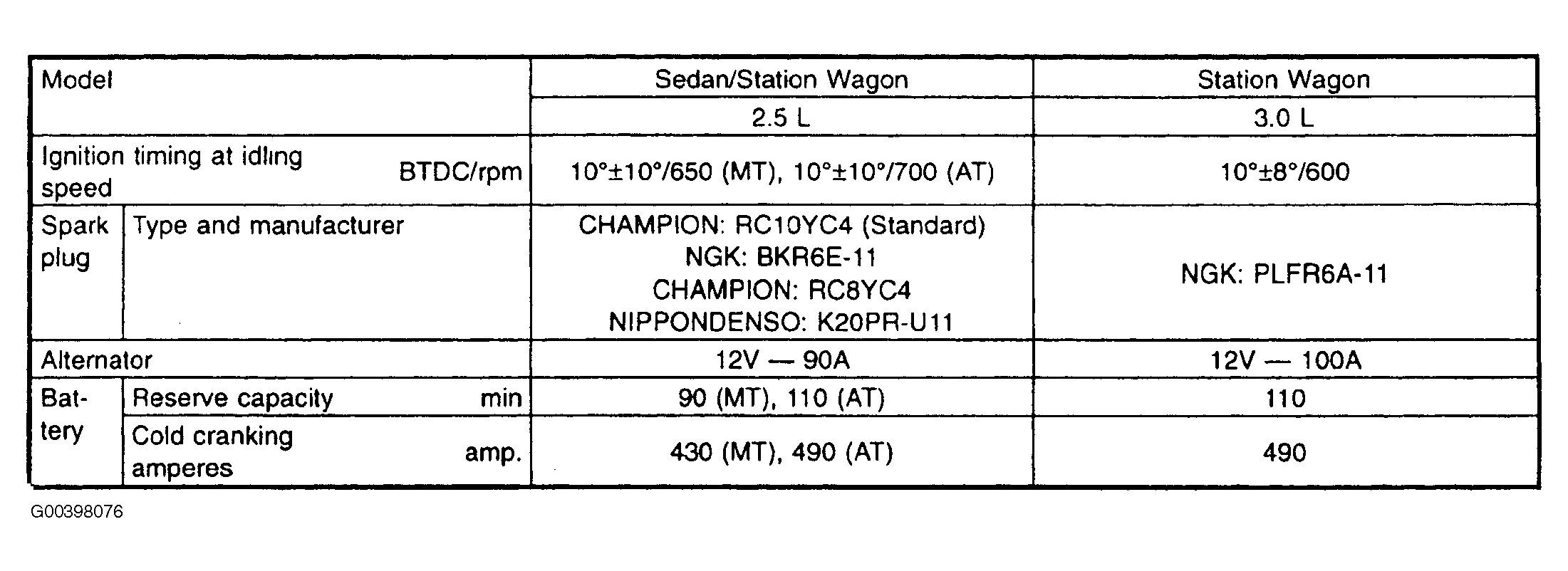

Fig 1: Electrical Specifications Chart
G00398076Courtesy of SUBARU OF AMERICA, INC.
