Front Hood Lock Assembly: Adjustment

Loosen the bolt. Adjust the lock assembly while moving it up and down.

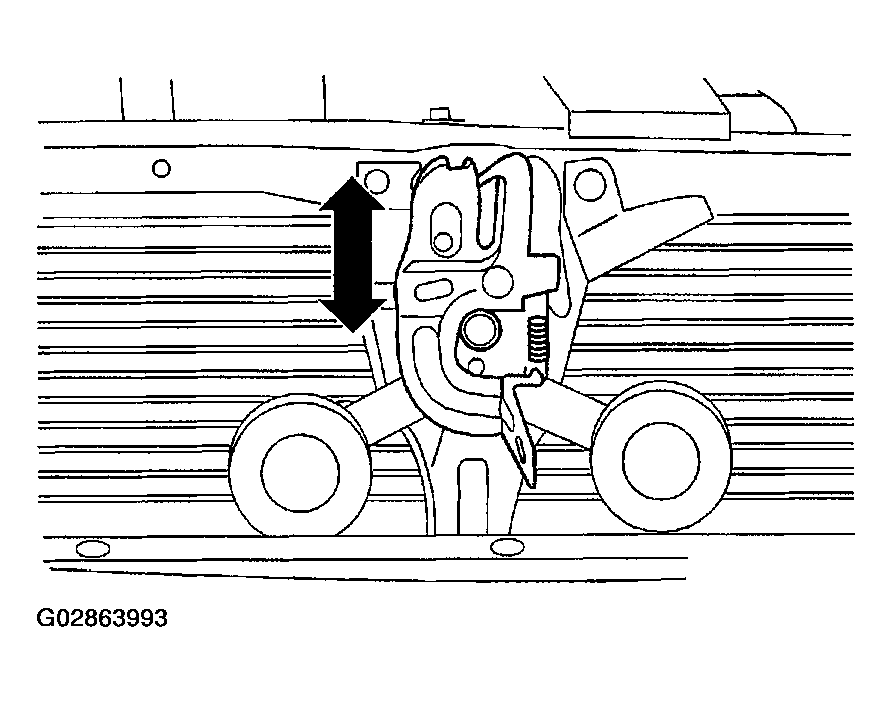

Fig 1: Adjusting Front Hood Lock Assembly
G02863993Courtesy of SUBARU OF AMERICA, INC.
