Door Lock Assembly

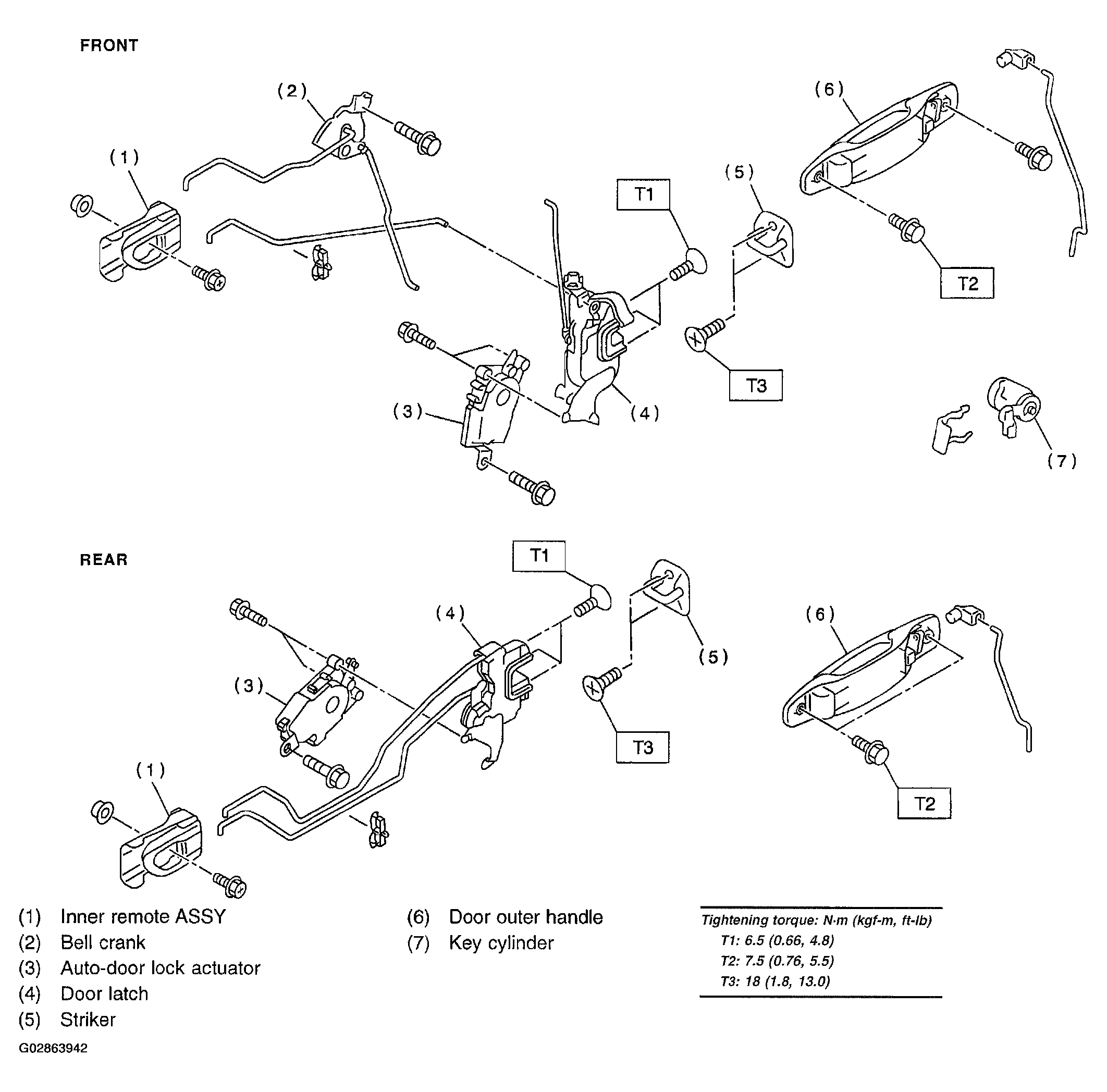

Fig 1: Locating Door Lock Assembly Components
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
