Check Door Switch

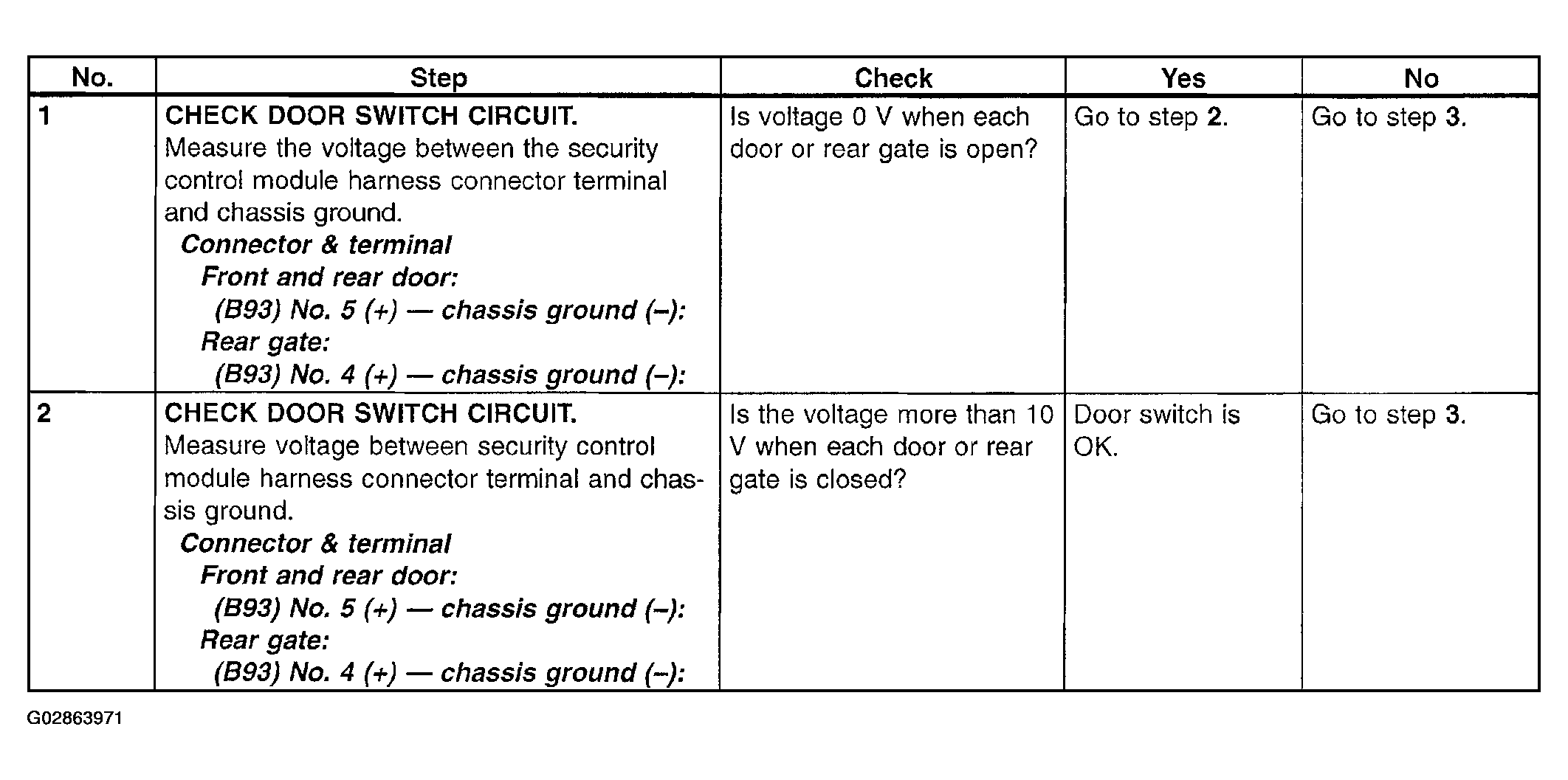

Fig 1: Checking Door Switch Chart (1 Of 2)
G02863971Courtesy of SUBARU OF AMERICA, INC.

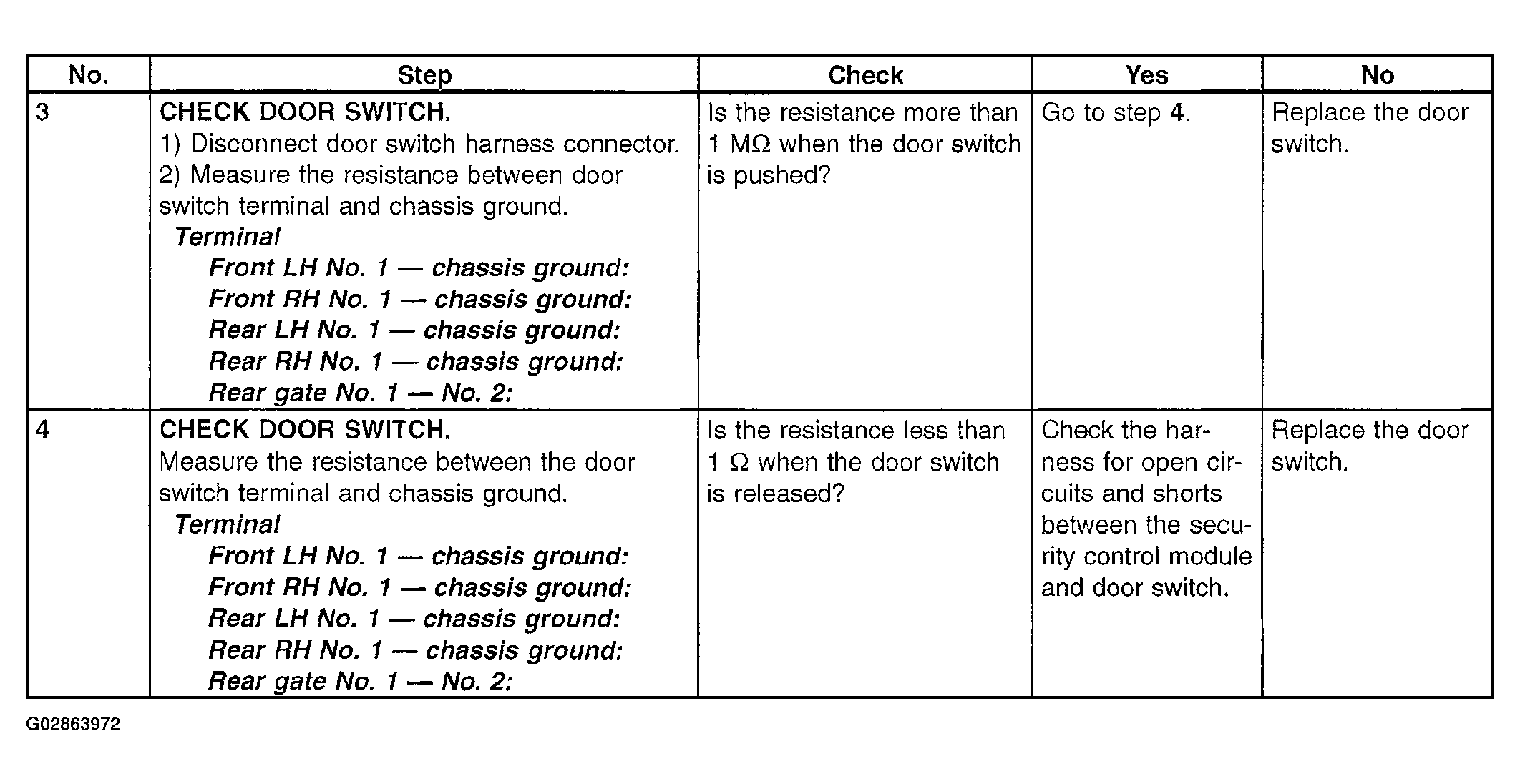

Fig 2: Checking Door Switch Chart (2 Of 2)
G02863972Courtesy of SUBARU OF AMERICA, INC.
