Mud Guard: Removal

  1. Jack-up the vehicle.
  2. Remove screws and clips. Move mud guard toward the center of the body and remove mud guard.

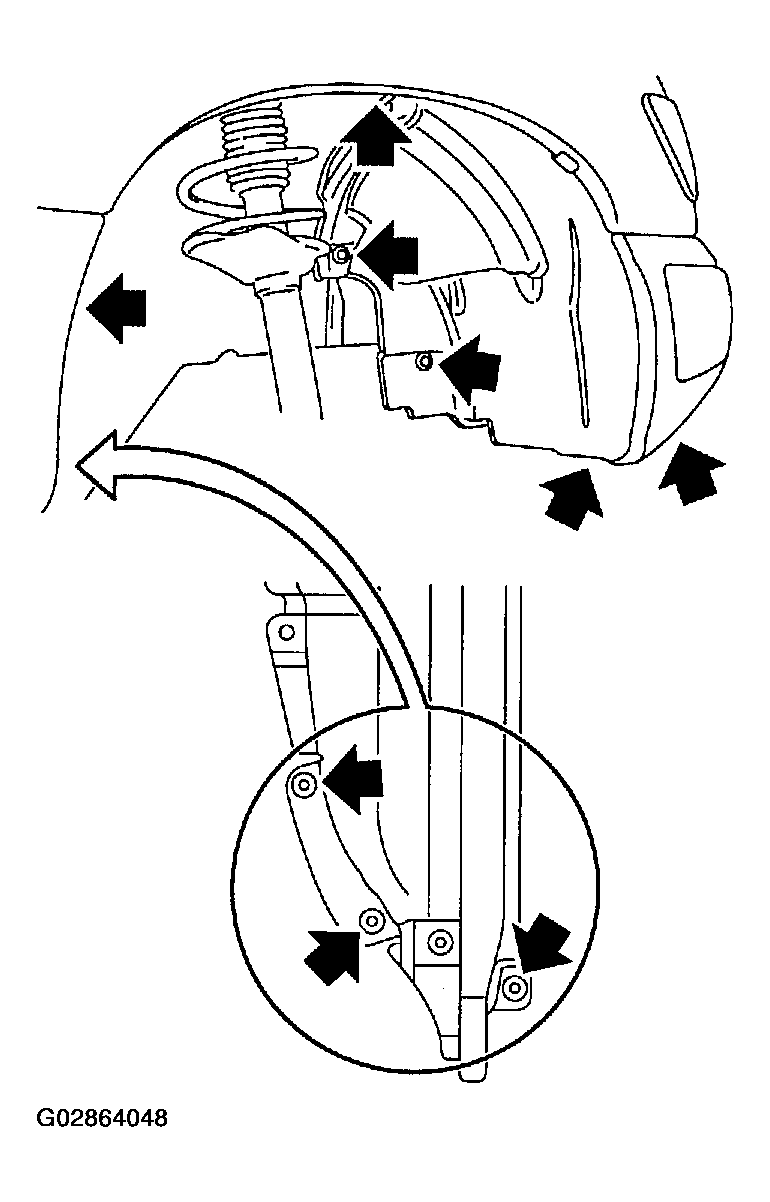

    Fig 1: Removing Mud Guard
    G02864048Courtesy of SUBARU OF AMERICA, INC.
