Power Window Sub-Switch Test

Remove power window sub-switch from door panel. Disconnect harness connector. Continuity should exist between specified switch terminals with switch in specified position. If continuity does not exist between specified terminals, replace power window sub-switch. See Fig 1 .

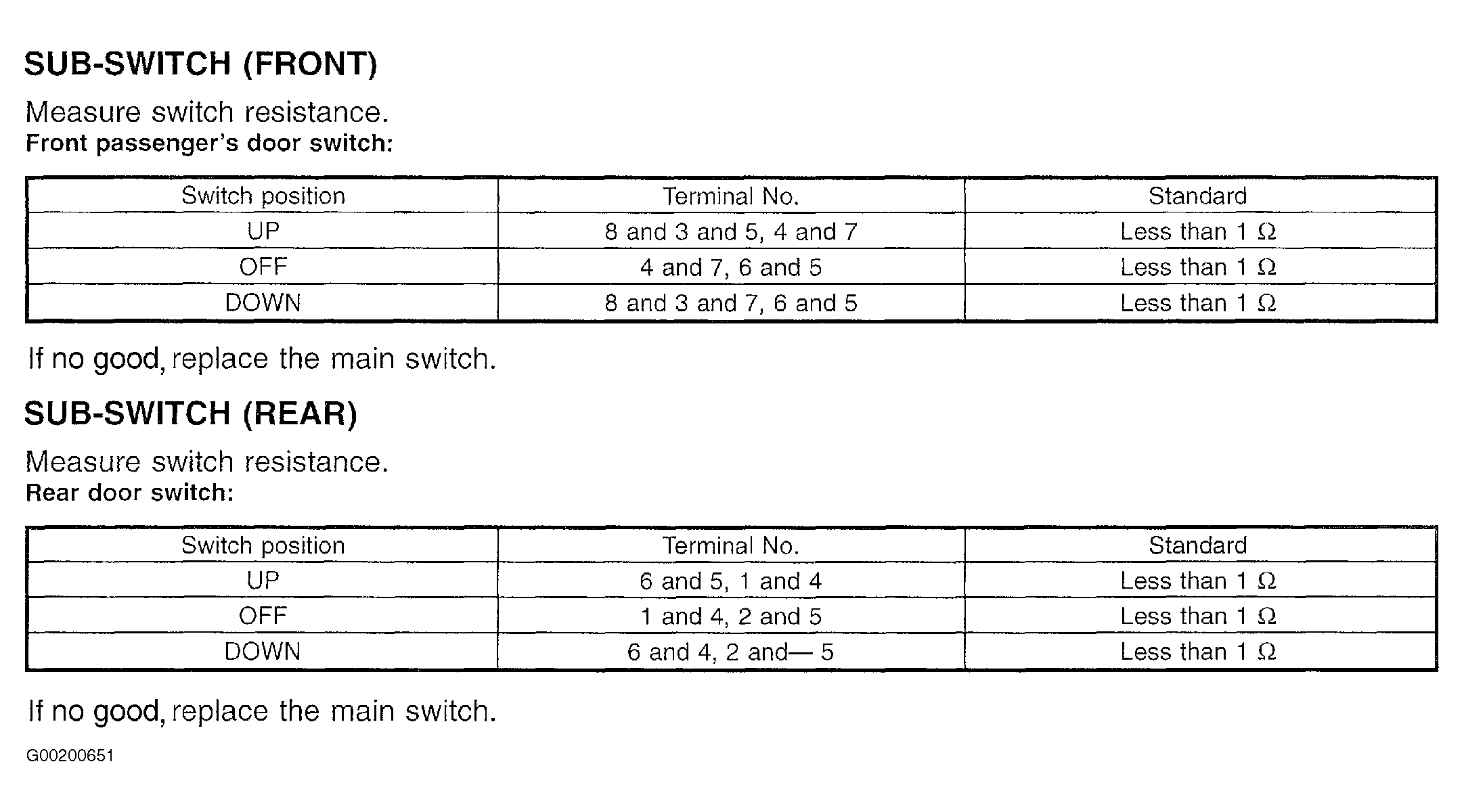

Fig 1: Testing Power Window Sub-Switch
G00200651Courtesy of SUBARU OF AMERICA, INC.
