General Diagnostic Table: Inspection

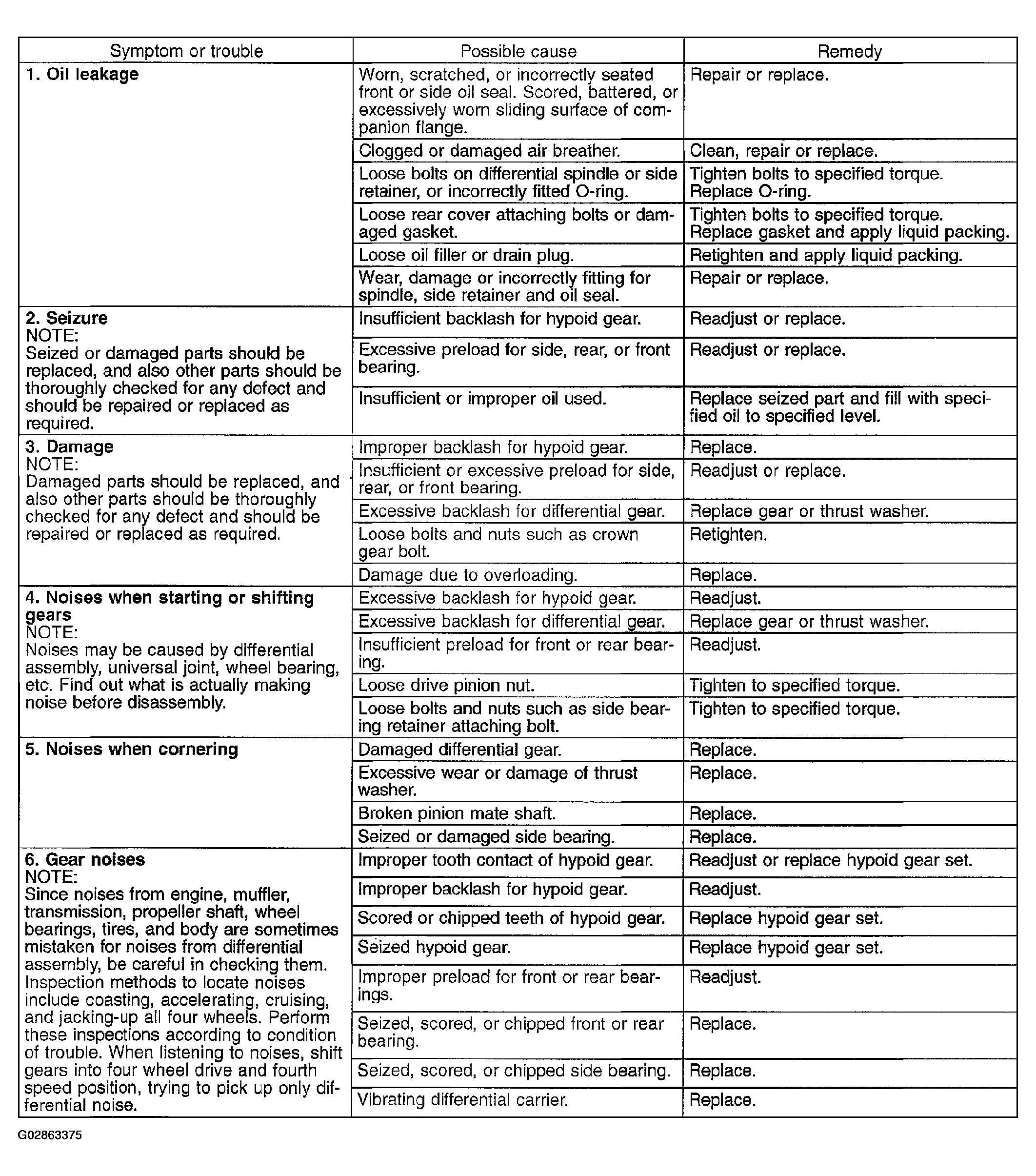

Fig 1: Identifying Symptom Chart

G02863375

Courtesy of SUBARU OF AMERICA, INC.
