Combination Meter: Speedometer: Specification

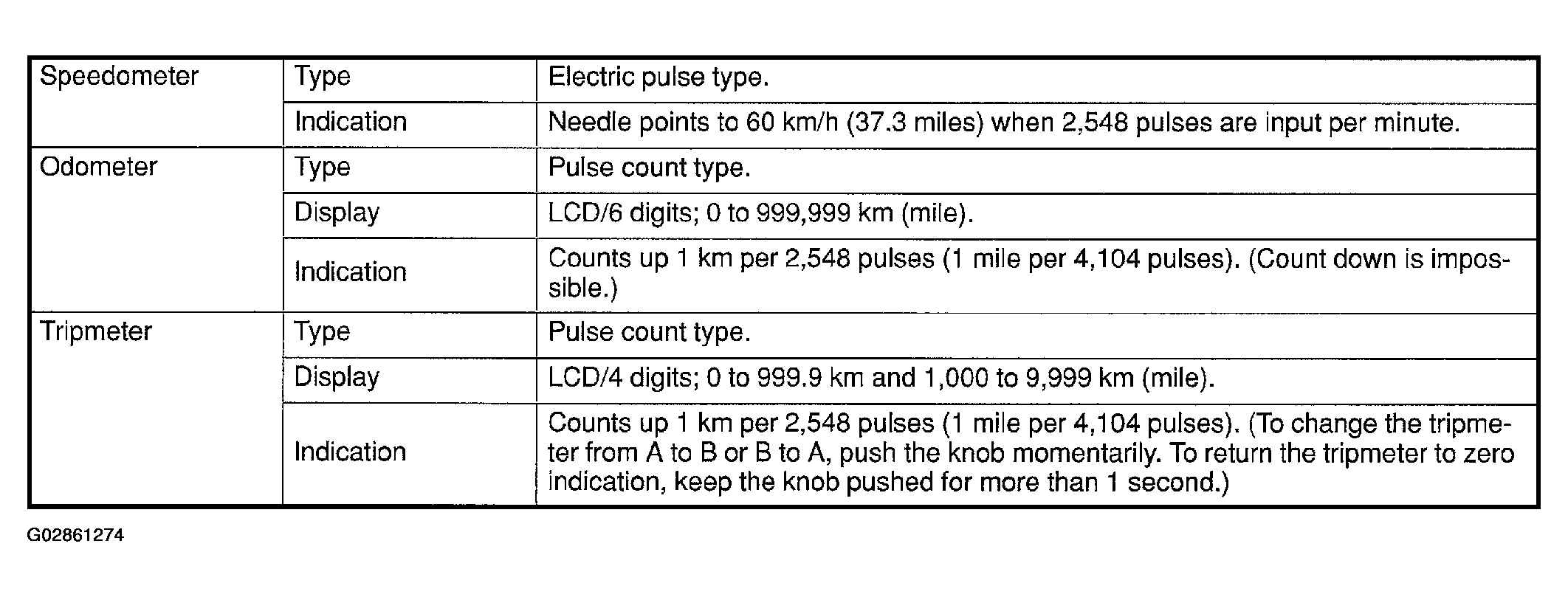

Fig 1: Speedometer System Specifications Chart
G02861274Courtesy of SUBARU OF AMERICA, INC.
