Instruments/Driver Info - Mechanism & Function
>>
Combination Meter
>>
Speedometer
>>
System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
System Diagram

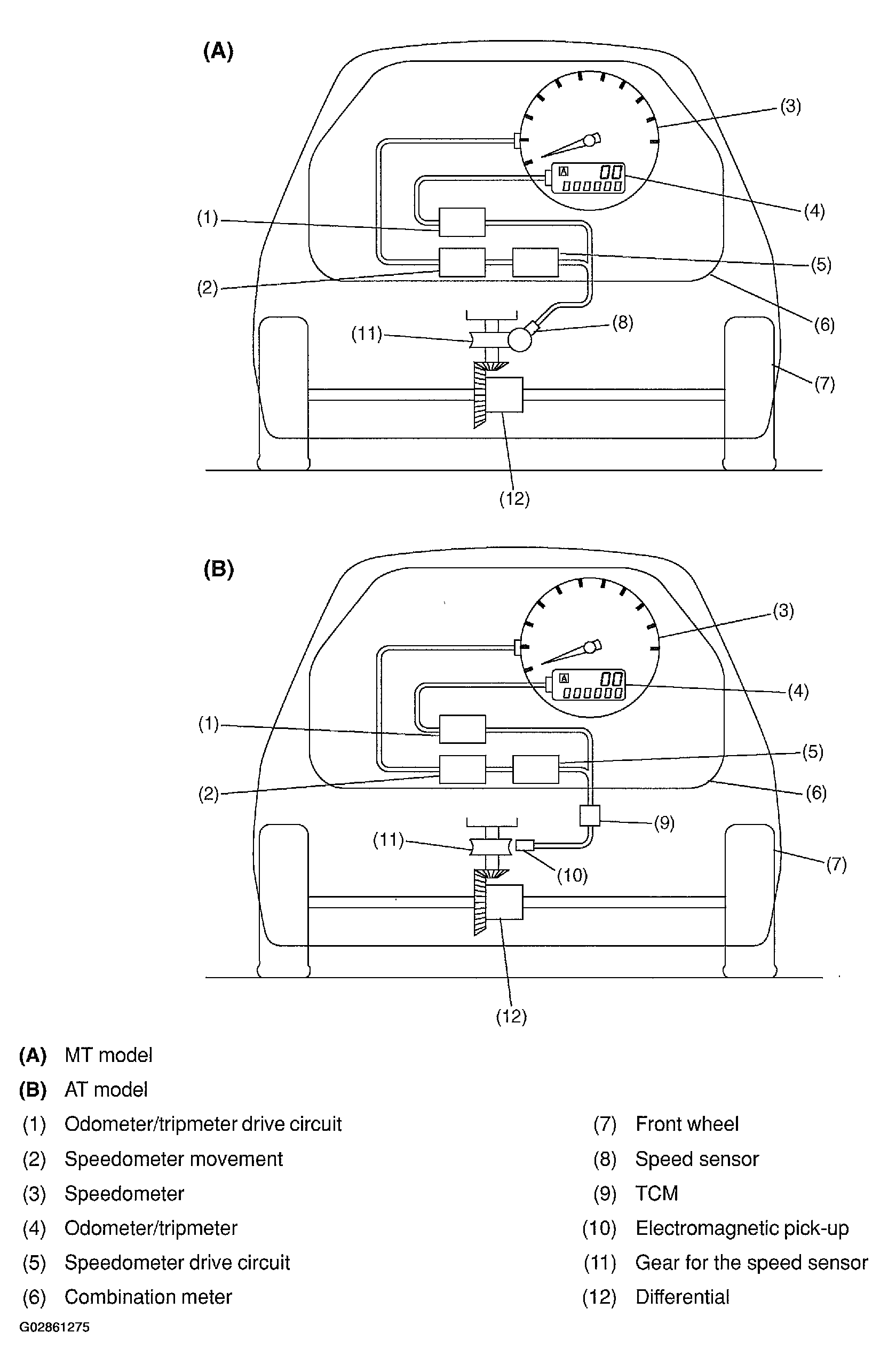

Fig 1: Identifying Speedometer System Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
