Radiator Main Fan System: Inspection

DETECTING CONDITION:

Condition:

• Engine coolant temperature is above 95 °C (203 °F).
• Vehicle speed is below 19 km/h (12 MPH).

  TROUBLE SYMPTOM:

• Radiator main fan does not rotate under the above conditions.

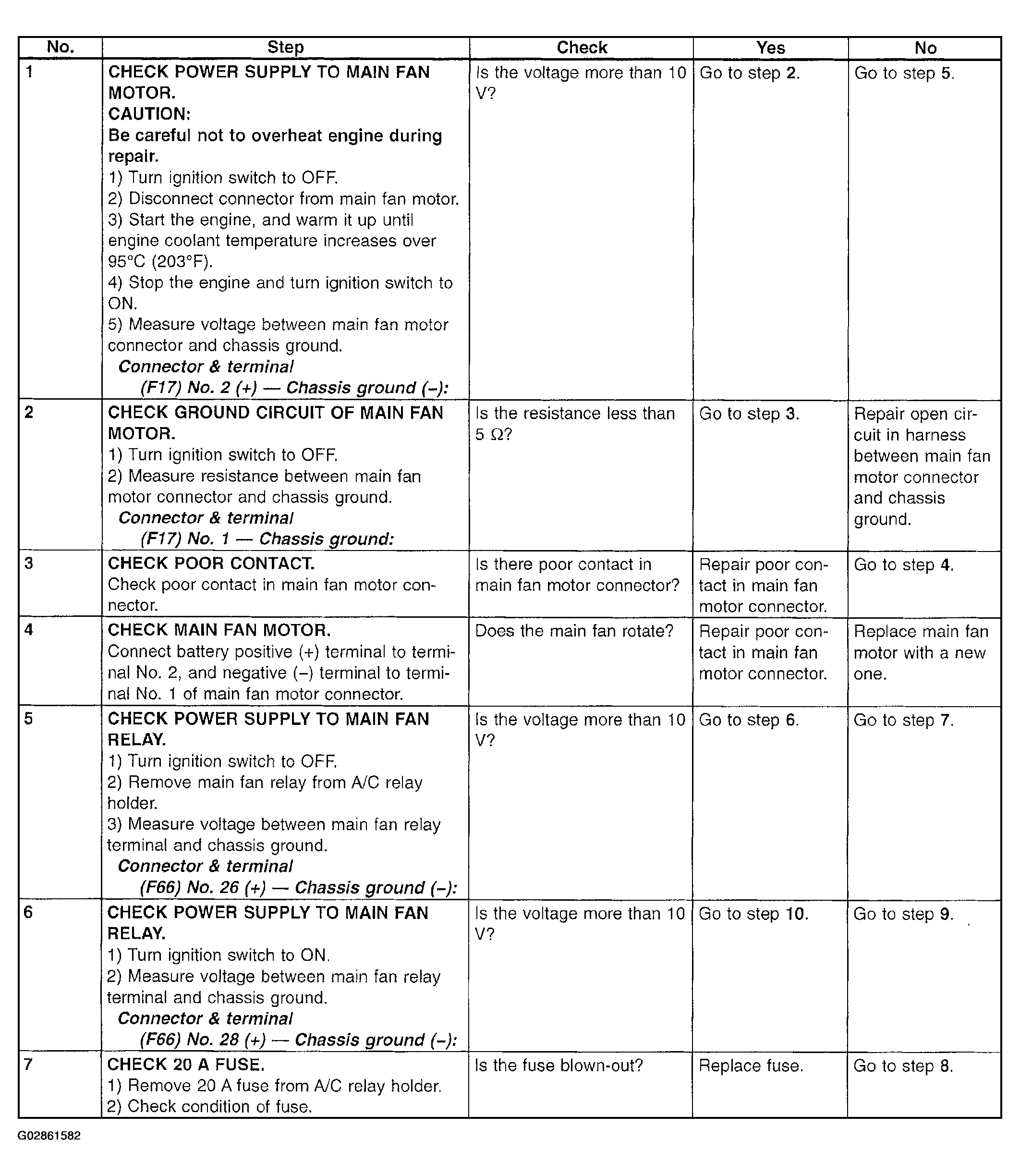

  Fig 1: Radiator Main Fan Not Rotating - Trouble Symptoms Diagnostic Chart (Steps 1-7)

  Courtesy of SUBARU OF AMERICA, INC.

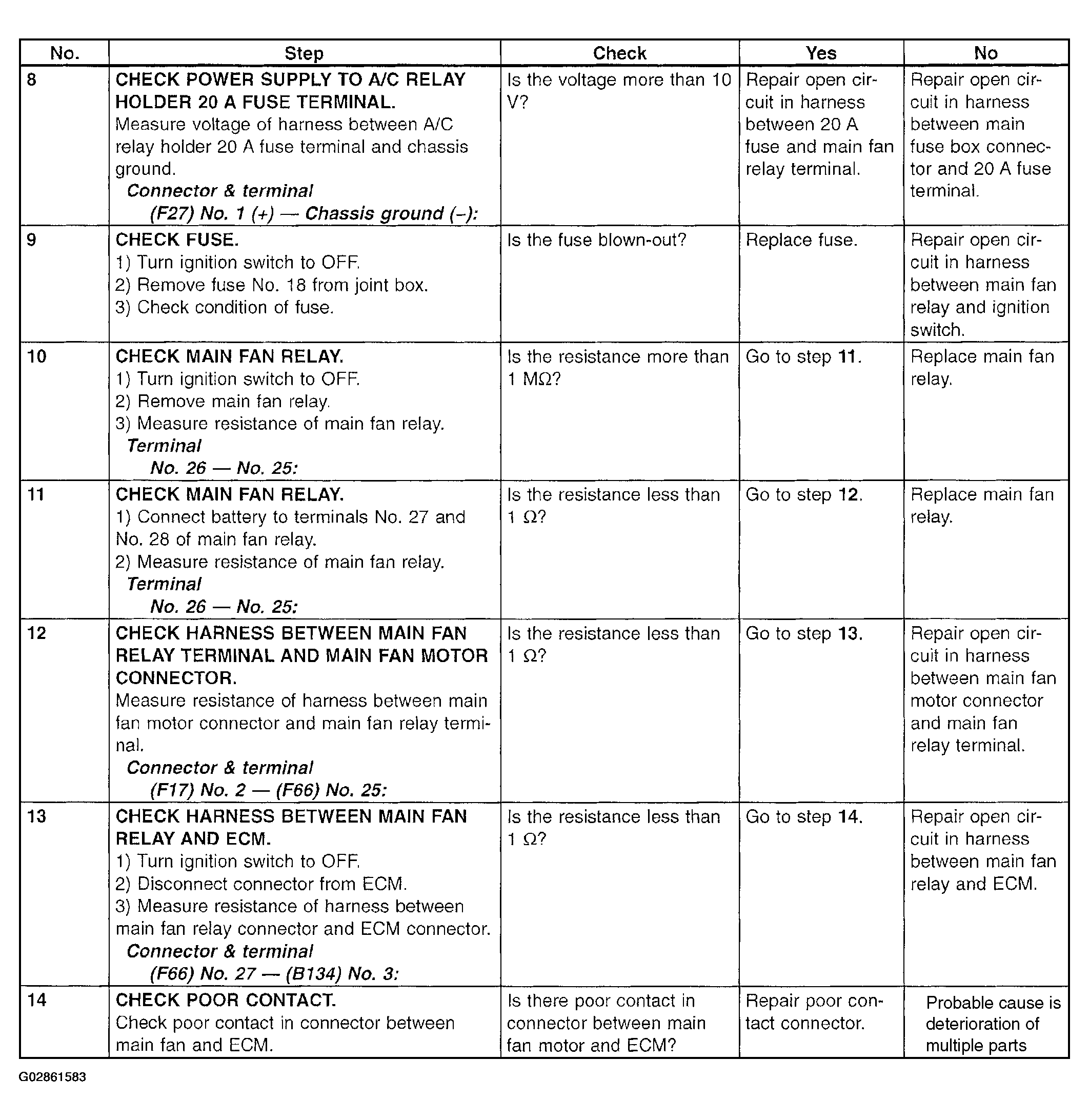

  Fig 2: Radiator Main Fan Not Rotating - Trouble Symptoms Diagnostic Chart (Steps 8-14)

  Courtesy of SUBARU OF AMERICA, INC.
