Radiator Main Fan System: Schematic

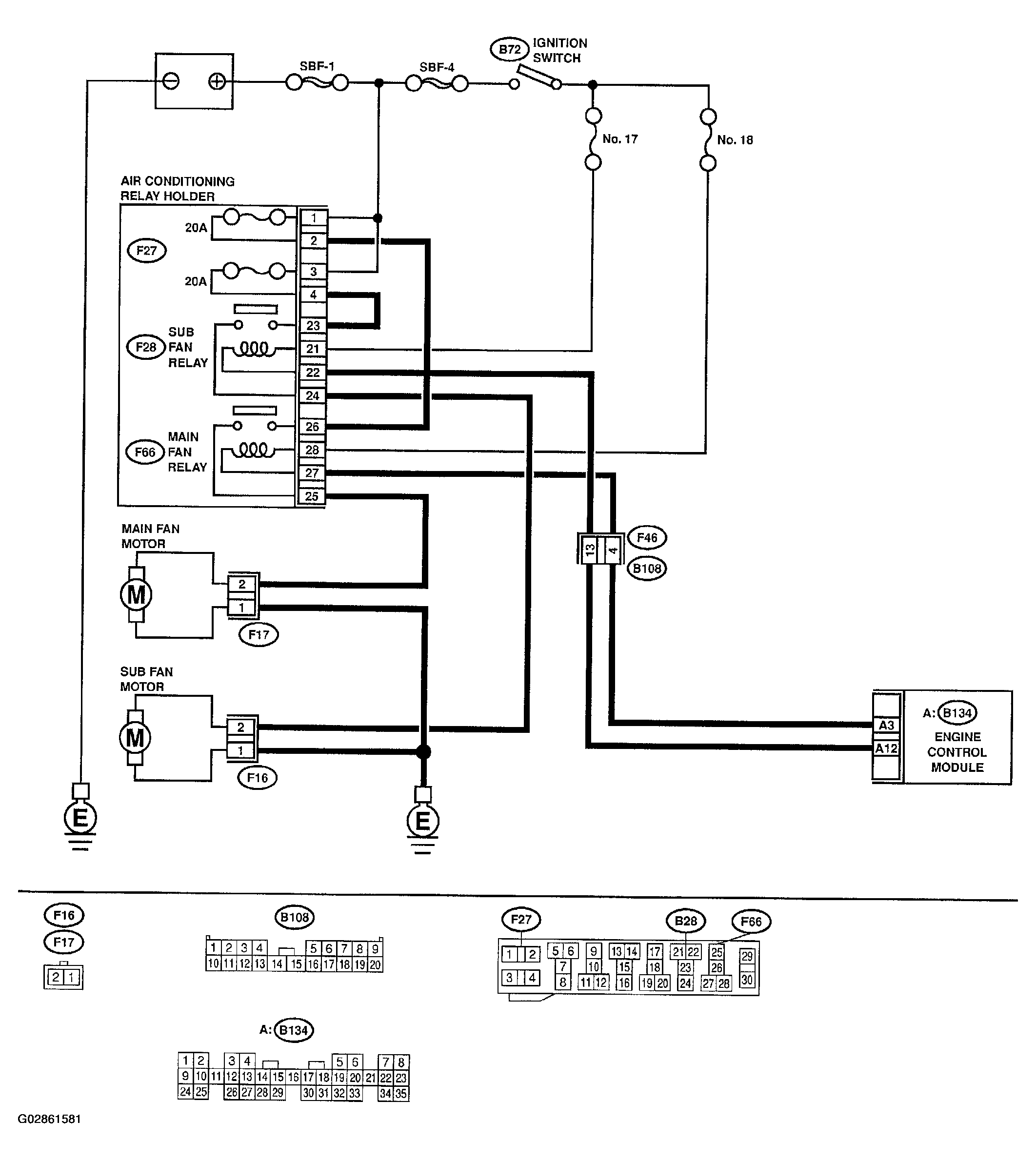

Fig 1: Radiator Main Fan System Schematic Diagram

G02861581

Courtesy of SUBARU OF AMERICA, INC.
