Engine Mechanical: Exhaust: Muffler: Installation

Install in the reverse order of removal.

NOTE: Replace gasket with a new one.

Tightening torque: 48 N.m (4.9 kgf-m, 35.4 ft-lb)

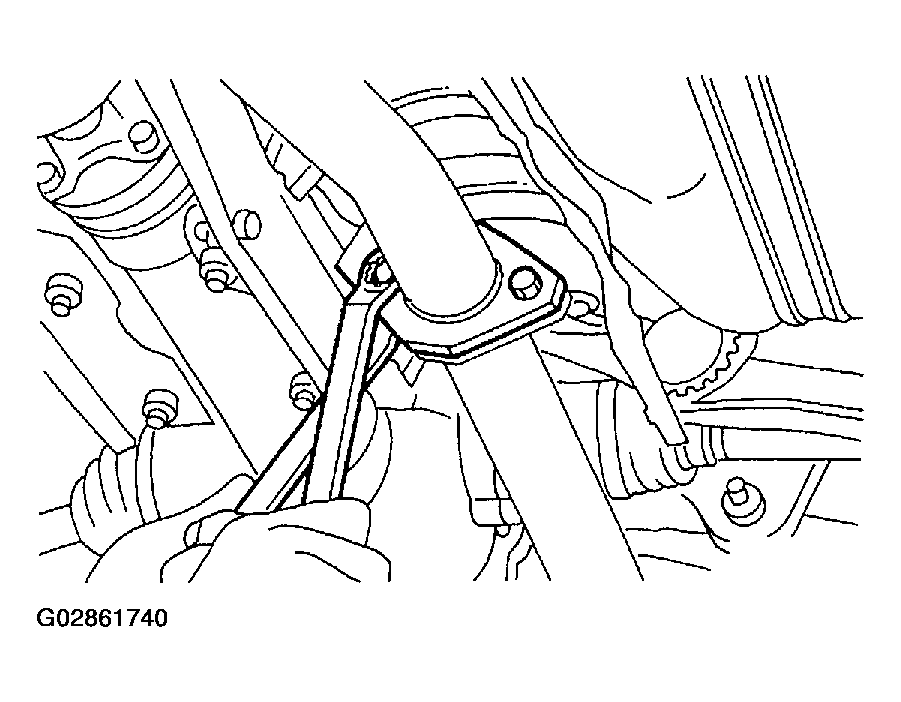

Fig 1: Installing Muffler To Rear Exhaust Pipe

G02861740

Courtesy of SUBARU OF AMERICA, INC.
