Oil Pressure System: Inspection

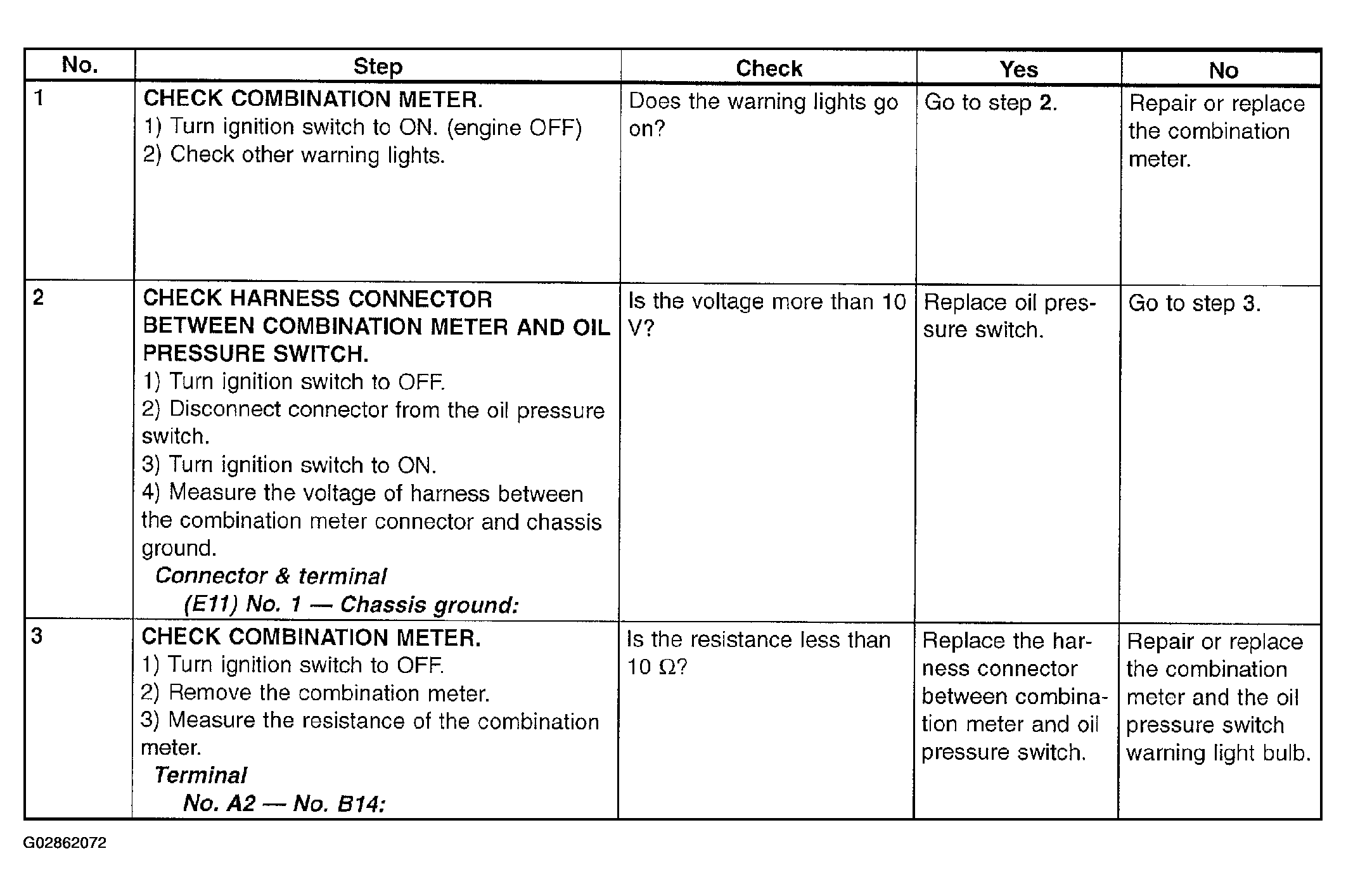

Fig 1: Combination Meter Inspection Procedure Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
