Headlight Bulb: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Because the halogen bulb operates at a high temperature, dirt and oil on the bulb surface reduces the bulb's service life. Hold the flange portion when replacing the bulb. Never touch the glass portion.
Do not leave the headlight without a bulb for a long time. Dust, moisture, etc. entering the headlight may affect its performance.

Disconnect the ground cable from battery.
Remove the air intake duct (when right side headlight is removed).
Disconnect the harness connector.
Remove the rubber cap.

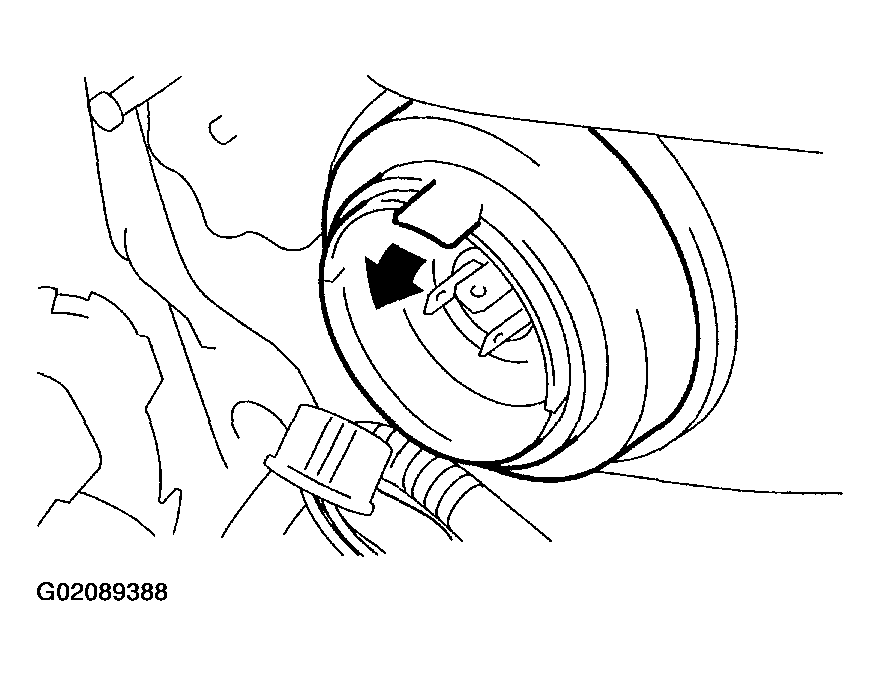

Fig 1: Removing Rubber Cap
Courtesy of SUBARU OF AMERICA, INC.
Remove the light bulb retaining spring to remove the bulb.

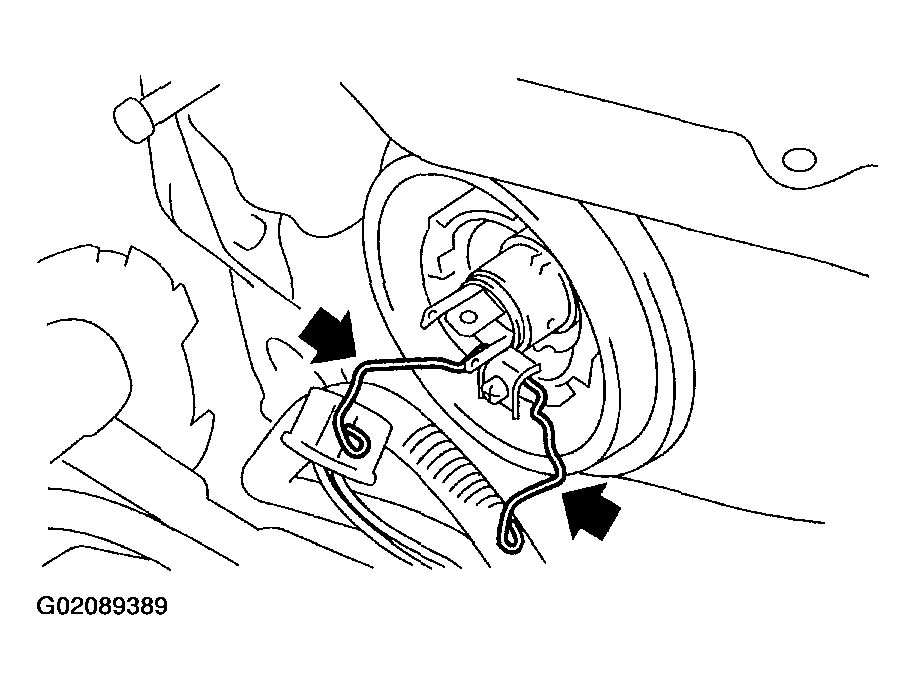

Fig 2: Removing Light Bulb Retaining Spring To Remove Bulb
Courtesy of SUBARU OF AMERICA, INC.
