Rear Combination Light Assembly: Removal

WARNING: This page is about a different car, the 2003 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the two bolts, and then turn the socket and disconnect cord assembly to remove rear combination light.

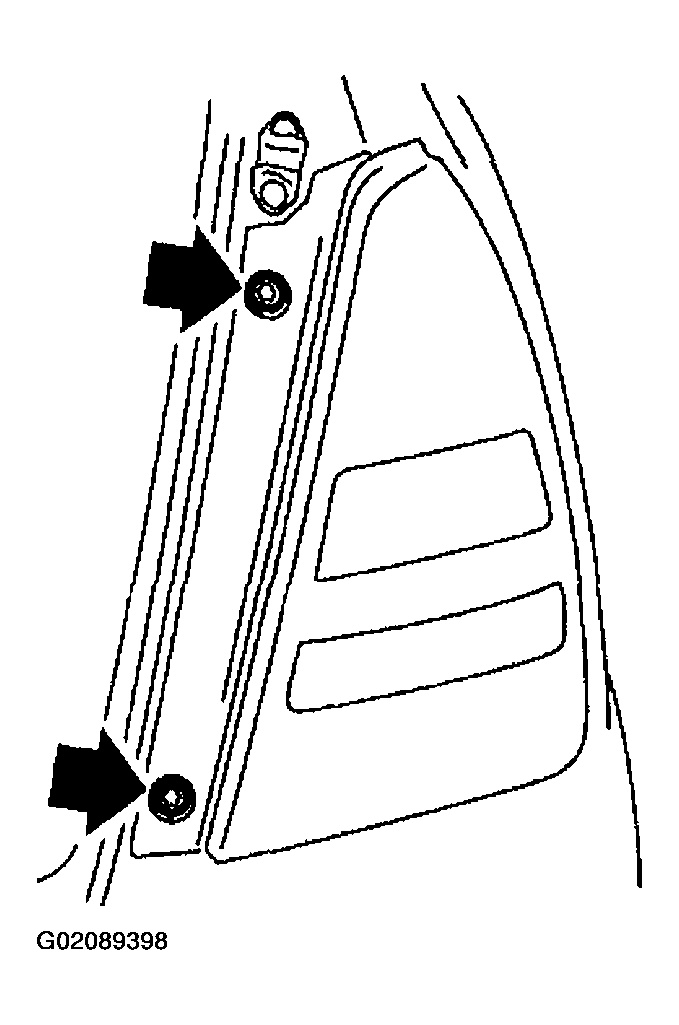

    Fig 1: Removing Bolts
    G02089398Courtesy of SUBARU OF AMERICA, INC.

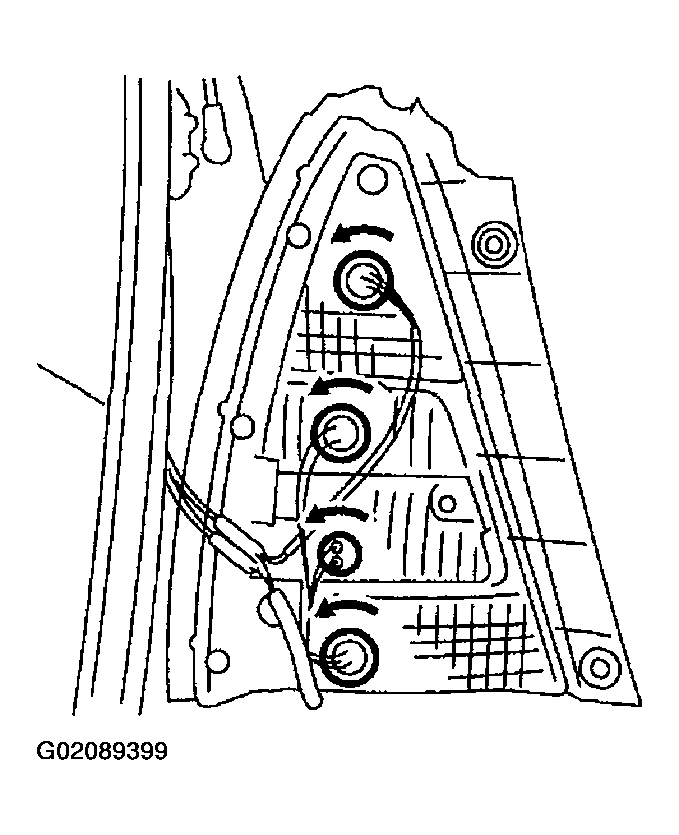

    Fig 2: Turning Socket & Disconnecting Cord Assembly
    G02089399Courtesy of SUBARU OF AMERICA, INC.
