Turbo Model

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Install the water pump onto cylinder block (LH).
NOTE:
- Replace the gasket with a new one.
- When installing the water pump, tighten bolts in two stages in alphabetical sequence as shown in the figure.
  Tightening torque:
  1. First: 12 N.m (1.2 kgf-m, 8.7 ft-lb)
  2. Second: 12 N.m (1.2 kgf-m, 8.7 ft-lb)

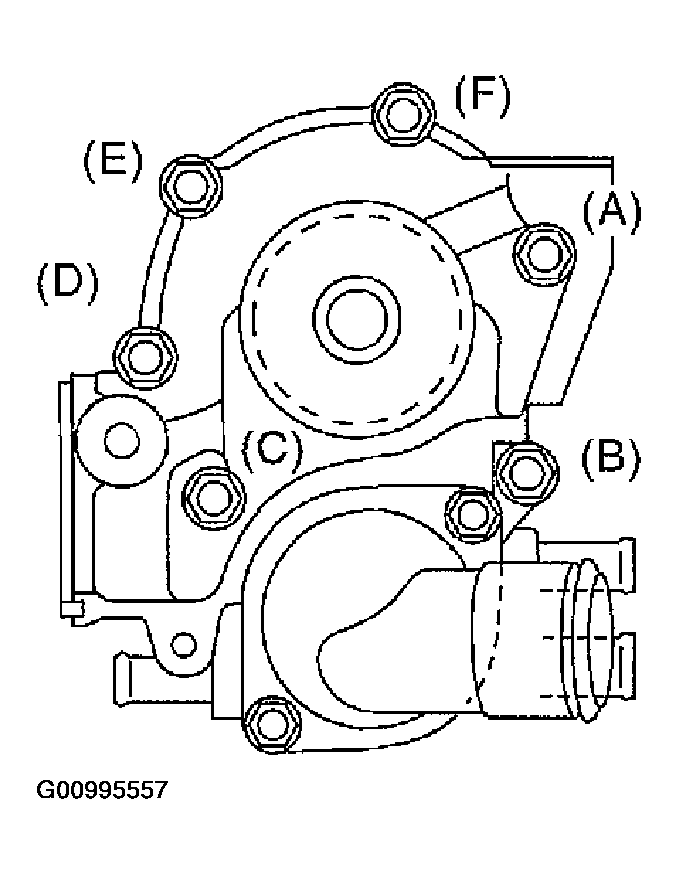

  Fig 1: Installing Water Pump Onto Cylinder Block
  Courtesy of SUBARU OF AMERICA, INC.
Connect the hose to water pump.
Install the tensioner bracket.
Tightening torque: 25 N.m (2.5 kgf-m, 18.1 ft-lb)

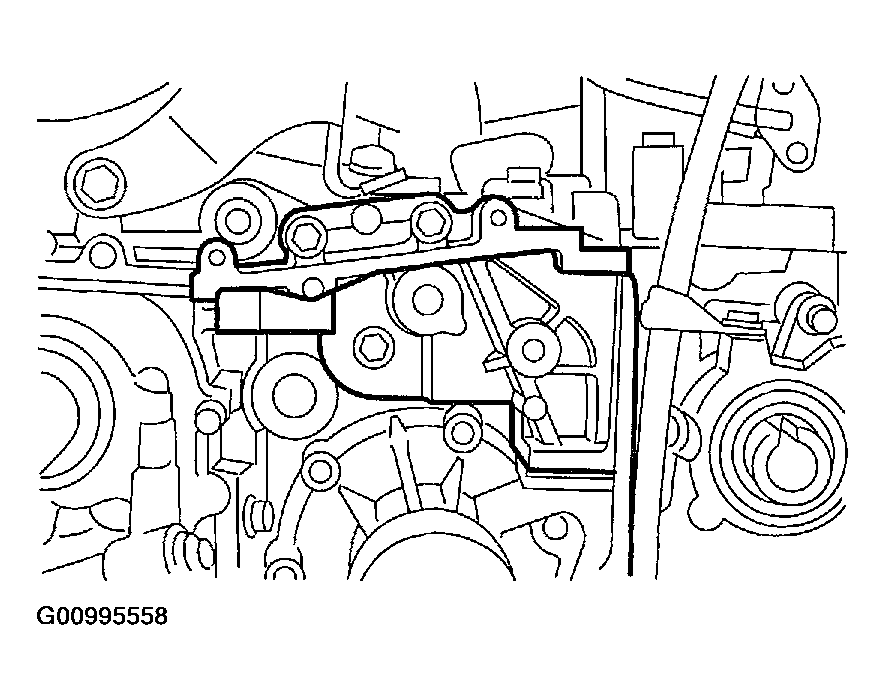

Fig 2: Installing Tensioner Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the belt cover No. 2 (LH).
Tightening torque: 5 N.m (0.5 kgf-m, 3.6 ft-lb)

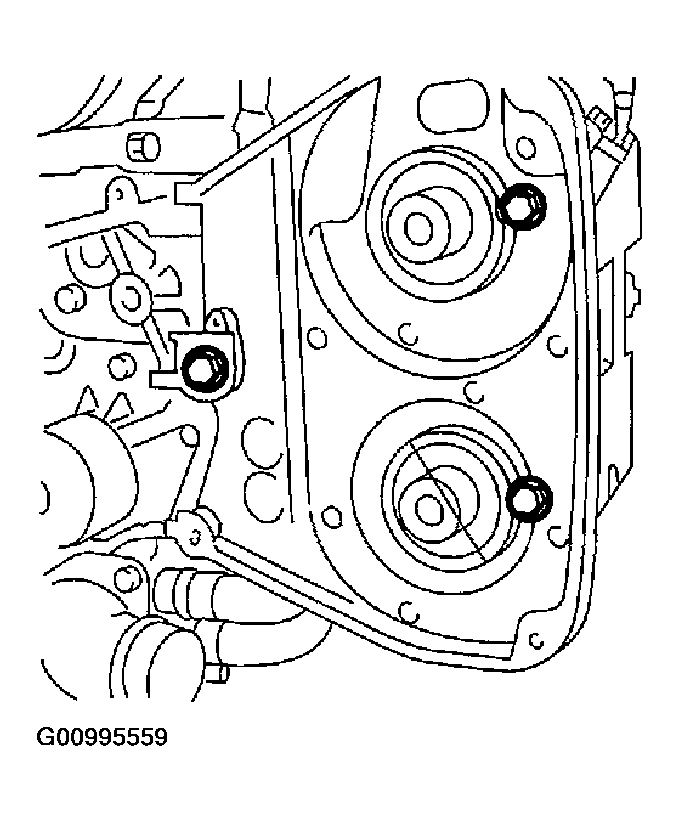

Fig 3: Installing Belt Cover No. 2 (LH)
Courtesy of SUBARU OF AMERICA, INC.
Install the cam sprockets (LH) by using ST. ST 499207400 CAM SPROCKET WRENCH
Tightening torque: 98 N.m (10.0 kgf-m, 72.4 ft-lb)

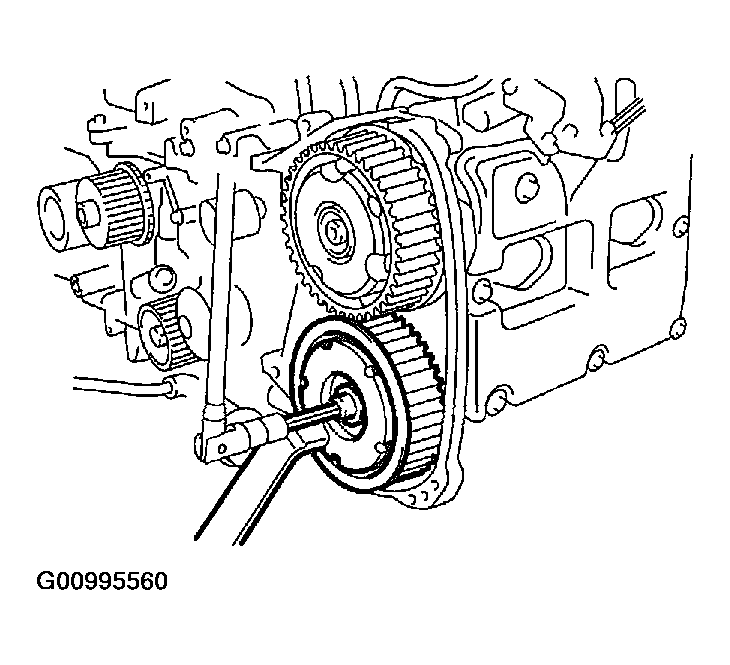

Fig 4: Installing Cam Sprockets (LH) Using ST
Courtesy of SUBARU OF AMERICA, INC.

ST 499977500 CAM SPROCKET WRENCH

Tightening torque: 29.5 N.m (3.0 kgf-m, 21.8 ft-lb), and then tighten 45° Furthermore

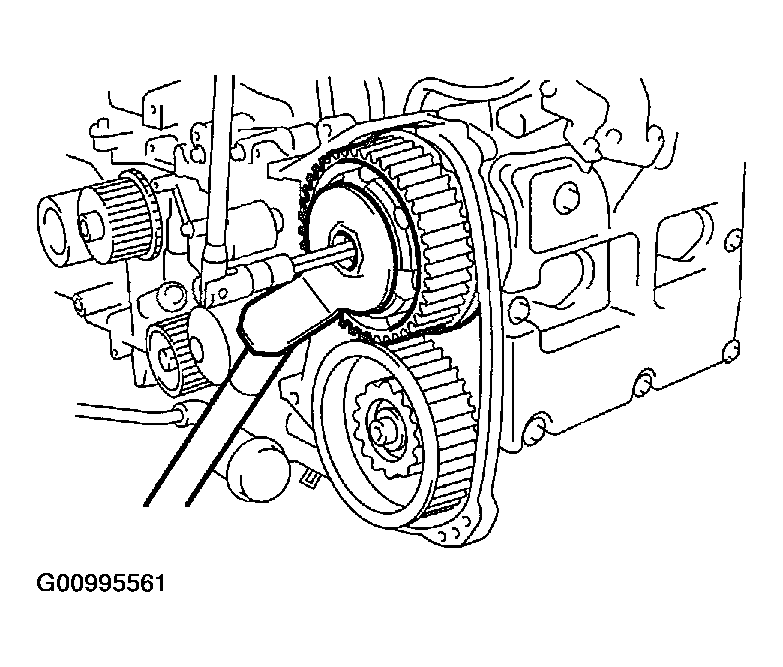

Fig 5: Tightening Cam Sprockets
Courtesy of SUBARU OF AMERICA, INC.
Install the camshaft position sensor. Refer to INSTALLATION , Camshaft Position Sensor.
Install the belt idler No. 2 (C).
Install the belt idler (B).
Install the automatic belt tension adjuster (A) which has tension rod held by pin. Refer to AUTOMATIC BELT TENSION ADJUSTER , INSTALLATION, Timing Belt Assembly.
Tightening torque: 39 N.m (4.0 kgf-m, 28.9 ft-lb)

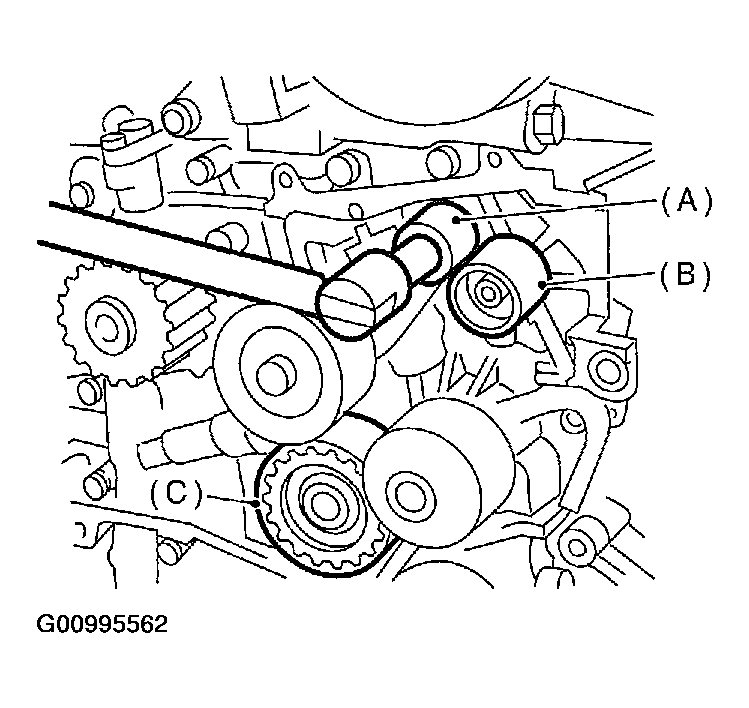

Fig 6: Installing Automatic Belt Tension Adjuster
Courtesy of SUBARU OF AMERICA, INC.
Install the timing belt. Refer to TIMING BELT ASSEMBLY INSTALLATION, Timing Belt Assembly.
Install the crank pulley. Refer to CRANK PULLEY INSTALLATION, Crank Pulley.
Install the V-belts. Refer to V-BELT INSTALLATION, V-belt.
Install the radiator. Refer to INSTALLATION , Radiator.
