Component Locations
WARNING: This page is about a different car, the 2002 Subaru Outback and 2002 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

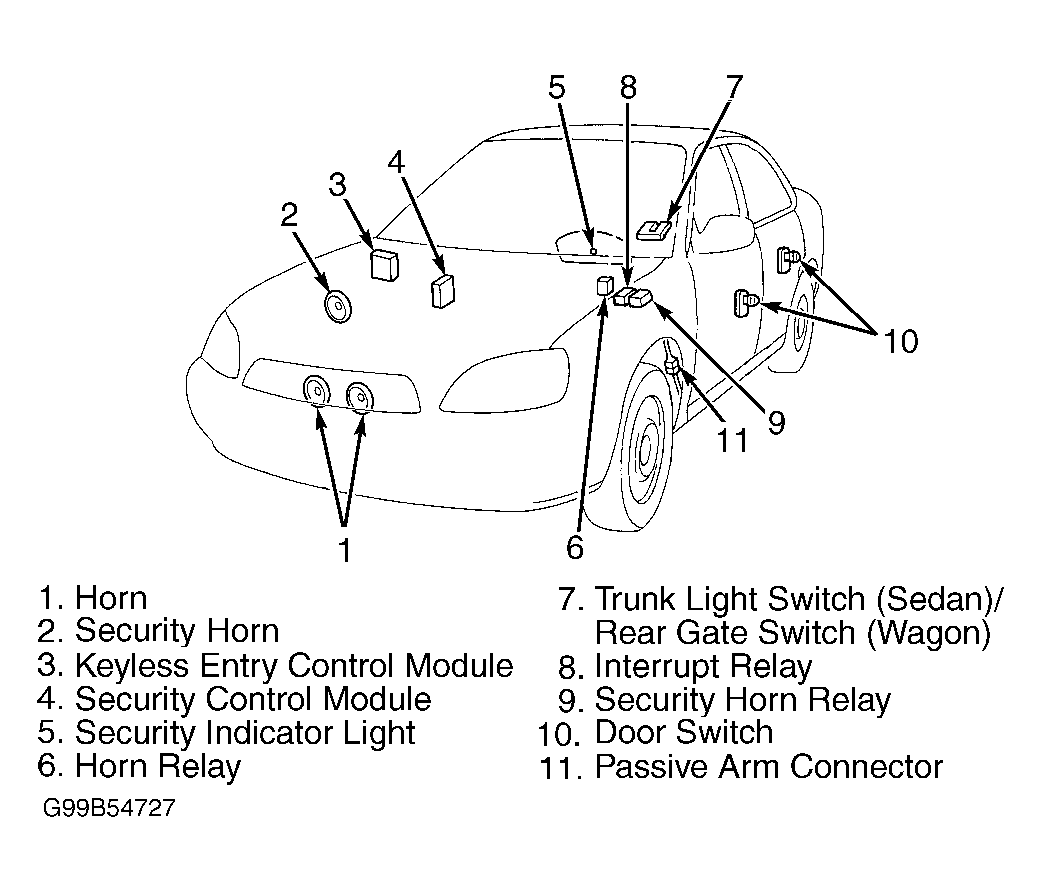

COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Headlight Alarm Relay | Behind Instrument Panel |
| Horns | In Front Of Radiator Frame |
| Horn Relay | In main fuse box under hood |
| Interrupt Relay | On Bracket To Left Of Main Fuse Box |
| Keyless Entry Control Module | Behind Right Side Of Dash |
| Main Fuse Box | Under hood, driver-side |
| Passive Arm Connector | Behind Driver's Door Sill |
| Security Control Module | Behind Center Console |
| Security Horn | Right Side of Engine Compartment |
| Security Horn Relay | On Bracket To Left Of Main Fuse Box |
| Security Indicator Light | On Left Side Of Instrument Panel |
| Security Switch | On Each Door/Rear Gate/Trunk Lock Assembly |
To locate other components, refer to COMPONENT LOCATIONS in POWER DOOR LOCKS & KEYLESS ENTRY SYSTEMS article.
