Front Hood Lock Assembly: Adjustment

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the bolt. Adjust the lock assembly while moving it up and down.

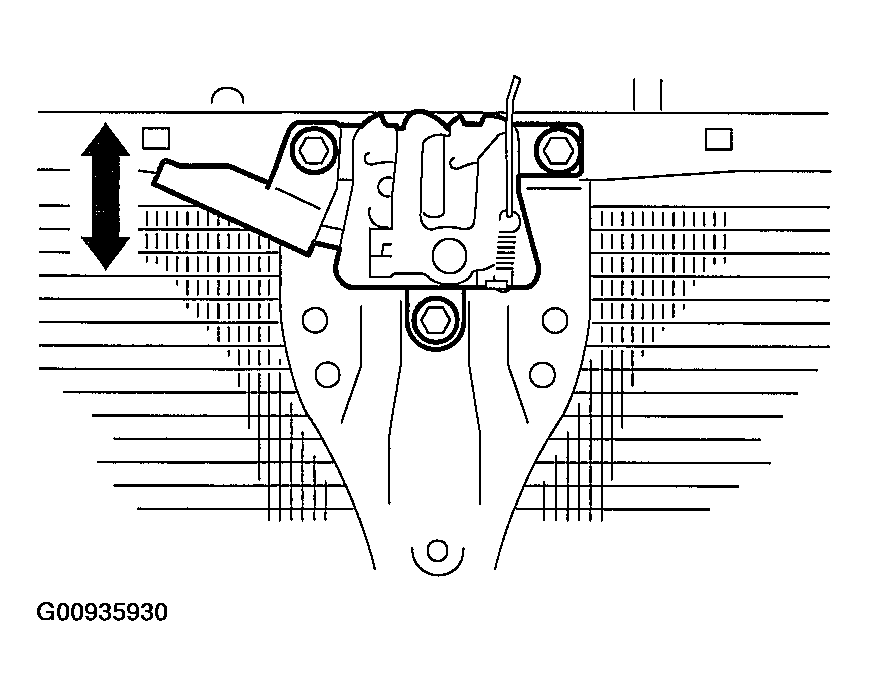

Fig 1: Loosening Bolt
G00935930Courtesy of SUBARU OF AMERICA, INC.
