Front Hood Lock Assembly: Removal

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the front grille.
  3. Remove the bolt. Remove the hood lock assembly.
  4. Remove the release cable from lock assembly.

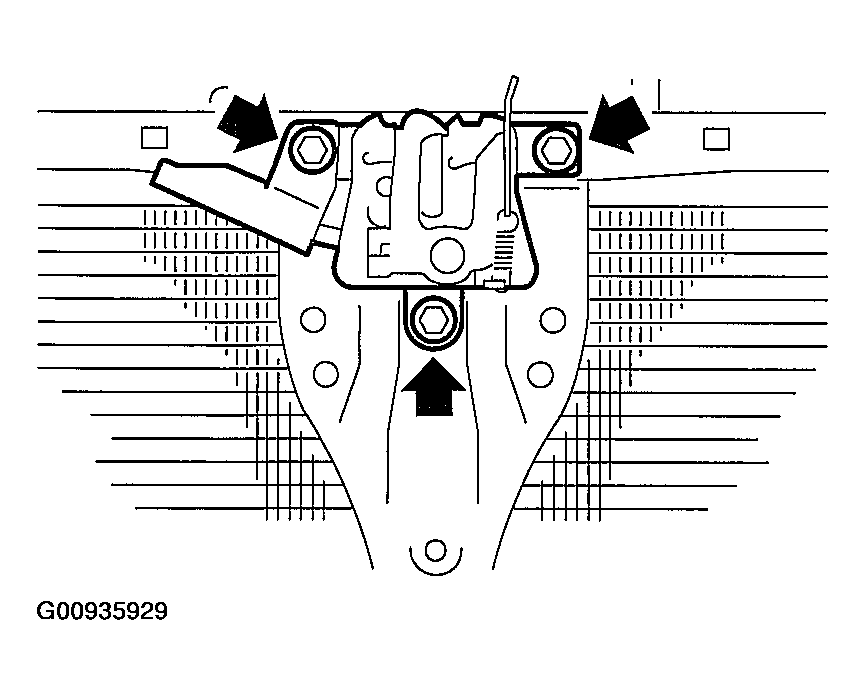

    Fig 1: Identifying Release Cable
    G00935929Courtesy of SUBARU OF AMERICA, INC.
