Clutch Switch: Adjustment

WARNING: This page is about a different car, the 2004 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen the clutch switch mounting lock nut (Starter interlock).

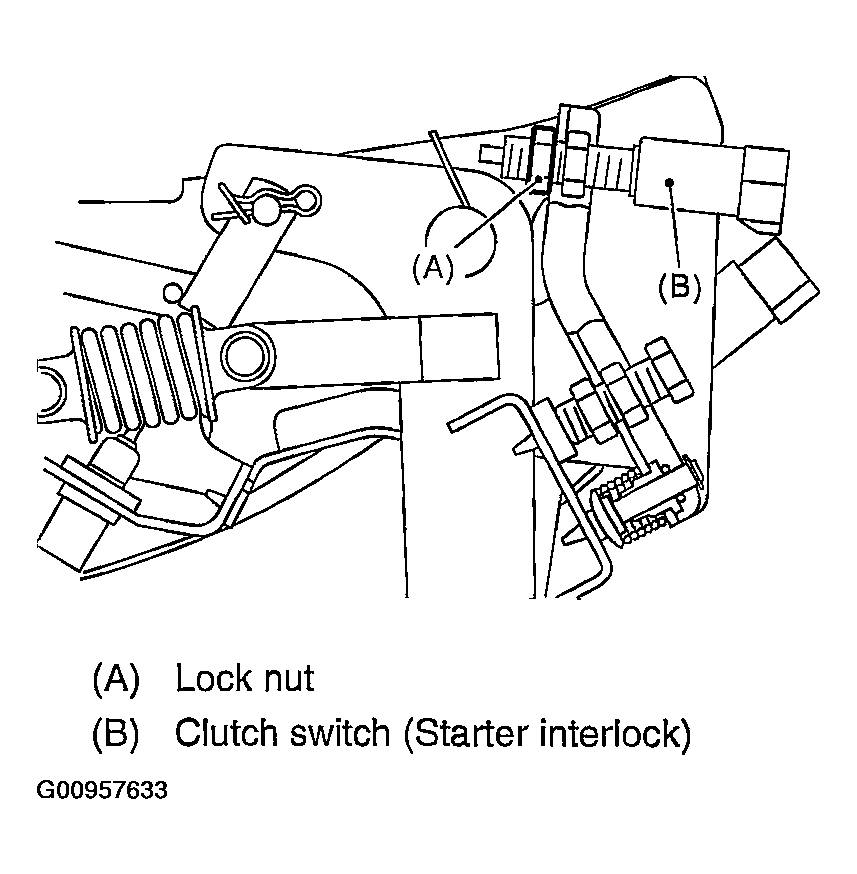

    Fig 1: Loosening Clutch Switch Mounting Lock Nut
    G00957633Courtesy of SUBARU OF AMERICA, INC.
  2. Fully depress the clutch pedal.
  3. Adjust the clutch pedal plate and clutch switch so that the gap between them is 3 - 3.5 mm (0.12 - 0.14 in).

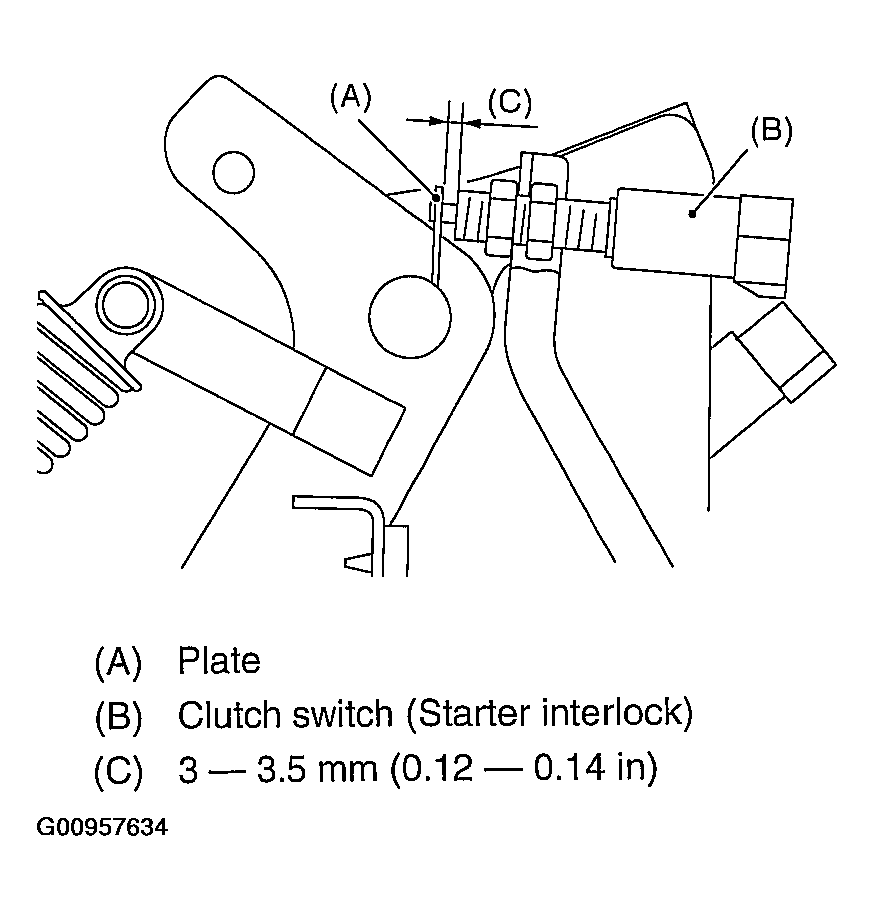

    Fig 2: Adjusting Clutch Pedal Plate & Clutch Switch
    G00957634Courtesy of SUBARU OF AMERICA, INC.
  4. Tighten the lock nut.

    Tightening torque:

    8 N.m (0.8 kgf-m, 13.0 ft-lb)
