Combination Switch (Light): Removal

WARNING: This page is about a different car, the 2004 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the instrument panel lower cover < Ref. to REMOVAL , Instrument Panel Assembly .>
  3. Remove the screws which secure upper column cover to lower column cover.
    Fig 1: Identifying Screws
    G03540528Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector from combination switch.
  5. Remove the screws which secure switch, and then remove the switch.

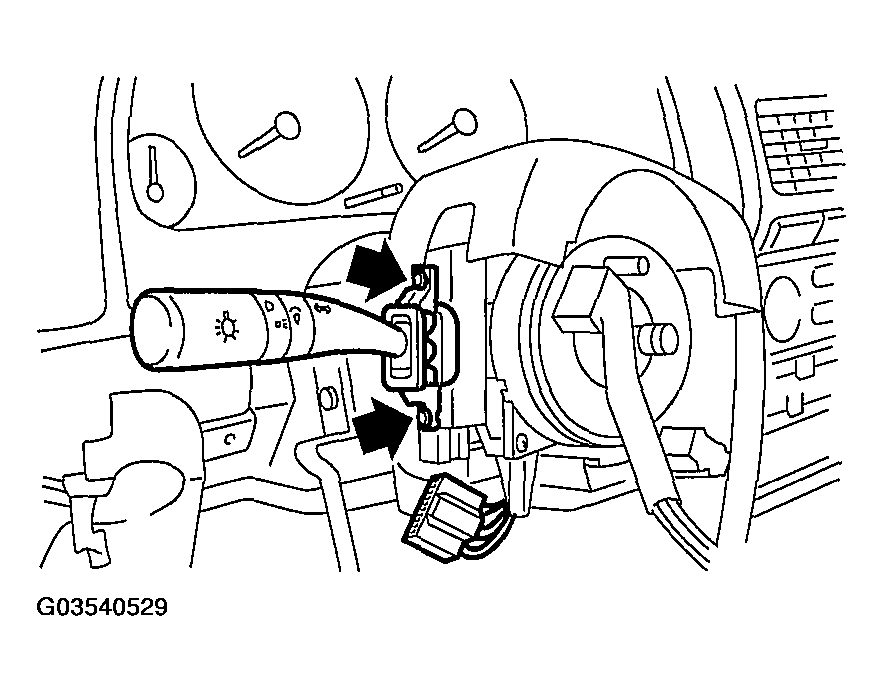

    Fig 2: Disconnecting Connector From Combination Switch
    G03540529Courtesy of SUBARU OF AMERICA, INC.
